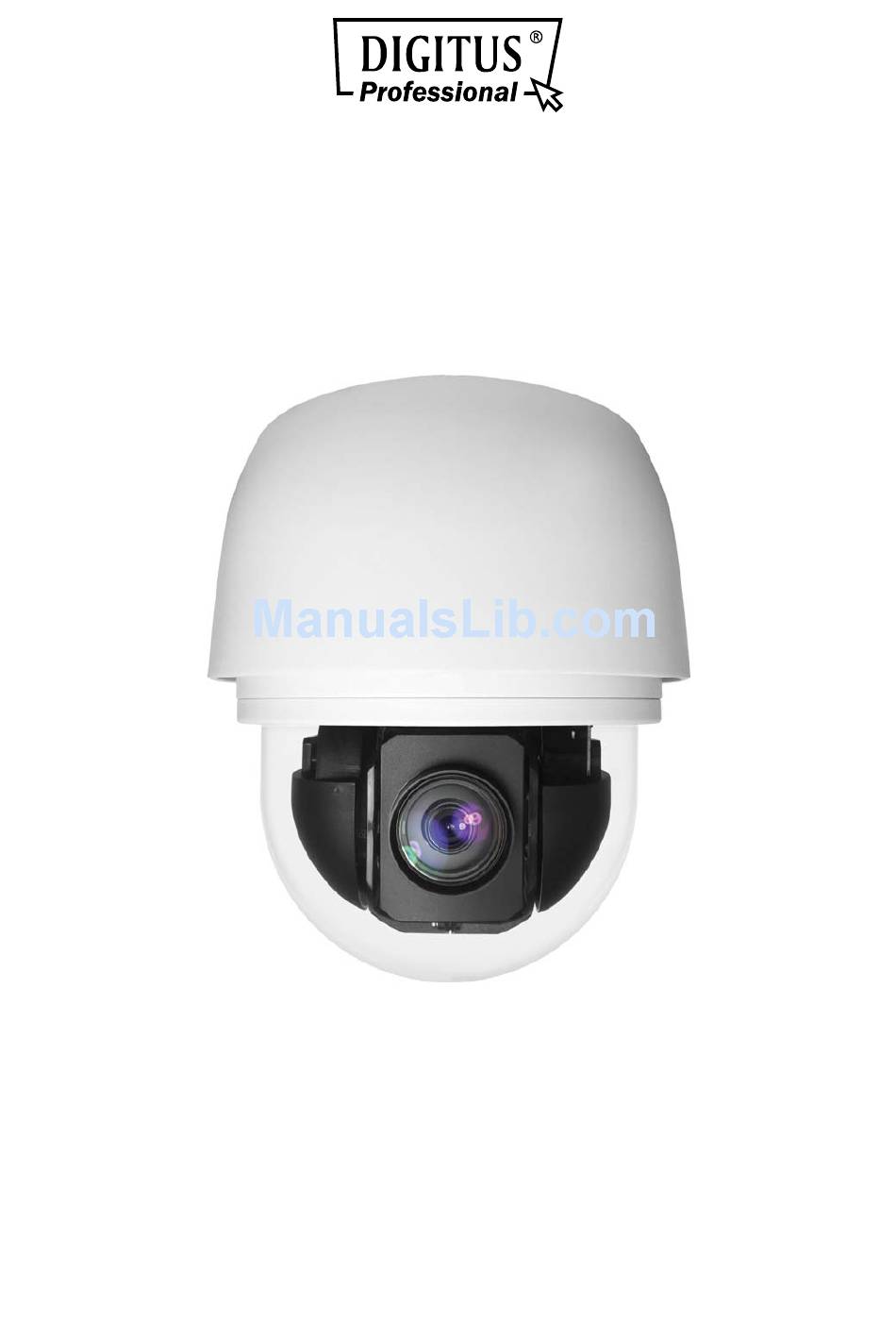

Page 1: Speed Dome Ip Camera

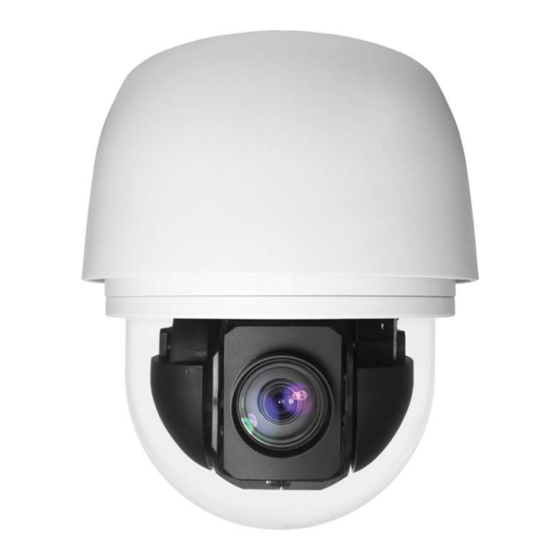

Full HD WDR Speed Dome IP Camera User’s Manual DN-16085-1 Ver. 1.0... -
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ......................3 Dimensions ........................4 Connectors ........................5 Camera Cabling ........................6 Power Connection ......................7 ... -
Page 3: Overview
Overview The Full HD WDR Speed Dome IP Camera (DN-16085-1) transmits digital video and audio data using wire connection. Live video can be monitored and recorded from window-based computer via network. The video encoder supports Real-time H.264 Full HD resolution. Simultaneous Quad Codecs, H.264 Baseline / Main / High Profile, MJPEG, are available for... -
Page 4: Package Contents
Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact the dealer for assistance. M3 Standard Screw (x1) M3 Security Screw (x1)* Full HD Speed Dome M5 Standard Screw (x1) IP Camera... -
Page 5: Dimensions
Dimensions... -
Page 6: Connectors
Connectors Refer to the diagrams below for the positions of the default button and various connectors of the camera. Definition of the default button and the connectors are given as follow. Connector Definition Alarm I/O Alarm I/O connection Press the button with one figure for at least 20 seconds Default Button to restore the system. -
Page 7: Camera Cabling
Camera Cabling For indoor models, please refer to the following sections to connect cables. For outdoor models, please read the notice below first, and then refer to the following sections for cable connections. Notice for Outdoor Model The outdoor models are being IP66-rated to prevent water from entering the camera. -
Page 8: Power Connection
Power Connection To power up the camera, connect the AC 24V power adaptor to the power connector of the camera and the power outlet. Please refer to the diagram and the pin definition table below for connection. Alternatively, users can use High Power over Ethernet (PoE+) to power up the camera if an IEEE 802.3at 60W PoE+ switch is available. -
Page 9: Alarm I/O Connection
Alarm I/O Connection The camera supports 4 digital alarm inputs and 2 digital alarm outputs. Please refer to the diagram and the pin definition tables below for alarm I/O connection. Definition Definition Alarm Out NO 1 Alarm Out COM 2 Alarm Out NC 1 Alarm Out COM 1 Alarm In 4... -
Page 10: System Requirements
System Requirements To perform the camera via web browser, please ensure the PC is in good network connection, and meet the system requirement as described below. Items Minimum Requirement 1. Intel® Pentium® IV, 3 GHz or higher, Intel® Core2 Duo, 2 GHz or higher Personal Computer 2. -
Page 11: Access Camera
Access Camera For initial access to the camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “Device Search” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 12 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password admin admin NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 13 Zoom and Focus Adjustment The live image will be displayed on the Home page when the camera is successfully accessed. If zoom or focus is not at the desired position, please use the function buttons on the Home page for adjustment. Refer to the Camera’s Web UI Manual in the supplied CD for more details about the function buttons.
-
Page 14: Setup Video Resolution
Setup Video Resolution Users can setup video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default value of the video resolution is as below. H.264 1920 x 1080 (30 fps) + H.264 720 x 480 (30 fps) For more details about the combinations of video resolution, please refer to the Camera’s Web UI Manual in the supplied CD. -
Page 15: Appendix B: Delete The Existing Dc Viewer
Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please remove the existing DC Viewer from the PC before accessing to the IP camera. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 16: Appendix C: Setup Internet Security
Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...
