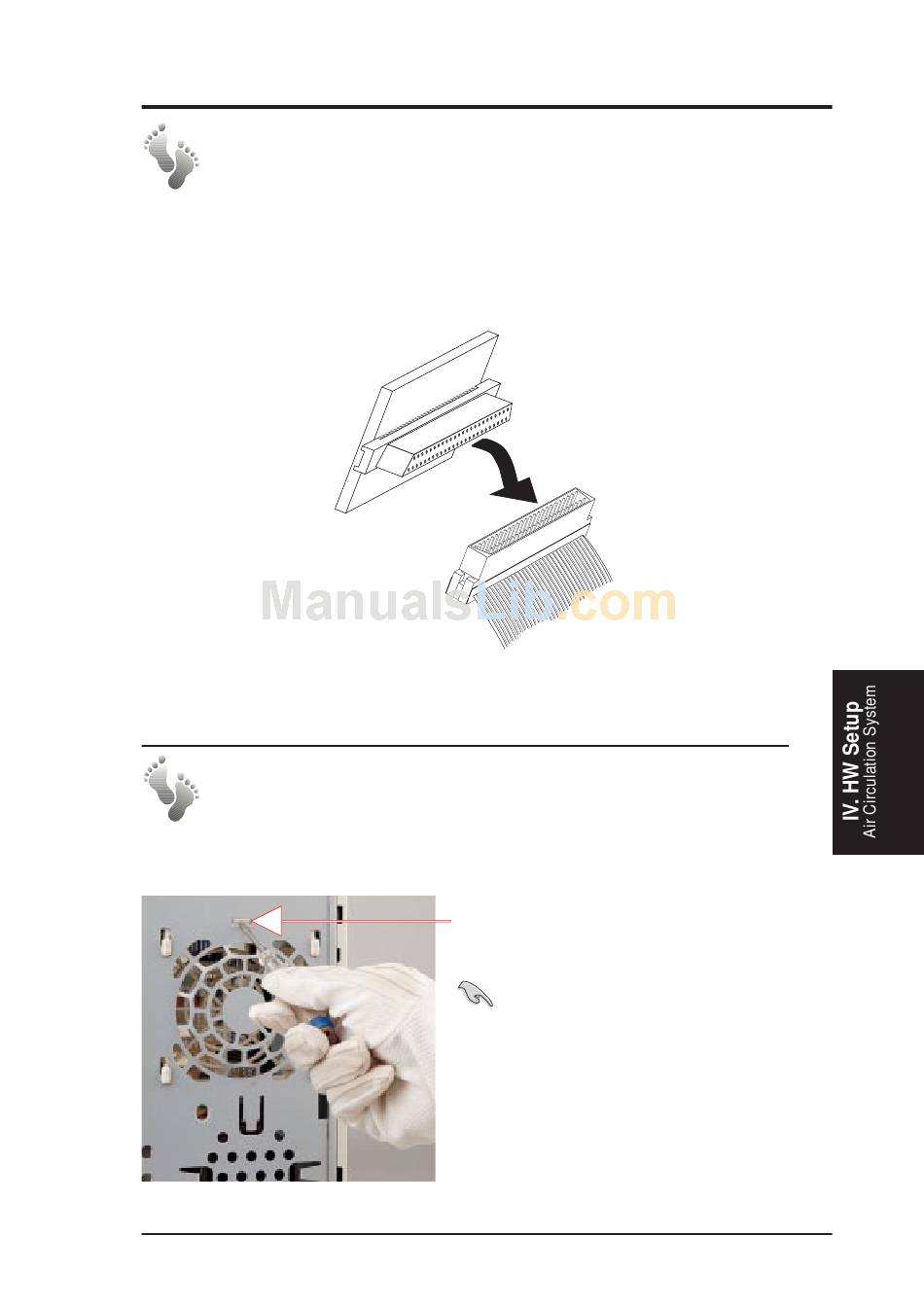

External SCSI Terminator

In order to prevent SCSI signal loss, the provided external SCSI terminator

must be used at the end of the 68-pin SCSI cable. 50-pin SCSI cables may

also use terminators but usually use termination jumpers on the device it-

self. All termination jumpers must be removed when using the external SCSI

terminator.

The front and rear fans are both secured by plastic housings. The fan hous-

ings can be removed by pressing in the clip and sliding the housing upward.

AP200 Hardware Reference Guide

Press the clip with a screwdriver to

release.

IMPORTANT: When replac-

ing the fans, be sure that both fans

rotate in the same direction. Use the

manufacturer's sticker on one side

of the fan as a reference. The air

should flow from the rear of the

chassis to the front of the chassis.
