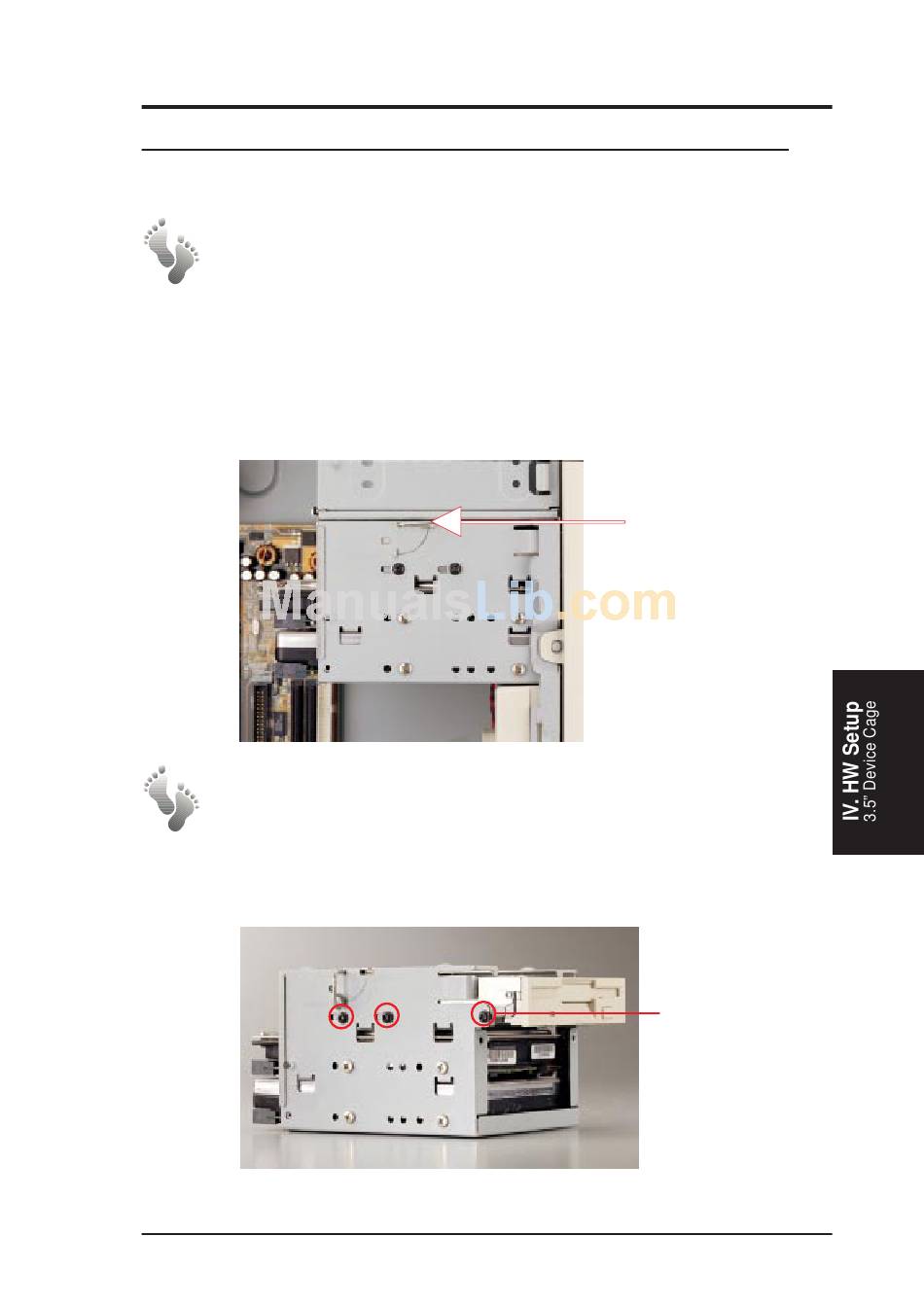

4-3. 3.5" Device Cage

Before hard or floppy disk drives can be installed or removed from the 3.5"

device cage, you must remove the device cage from the chassis.

1. Remove the stabilizing link bar, if not already removed.

2. Rotate the locking lever clockwise using a screwdriver inserted from the

top of the lever. (You must pull the lever outward first before turning it.)

3. Slide backward to remove the 3.5" device cage.

To mount the 3.5" device cage, use the reverse procedure. (Locking the

lever is possible with your fingers.)

Unlocking the 3.5" device cage

The 3.5" device cage has a slot and three screw holes on each side for a 3.5"

floppy device on the top most space. The floppy must be aligned so that the

first hole matches.

1.44MB Floppy Disk Drive Mounted in the 3.5"

Device Cage

AP200 Hardware Reference Guide

Locking

Lever

Align this

Hole.
