IV. Hardware Setup

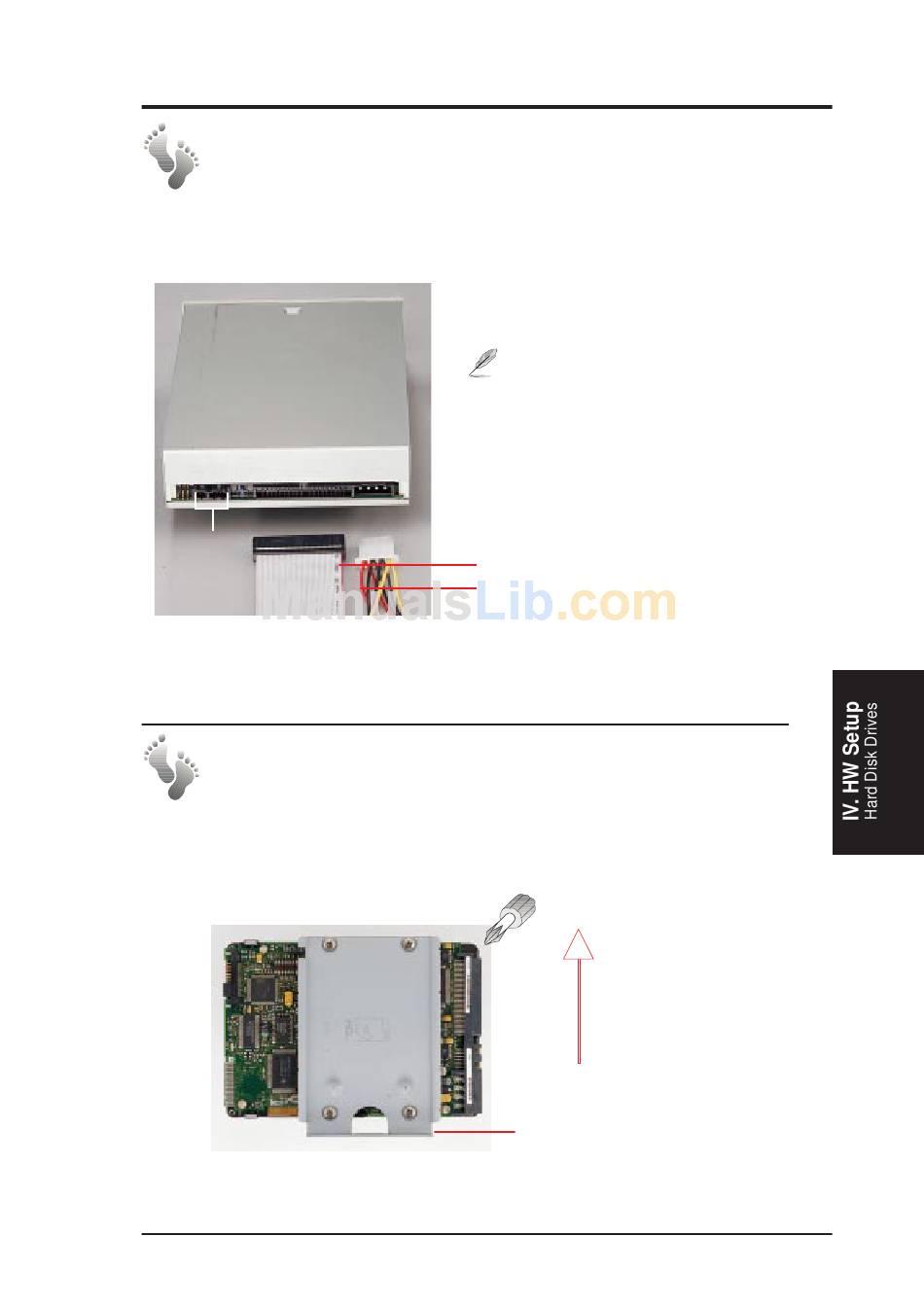

CD-ROM Drive Mounting and Connections

The CD-ROM disk drive mounts only in the 5.25" device cage and requires
signal and power connections. The red stripe of the signal and power cables
should face each other.
CD
Audio
Output
CD-ROM Drive Connections

4-5. Hard Disk Drives

Hard Disk Drive Carrier Plate

A carrier plate on top of the power supply is used to hold an one-inch hard
disk drive. Screw the underside of the hard disk drive on the bottom of the
carrier plate as shown.
Hard Disk Drive Mounted on the
Carrier Plate
AP200 Hardware Reference Guide
NOTE: A CD-ROM audio cable is
also provided in case you install an au-
dio card. The only function of the audio
cable is to allow you to direct the CD
audio out signal to your audio card. Data
signals travel through the IDE cable.
Red Stripe of the Signal Cable
Red Stripe of the Power Cable
The carrier slides into the
chassis in this direction.
The handle faces upward.
23
