IV. Hardware Setup

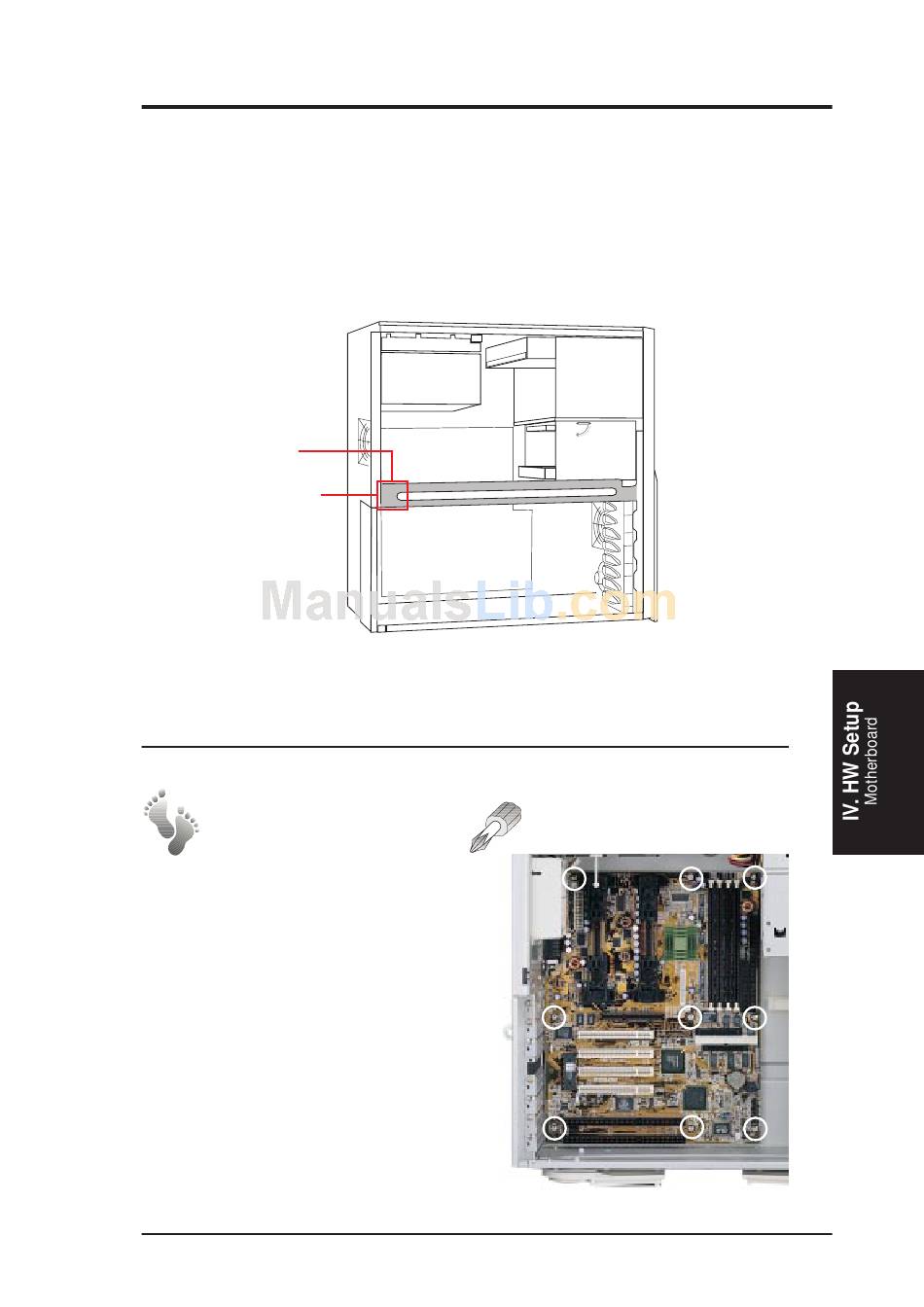

Stabilizing Link Bar

The stabilizing link bar needs to be removed in order to access the mother-

board or remove the 3.5" device cage. To remove the stabilizing link bar,

grasp the bar at the back end with the right hand and with the right thumb

press the back of the chassis towards your fingers (or using the palm of your

left hand, press on the back of the chassis). The bar then releases from the

latch and swings outward.

Grab here and pull

the bar outward.

Press here with your

thumb or other hand.

Chassis Side Interior

Read the motherboard User's Manual for details.

Screw the motherboard as circled. Be

careful not to overtighten the screws. Do-

ing so may damage your motherboard.

Motherboard in the Chassis
