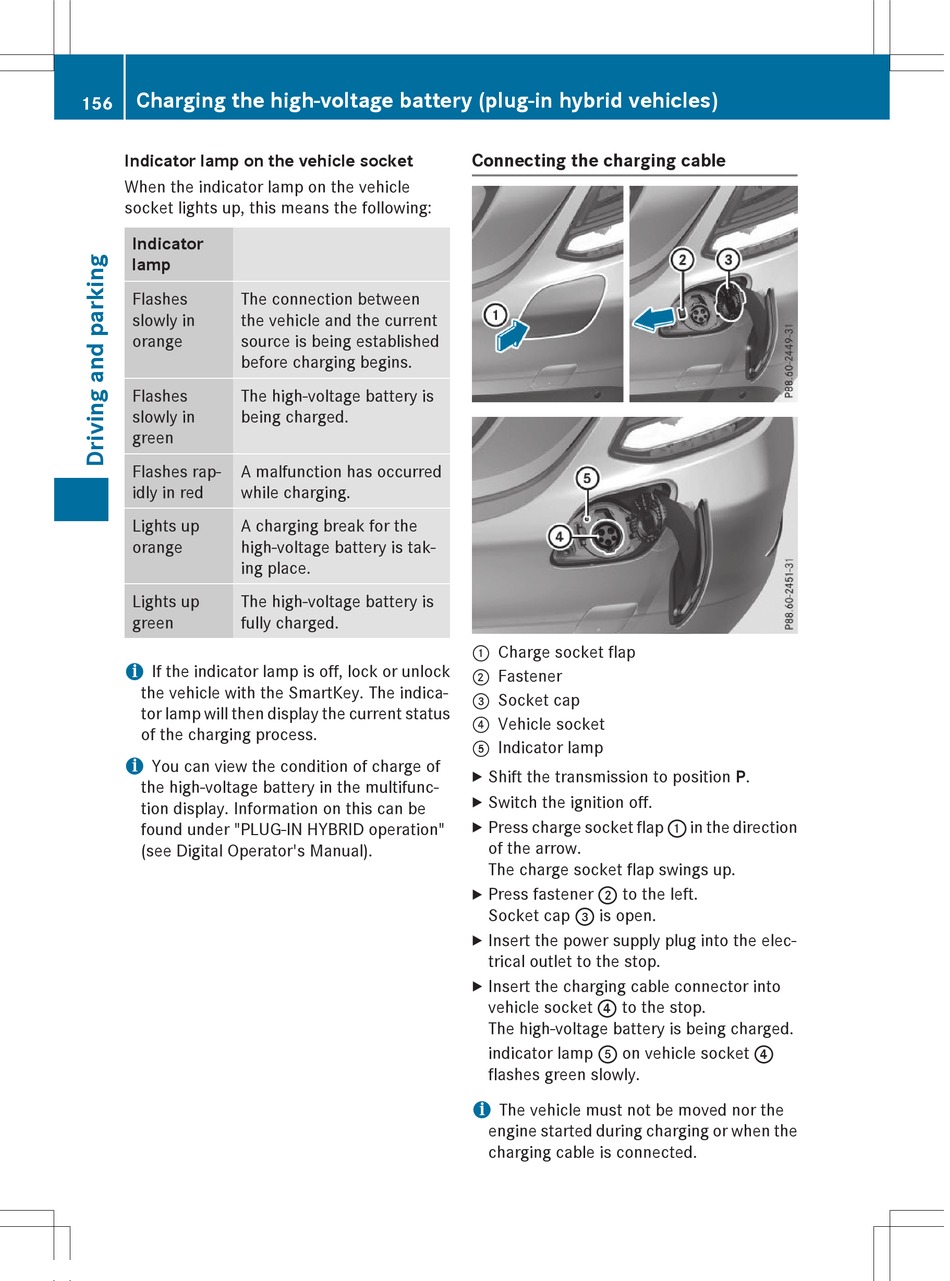

Mercedes-Benz C-Class Operator's Manual page 158

Charging the high-voltage battery (plug-in hybrid vehicles)
156
Indicator lamp on the vehicle socket
When the indicator lamp on the vehicle
socket lights up, this means the following:
Indicator
lamp
Flashes The connection between
slowly in the vehicle and the current
orange source is being established
before charging begins.
Flashes The high-voltage battery is
slowly in being charged.
green
Flashes rap- A malfunction has occurred
idly in red while charging.
Lights up A charging break for the
orange high-voltage battery is tak-
ing place.
Lights up The high-voltage battery is
green fully charged.
If the indicator lamp is off, lock or unlock
i
the vehicle with the SmartKey. The indica-
tor lamp will then display the current status
of the charging process.
You can view the condition of charge of
i
the high-voltage battery in the multifunc-
tion display. Information on this can be
found under "PLUG-IN HYBRID operation"
(see Digital Operator's Manual).
Connecting the charging cable
Charge socket flap
:
Fastener
;
Socket cap
=
Vehicle socket
?
Indicator lamp
A
Shift the transmission to position P.
X
Switch the ignition off.
X
Press charge socket flap : in the direction
X
of the arrow.
The charge socket flap swings up.
Press fastener ; to the left.
X
Socket cap = is open.
Insert the power supply plug into the elec-
X
trical outlet to the stop.
Insert the charging cable connector into
X
vehicle socket ? to the stop.
The high-voltage battery is being charged.
indicator lamp A on vehicle socket ?
flashes green slowly.
The vehicle must not be moved nor the
i
engine started during charging or when the
charging cable is connected.
