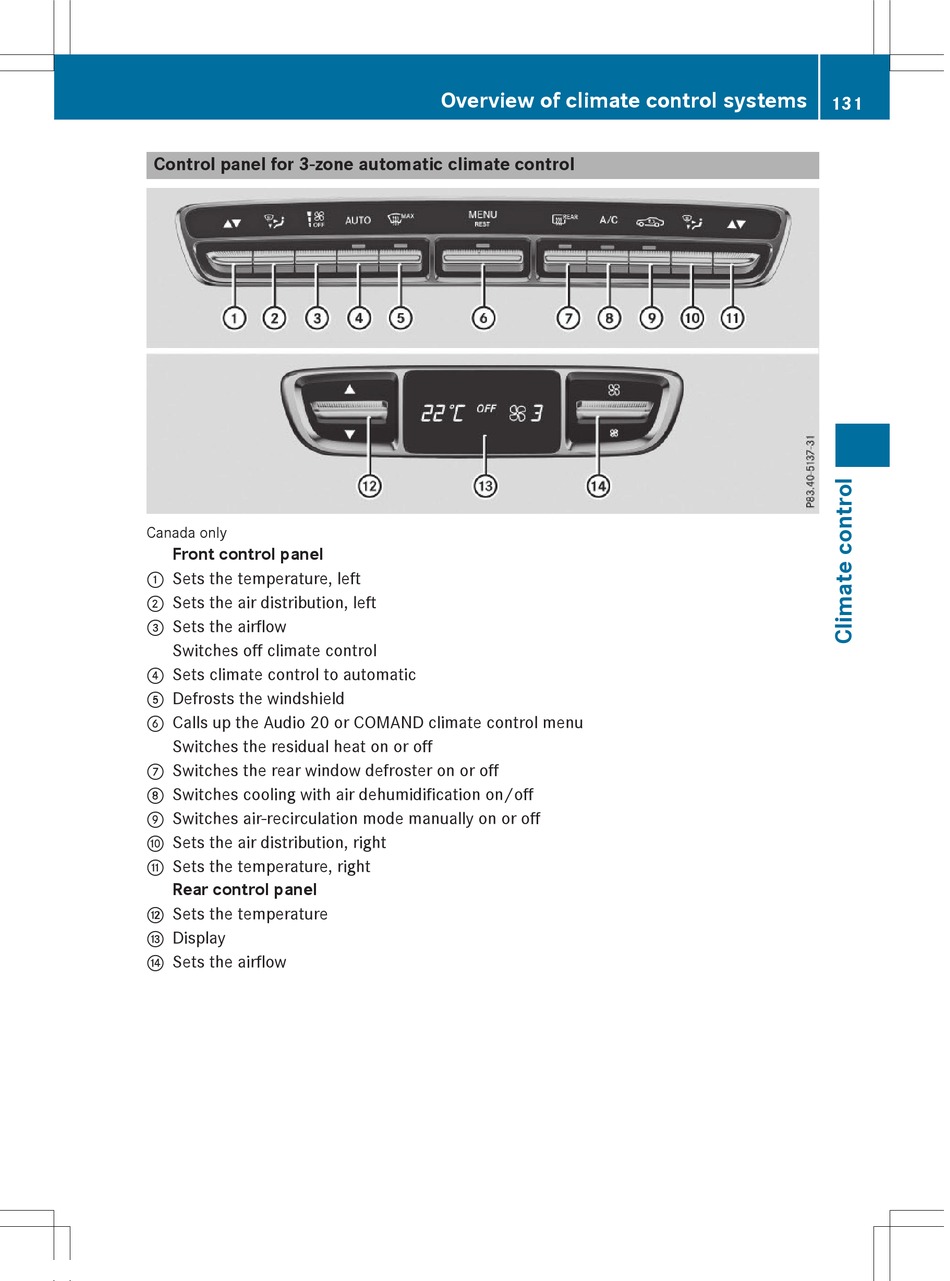

Control panel for 3-zone automatic climate control
Canada only
Front control panel
Sets the temperature, left
:
Sets the air distribution, left
;
Sets the airflow
=
Switches off climate control
Sets climate control to automatic
?
Defrosts the windshield
A
Calls up the Audio 20 or COMAND climate control menu
B
Switches the residual heat on or off
Switches the rear window defroster on or off
C
Switches cooling with air dehumidification on/off
D
Switches air-recirculation mode manually on or off
E
Sets the air distribution, right
F
Sets the temperature, right
G
Rear control panel
Sets the temperature
H
Display
I
Sets the airflow
J
Overview of climate control systems
131
