5.4.4

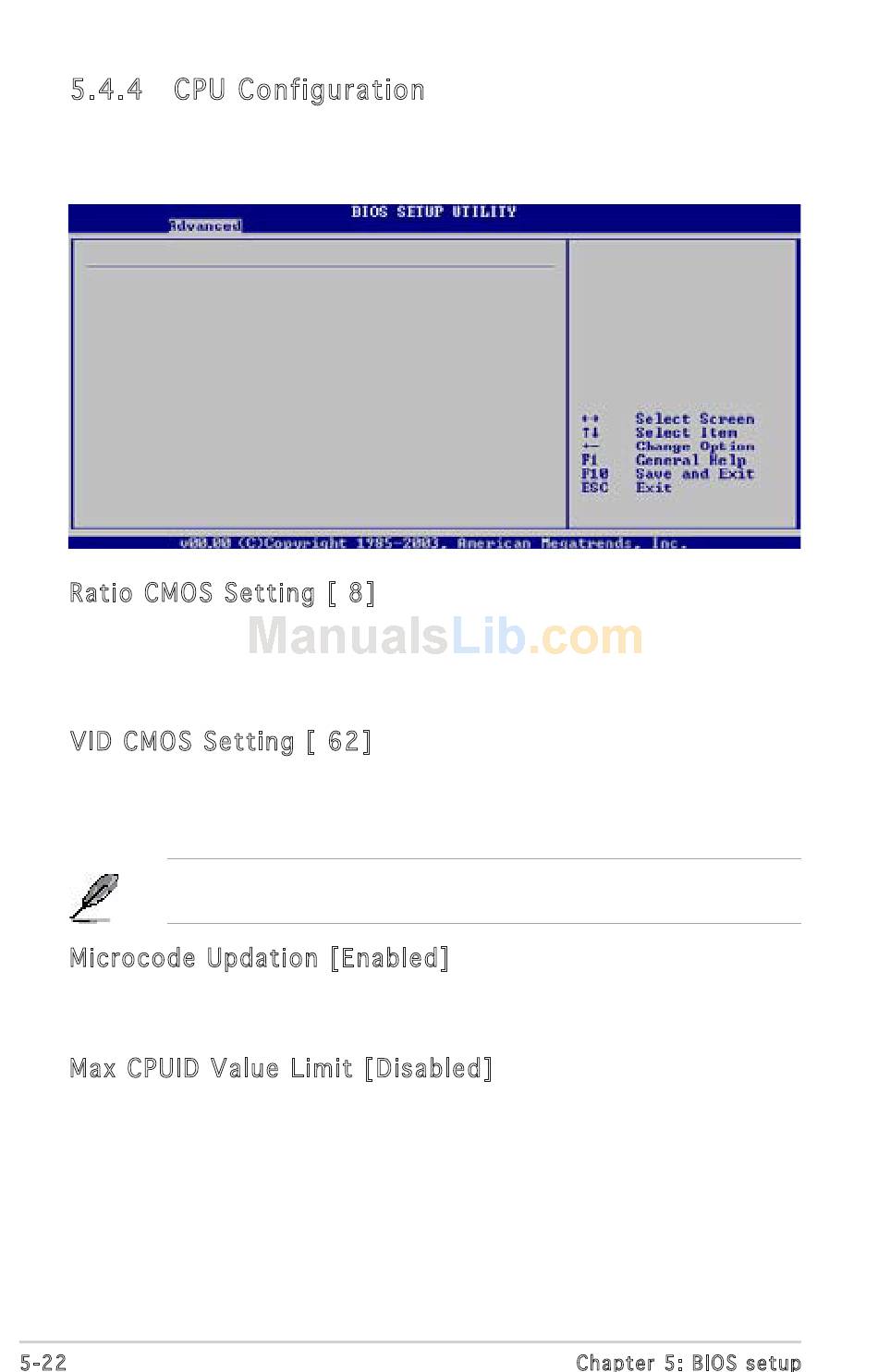

CPU Configuration

The items in this menu show the CPU-related information that the BIOS
automatically detects.
Configure advanced CPU Settings
Manufacturer : Intel
Brand String : Genuine Intel(R) CPU 3.20 GHz
Frequency
FSB Speed
Cache L1
Cache L2
Cache L3
Ratio Status: Unlocked
Ratio Actual Value : 16
Ratio CMOS Setting:
VID CMOS Setting:
Microcode Updation:
Max CPUID Value Limit:
Execute Disable Function
Enhanced C1 Control
CPU Internal Thermal Control
HyperThreading Technology
Ratio CMOS Setting [ 8]
Sets the ratio between the CPU Core Clock and the Front Side Bus
frequency. The default value of this item is auto-detected by BIOS. Use the
<+> or <-> keys to adjust the values.
VID CMOS Setting [ 62]
Allows you to set the VID CMOS setting at which the processor is to run.
The default value of this item is auto-detected by BIOS. Use the <+> or
<-> keys to adjust the values.
You can only adjust the Ratio CMOS and the VID CMOS setting if you
installed an unlocked CPU. Refer to the CPU documentation for details.
Microcode Updation [Enabled]
Enables or disables microcode updation.
Configuration options: [Disabled] [Enabled]
Max CPUID Value Limit [Disabled]
Enable this item to boot legacy operating systems that cannot support
CPUs with extended CPUID functions. Configuration options: [Disabled]
[Enabled]
5-22
: 3200 MHz
: 800 MHz
: 16 KB
: 1024 KB
: 0 KB
[ 8]
[ 62]
[Enabled]
[Disabled]
[Disabled]
[Auto]
[Auto]
[Enabled]
Sets the ratio between
CPU Core Clock and the
FSB Frequency.
NOTE: If an invalid
ratio is set in CMOS
then actual and
setpoint values may
differ.
Chapter 5: BIOS setup
