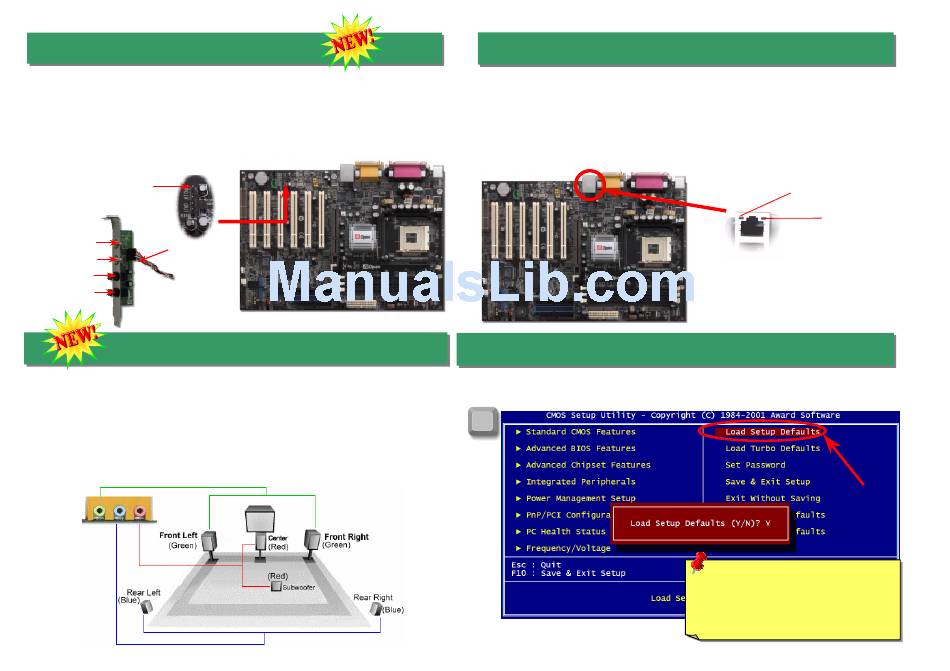

AOpen AX4GER Easy Installation Manual page 5

10. S/PDIF Connector
S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive
quality through optical fiber and allows you to enjoy digital audio instead of analog. Normally there are
two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio
products, and the other for optical connector with a even better audio quality. Through a specific audio
cable, you can connect the S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output.
However, you must have a S/PDIF supported speaker with S/PDIF digital input to make the most of this
function.
Pin 1
S/PDIF OUT (RCA)
S/PDIF
S/PDIF IN (RCA)
Cable
S/PDIF OUT (Optical)
S/PDIF IN (Optical)
S/PDIF Module
(User Upgrade Optional)
11. Super 5.1 Channel Audio Effect
This motherboard comes with an ALC650 Codec which supports high quality of 5.1 Channel
audio effect, bringing you a brand new audio experience. On the strength of the innovative
design of ALC650E, you're able to use standard line-jacks for surround audio output without
connecting any external module. To apply this function, you have to install the audio driver in
the Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture below
represents the standard location of all speakers in 5.1 Channel sound track. Please connect
the plug of your front speakers to the green "Speaker out" port, rear speakers' plug to the blue
"Line in" port and both of the center and subwoofer speakers to the red "MIC in" port.
12. 10/100 Mbps LAN onboard (For AX4GER-N)
The South Bridge ICH4 includes a fast Ethernet controller on chip. On the strength of
RealTek 8100BL LAN controller on board, which is a highly-integrated Platform LAN
Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet
RJ45 connector is located on top of USB connectors. The green LED indicates the link
mode, it lights when linking to network and blinking when transferring data. The orange
LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode.
To enable or disable this function, you may simply adjust it through BIOS.
13. Power-on and Load BIOS Setup
After you finish the setting of jumpers and connect correct cables. Power on and enter the
BIOS Setup, press <Del> during POST (Power On Self Test). Choose "Load Setup Defaults"
for recommended optimal performance.
Del
Green/ACT
Orange/Speed
Warning: Please avoid of using "Load
Turbo Defaults", unless you are sure
your system components (CPU, DRAM,
HDD, etc.) are good enough for turbo
setting.
