installing your camera

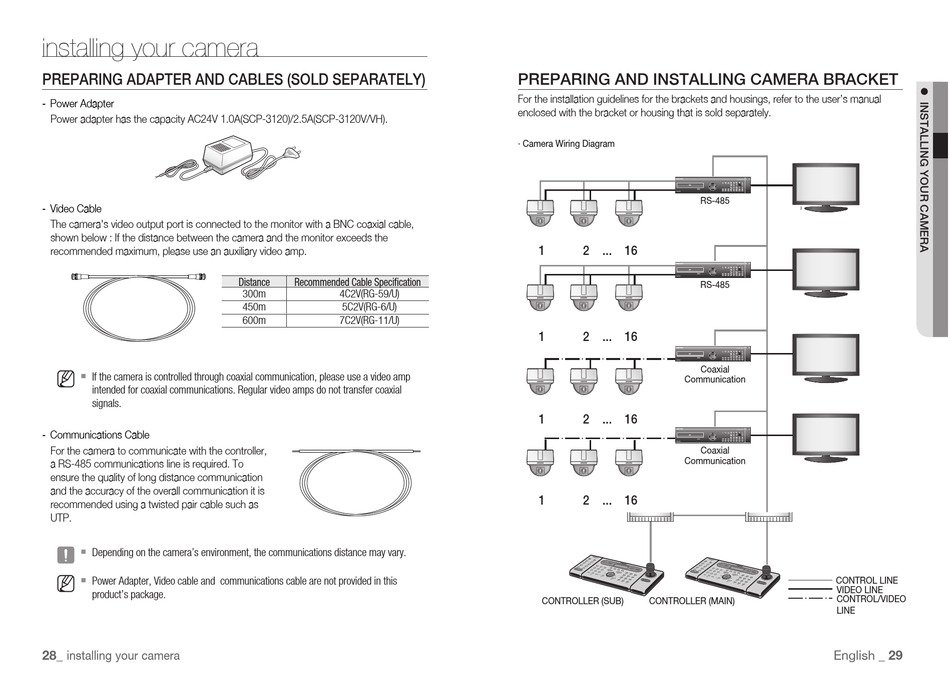

PREPARING ADAPTER AND CABLES (SOLD SEPARATELY)
-
Power Adapter
Power adapter has the capacity AC24V 1.0A(SCP-3120)/2.5A(SCP-3120V/VH).
-
Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial cable,
shown below : If the distance between the camera and the monitor exceeds the
recommended maximum, please use an auxiliary video amp.
M 
If the camera is controlled through coaxial communication, please use a video amp
intended for coaxial communications. Regular video amps do not transfer coaxial
signals.
-
Communications Cable
For the camera to communicate with the controller,
a RS-485 communications line is required. To
ensure the quality of long distance communication
and the accuracy of the overall communication it is
recommended using a twisted pair cable such as
UTP.
J

Depending on the camera's environment, the communications distance may vary.
M 
Power Adapter, Video cable and communications cable are not provided in this
product's package.
28_ installing your camera
Distance Recommended Cable Specifi cation
300m 4C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
PREPARING AND INSTALLING CAMERA BRACKET
For the installation guidelines for the brackets and housings, refer to the user's manual
enclosed with the bracket or housing that is sold separately.
· Camera Wiring Diagram
1 2 ... 16
1 2 ... 16
Communication
1 2 ... 16
Communication
1 2 ... 16
CONTROLLER (SUB) CONTROLLER (MAIN)
RS-485
RS-485
Coaxial
Coaxial
CONTROL LINE
VIDEO LINE
CONTROL/VIDEO
LINE
English _ 29
