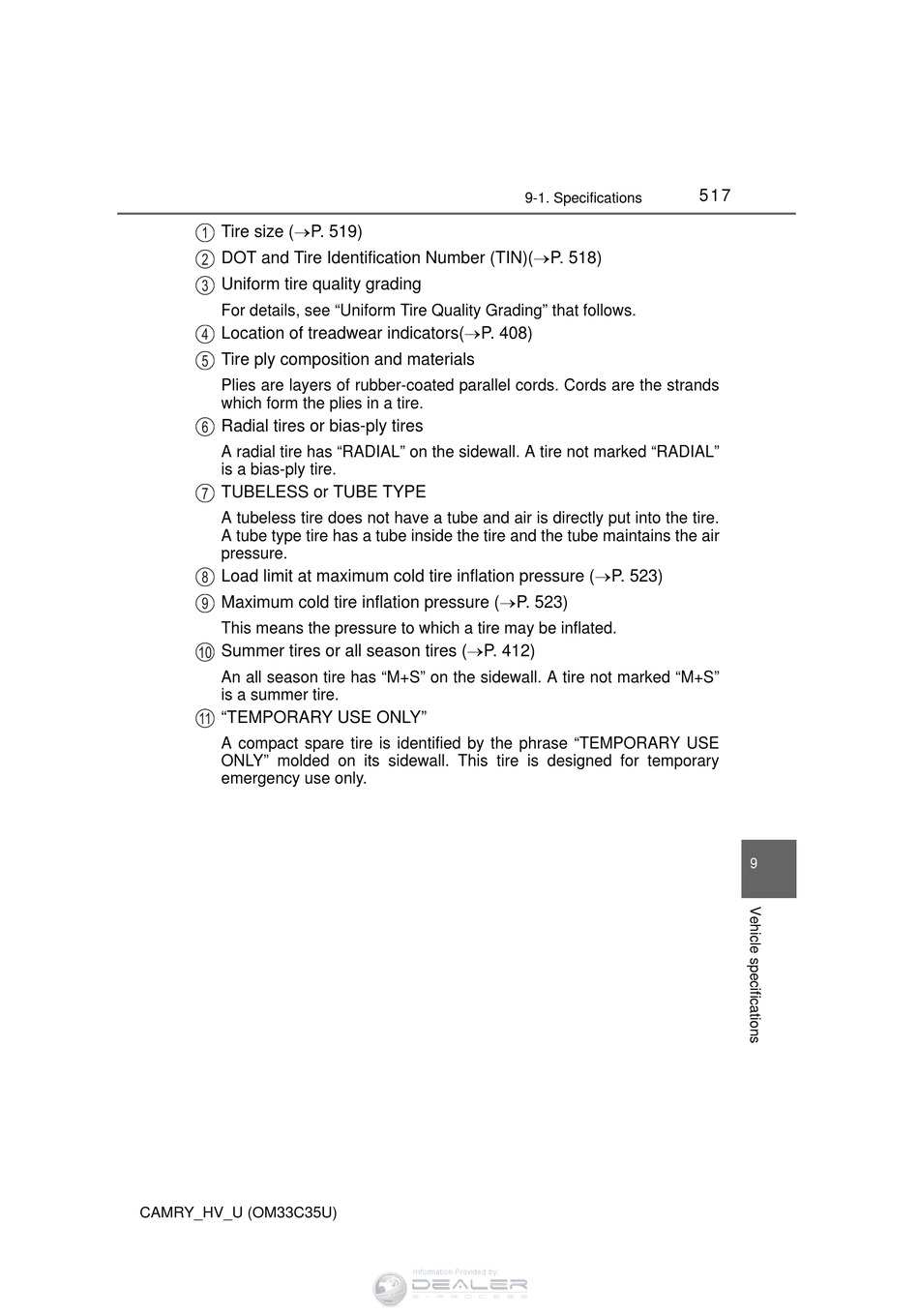

Toyota 2016 Camry Hybrid Owner's Manual page 517

1
Tire size (P. 519)
2
DOT and Tire Identification Number (TIN)(P. 518)
3
Uniform tire quality grading
For details, see "Uniform Tire Quality Grading" that follows.
4
Location of treadwear indicators(P. 408)
5
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
6
Radial tires or bias-ply tires
A radial tire has "RADIAL" on the sidewall. A tire not marked "RADIAL"
is a bias-ply tire.
7
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
8
Load limit at maximum cold tire inflation pressure (P. 523)
9
Maximum cold tire inflation pressure (P. 523)
This means the pressure to which a tire may be inflated.
10
Summer tires or all season tires (P. 412)
An all season tire has "M+S" on the sidewall. A tire not marked "M+S"
is a summer tire.
11
"TEMPORARY USE ONLY"
A compact spare tire is identified by the phrase "TEMPORARY USE
ONLY" molded on its sidewall. This tire is designed for temporary
emergency use only.
CAMRY_HV_U (OM33C35U)
9-1. Specifications
I n f o r ma t i o n P r o v i d e d b y :
517
9
