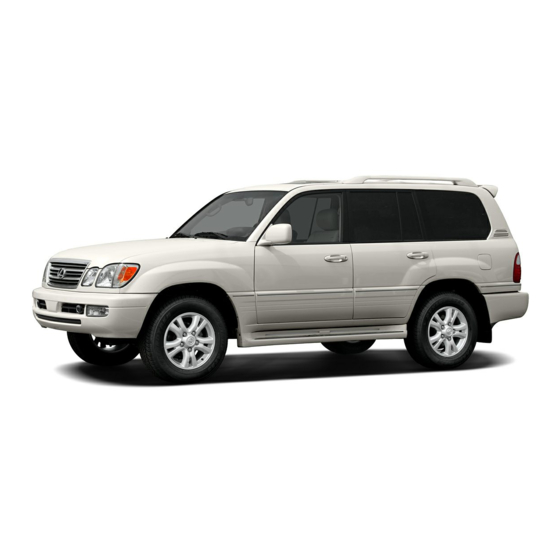

Lexus 2006 lx 470 Manual

Lexus 2006 lx 470 Manual

Hide thumbs Also See for 2006 lx 470:

Installation manual (9 pages)

,

Owner's manual (426 pages)

Table Of Contents

page of 529

/ 529
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

GAS STATION INFORMATION

D Fuel selection:

Select Octane Rating 87 (Research Octane Number 91) or

higher. For improved vehicle performance, the use of

premium unleaded gasoline with an Octane Rating of 91

(Research Octane Number 96) or higher is recommended.

D Fuel tank capacity:

96 L (25.4 gal., 21.1 lmp.gal.)

D Engine oil:

"Toyota Genuine Motor Oil" or equivalent

Oil Grade: ILSAC multigrade engine oil.

Recommended Oil Viscosity

temperatures are below 38_C (100_F)

Oil Capacity: L (qt., lmp.qt.)

Drain and refill

with filter

6.8 (7.2, 6.0)

without filter 6.4 (6.8, 5.6)

See page 410 for detailed information.

SAE 5W 30 if normal

D Engine coolant:

Capacity: L (qt., lmp.qt.)

Coolant type "Toyota Super Long Life Coolant" or similar

high quality ethylene glycol based non silicate, non amine,

non nitrite, and non borate coolant with long life hybrid

organic acid technology (Coolant with long life hybrid

organic acid technology is a combination of low phosphates

and organic acids.)

Do not use plain water alone.

For checking the engine coolant, see page 413.

D Automatic transmission:

Fluid type

"Toyota Genuine ATF Type WS"

D Tire information:

See page 424 through 443 for detailed information.

D Tire inflation pressure:

Tire Size: P275/60R18 111H

cold tires

kPa (kgf/cm

or bar, psi)

2

Front tires

. . . . . .

200 (2.0, 29)

Rear tires

. . . . . .

220 (2.2, 32)

15.4 (16.3, 13.6)

220 (2.2, 32)

240 (2.4, 35)
