To exit the Relay Toggle menu, Press
to Menu" and press to confirm.

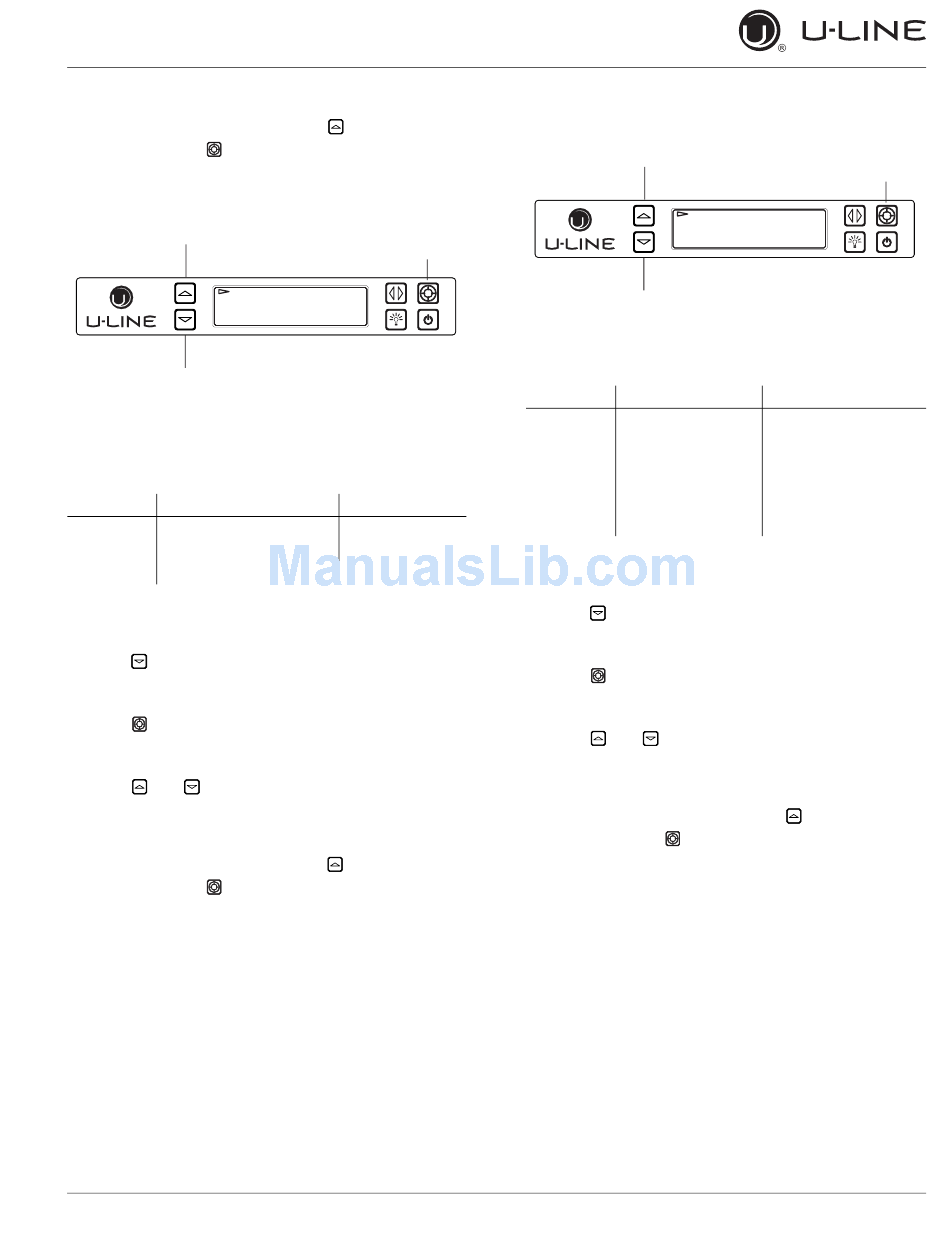

Input Status
Up
Down
Input status displays the current state of each available
input.
ID Description
Left Door Left Door Switch
Right Door Right Door Switch
Test Input Factory Test Input
To access Input Status
1. Press to select "Input Status".
2. Press .
3. Press and to scroll through available
information.
To exit the Input Status menu, press
to Menu" and press to confirm.
to select "Return
Select
RETURN TO MENU
INPUT STATUS
DOOR OPEN
IN2 OPEN
Type
Open - Closed
Open - Closed
Open
to select "Return
Outputs
Up
CONDENSER FAN=0%
Down
Outputs is used to monitor the state of DC outputs.
ID Description
L Evap Fan Left Evaporator Fan
R Evap Fan Right Evaporator Fan
Condenser Condenser Fan
Fan
L Light Left Zone Lighting
R Light Right Zone Lighting
To access Outputs
1. Press to select "Outputs".
2. Press .
3. Press and to scroll through available
information.
To exit the Input Status menu, press
to Menu" and press to confirm.
u-line.com
Select
RETURN TO MENU
OUTPUTS
EVAP FAN=0%
States
0 - 100%
0 - 100%
0 - 100%
Off - Low - Med - High
Off - Low - Med - High
to select "Return
Control Operation - Service 5
