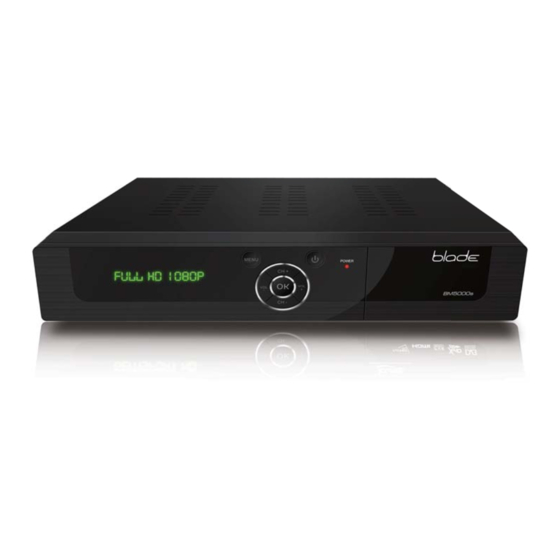

Hd satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Blade BM5000S

Summary of Contents for Blade BM5000S

  • Page 2: Safety Precaution

    Safety Precaution CAUTION: The exclamation point within an The lightning flash with Warning: equilateral triangle is intended to arrowhead symbol, within an To reduce the risk of electric alert the user to important equilateral triangle, is intended shock, don't open the cabinet. operating and maintenance to alert the user to "dangerous Refer servicing to qualified...

  • Page 3: Environment Protection

    Power-Cord Protection: Place the power-supply cord out of the way, where it will not be walked on. Please pay special attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. Object and Liquid Entry: Never put objects of any kind into this STB through openings, as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

  • Page 4: Table Of Contents

    CONTENTS SAFETY PRECAUTION..................1 ENVIRONMENT PROTECTION................2 1. FRONT PANEL .....................5 2. REAR PANEL....................5 3. CONNECTING YOUR SYSTEM ..............6 4. REMOTE CONTROLLER ................7 5. BASIC OPERATIONS...................9 5.1 T STB.....................9 URN ON 5.2 P .......................9 OWER 5.3 C ..............9 HANNEL HANNEL 5.4 V ................9 OLUME OLUME...
  • Page 5 7. INSTALLATION...................19 8. MULTIMEDIA ....................23 9. SETUP ......................27 10. OTHERS ....................34 11. SPECIFICATIONS..................38...

  • Page 6: Front Panel

    1. Front Panel 1. POWER KEY: To switch the receiver power on/stand by 2. MENU KEY: To open the main menu 3. CH +/-: To select the next or previous saved channel or to move cursor up/down in the menu 4.

  • Page 7: Connecting Your System

    3. Connecting Your System There are four ways to connect the receiver to your existing TV system. We recommend using one of the following cases for the best result: 1. If you have a high definition television set, you should use a HDMI cable for best results. Plug one end of the cable into the HDMI socket on the receiver and the other end into the matching socket on your television.

  • Page 8: Remote Controller

    4. Remote Controller...
  • Page 9 1. POWER: To switch ON/OFF the receiver power supply. 2. MUTE: To mute or restore the sound 3. TV/RADIO: To switch between TV and RADIO. 4. NUMBER KEYPAD: To select TV/Radio channel and enter programming parameters by the numeric keys and to input the character by the alphabetical keys. 5.

  • Page 10: Basic Operations

    5. Basic Operations 5.1 Turn on STB First, press the Power to turn on the unit. When the STB is first used, there will play the first channel from the default Channel List. If the STB is not first used, STB will play the same channel as last time before turning off. 5.2 Power 1.

  • Page 11: Audio

    5.10 Audio 1. In full screen, press [AUDIO] key to open the “Audio” window on the screen. 2. You can modify the audio track by pressing [Ch Up/Dn] key and modify the audio mode by pressing [VOL +/-] key among Stereo LL/ Stereo LR/ Stereo RR 5.11 Information In full screen, press [INFO] key can...

  • Page 12: Tv/Radio

    1. Press [EPG] key to display EPG screen. 2. In EPG menu, press [Exit] to close EPG screen. 5.13 TV/RADIO In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO] key to switch to TV mode. 5.14 Channel List In full screen, press [OK] key can enter “Channel List”.

  • Page 13: Subtitle

    1. Press [TTX] key in full screen, you can open teletext page on the channel which has teletext information. 2. If the channel has no teletext information, it will show “Teletext No Data” on the screen. 5.17 Subtitle Press [SUBT] key in full screen, you can switch subtitle on or off.

  • Page 14: Pip (Picture In Picture)

    5.19 PIP (picture in picture) 1.In full screen, when you press F4 key to start PIP function, the screen will display TwinView like below a sub picture screen will appear on the main screen view. And if you press the F4 key again, the sub screen will disappear.
  • Page 15 Press two times to display at the bottom left corner Press three times to display at the top left corner 4. In the PIP mode, press Ch Up/Dn key to change the channel with full screen of main picture 5. In the PIP mode, press PG+/- key to change the channel with small window 6.

  • Page 16: Zoom

    5.20 Zoom 1. The [ZOOM] key allows you to magnify a certain area on the images 2. Press [ZOOM] key again, the image will enlarge rotate as x2, x4, 3. In “x2 ~ x8” image, using [Vol +/-] [Ch Up/Dn] keys to move the image center area you want to see.

  • Page 17: Channel

    Press Red Button to display different SORT Groups, you can list the channels by 4 kinds of sorting ways. Press Green Button to display the fast find channel menu 6. Channel When pressing the [MENU] key on the remote, five icons will appear on your TV screen where you can configure all your settings: Installation, Channel, Multimedia, Setup and others.
  • Page 18 TV Channel Editor 1. RENAME [Red Key]: To edit the channel name 2. LOCK [Green Key]: To lock the channels which you want to lock. (1) It will display a dialogue to ask you to input password. The default password is “0000”. If you input the correct password you can see a “lock mark”...
  • Page 19 By selecting “EPG”, you will see EPG information Select one channel and press [Vol+/-] to choose a date Press Yellow key to enter Reservation menu, then press OK key to set the channel with record schedule...

  • Page 20: Installation

    Favorite In the “Channel” Menu, you can edit your own favorite channels. 7. Installation When the focus is on Installation, it will display sub items like Satellite Find, Automatic SAT Scan, Manual Scan, SAT/TP Manager, Satellite Find. Satellite Setting You can move highlight by press [Ch Up/Dn] key, When the highlight is on the satellite setting, press OK key to go to satellite setting menu.
  • Page 21 When the focus is on the satellite list, you can press OK key to setting which satellite will be selected with LNB. You can press Red key to set SAT/TP Manager. Press Green key to start channel search. Press Blue key to update transponder from network.
  • Page 22 If you select “DiSEqC1.2”, “Local Longitude / Local Latitude” is not available. It will show the screen as to your left, here When the highlight on the mode item, you can use [Volume Up/ Volume Down] key to set Motor function Automatic SAT Scan You can find sub-menus for Satellite, Transponder, Scan Type, Service Type, Scan mode，Scan select，...
  • Page 23 1. Satellite: Select the satellite that you want to search. 2. Frequency: Select the desired TP (transponder) Frequency 3. Symbol Rate: Select the desired TP (transponder) Symbol Rate 4. Polarity: You can choose the polarity of satellite signal amongst H (horizontal) / V (vertical) 5.

  • Page 24: Multimedia

    Satellite Find By selecting “Satellite Find” menu 1. You can use [Vol+/-] key to switch Satellite and Transponder 2. You can set Beep tone ON or OFF 8. Multimedia In the Menu, When you move the highlight onto the Multimedia, it will show up six items: Movie, Music, Photo, My Recorder, PVR Setting and USB Safe Remove.
  • Page 25 1. Press Red key to select Video play option, supports Random, Repeat play mode ,also you can change Text Encode, Font Size, Font Color, BG Color and Position. 2. Press Green key to set display mode by folder and thumbnail 3.

  • Page 26: Pvr Setting

    Photo If you want to view Photo files that are stored in your USB device, select Photo item in the Multimedia icon. The screen shows up the supported photo files stored in your USB device. My Recorder Entering this menu item will display recorded files. Press Red button to rename the selected file.
  • Page 27 USB Safe Remove In this item you can remove the USB device safely. Press OK Key to choose which USB to remove, then Press OK key and there will be a prompt, use [Vol+/-] to select YES/NO.

  • Page 28: Setup

    9. Setup By pressing MENU and selecting “Setup” icon, you can press the [CH UP/Dn] key to select different items: System Info, Language, OSD setting, Time, TV setup, Reservation, Parental Control, Update & Backup, Factory Setting, Network Setting and Internet Ping. The last two items are unavailable when not connected to the Internet.
  • Page 29 Language When you enter the “Language” menu, you can select OSD Language, Audio Language, Subtitle Language. To turn off all subtitles, select OFF in the Subtitle Language section. 1. OSD Language: To select menu languages, the selections of languages includes: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish, Italian, etc.
  • Page 30 Time When you enter the Time Menu, you can see: Summer Time, Sleep Time, Set Time, Set Date, Time Zone and GMT usage. Sleep Time: When you set a sleep timer and the time arrives, the system will enter into standby automatically.

  • Page 31: Parental Control

    9. TV Mode: you can switch the TV output mode by NTSC /Auto/ PAL 10. TV Format: You can switch the screen aspect ratio mode. It provides options of: 4:3 LB/4:3 PS/16:9 LB/16:9 FIT Reservation In this item you can Edit Event, including Channel, Satellite, Date, Time, Mode, etc. Parental control 1.
  • Page 32 Update & Backup After choosing “Setup” icon and selecting “Update & Backup” item, Press OK key to enter into the menu. Make sure the USB is connected. 1. Upgrade by network: You can download new software to this receiver by network 2.

  • Page 33: Factory Setting

    When you want to backup the software, you can make sure the USB memory device is connected and build the new file first. The software will be backed up to this new file. Factory Setting When you press [OK] key in the “Factory Setting”...
  • Page 34 When the network status displays connect, you can select DHCP or input the IP address manually. The default setting for network is DHCP and it will be able to automatically obtain network settings. If you select DHCP off, you can input IP Address, Subnet Mask, Gateway, DNS Preferred, DNS Alternate and Mac Address manually.

  • Page 35: Others

    Set Ping Mode option for 5 times or forever. Set Ping time out by 1~10sec. Set Ping Target by String and Number. When the highlight is on the Ping Run, press OK key to run PING function. 10. Others When the cursor is on the Others icon, available items will show up: Youtube, Weather, Game, Calculator and Calendar, etc.
  • Page 36 Press Blue key to switch video file and Group list. Press Yellow key to display option menu. Weather When you enter into the Weather menu, please make sure the network is connected.
  • Page 37 Press Yellow key to set the city information. Game When you enter “Game” menu, you will see several games including Tetris, Boxman and Gobang. Calculate...
  • Page 38 Calendar...

  • Page 39: Specifications

    11.Specifications Tuner Demodulator Mode QPSK,8PSK,16APSK,32APSK Frequency Range 950~2150MHz RF Input Connector F-Female Video Video Decoding ISO/IEC 11172-2 MPEG1, ISO/IEC 13818-2 MPEG2 MP@ML and MP@HL, ISO/IEC 14496 MPEG4 Compliant Support SP@L3 to ASP@L5, ISO/IEC 14496-10 AVC high profile @ level 4.1 main profile @ level 4.1 Video Output CVBS(video format @ 576i or 480p) HDMI 1.3(video format default @ Auto), support HDCP...

  • Page 40: Physical Specification

    User Manual English HDMI Cable AV Cable Power AC Input Range 100~240V AC 50Hz Power Consumption Max.30W Physical Specification Operating 0~40℃ Temperature Storage Temperature -10~65℃ Size(WxDxH)in mm 260x205x45mm Net Weight Gross Weight...
