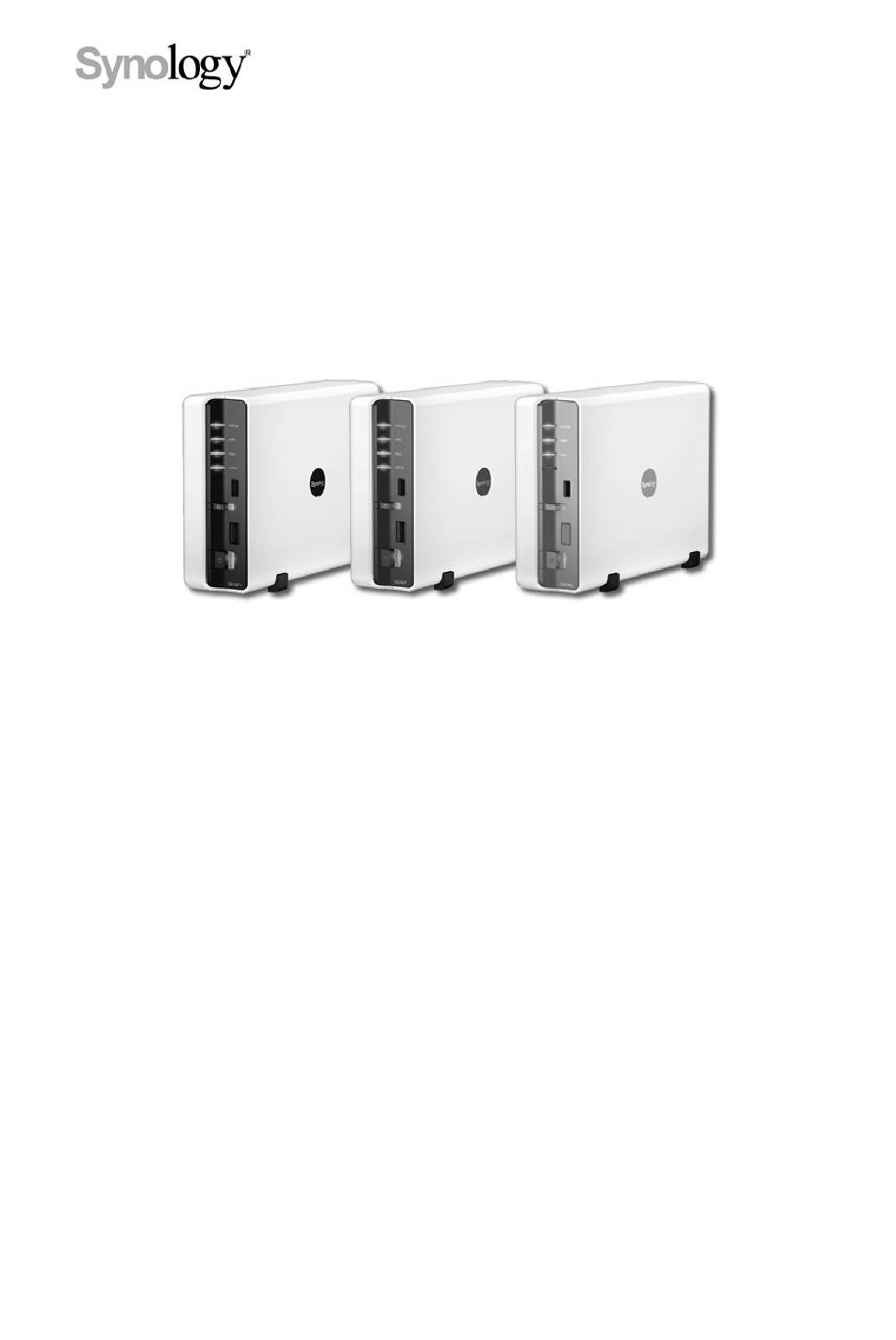

- Page 1 Disk Station DS107+, DS107, DS108j Quick Installation Guide...
-
Page 2: Safety Instructions
Do not place the The power cord There are slots on the button of Synology product must plug in to Synology product for ventilation. To on a cart, table, the right supply make sure Synology product is or desk, which is voltage. -
Page 3: Package Contents
2M RJ-45 LAN cable AC power cord Assembling Kit Screws for Screws for HDD Data HDD Power fixing Hard fixing the Cable* Cable* Disk X 6 (1 Synology Case spares) X 3 (1 spare) * Not included in the cable-less models. -
Page 4: Install Hard Disk
INSTALL HARD DISK Disk Station requires one 3.5” SATA hard disk for installation. Refer to the following steps for details: Warning! If you use a hard disk with data on it to install, system will format the hard disk and erase all data in some cases. Please back up the data if you need it in the future. - Page 5 Pull up the upper case. Place the hard disk inside the HDD bay.
- Page 6 Fix the hard disk with the 4 HDD screws provided. Connect the HDD Data Cable and HDD Power Cable to the motherboard. (Skip this step if the Disk Station is a cable-less model.) Attach the upper case and slide it back. Fix the case with the 2 case screws provided.
-
Page 7: Turn On Server
TURN ON SERVER Connect the AC power adapter to the server and plug in the AC power cord to the power outlet. Use the LAN cable to connect the server to your switch/router/hub. Press the power button on the front panel to power up the server. Wait for the POWER LED to be constant blue. -
Page 8: Install System Software
Windows User Insert the installation CD to your computer. Choose Set up the Synology Server on the autorun menu. Click Browse to select the “.pat” installation file in the installation CD. Follow the on-screen instructions to complete the setup process. - Page 9 Double click on the automatically generated thumbnail Synology Assistant-SYNOLOGY. dmg on the desktop. Double click Synology Assistant to run the Setup Wizard. Click Browse to select the “.pat” installation file in the installation CD. Follow the on-screen instructions to complete the setup process.
- Page 10 CONGRATULATIONS! Server has been set up. Refer to the User’s Guide in the installation CD for advanced settings and management. For more information or online resources, please visit http://www.synology.com.
- Page 11 GPL Notice This Synology product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. This does not affect the warranty for the product itself.
- Page 12 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
- Page 13 c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it.
- Page 14 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number.
