QUICK START GUIDE

For a full explanation of all features and instructions, please refer to the User's Guide.

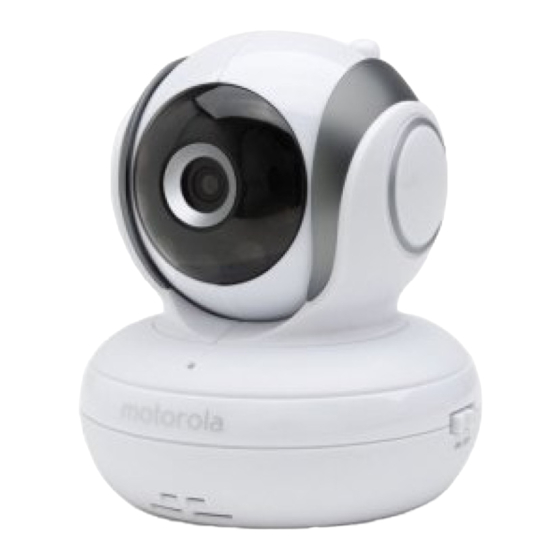

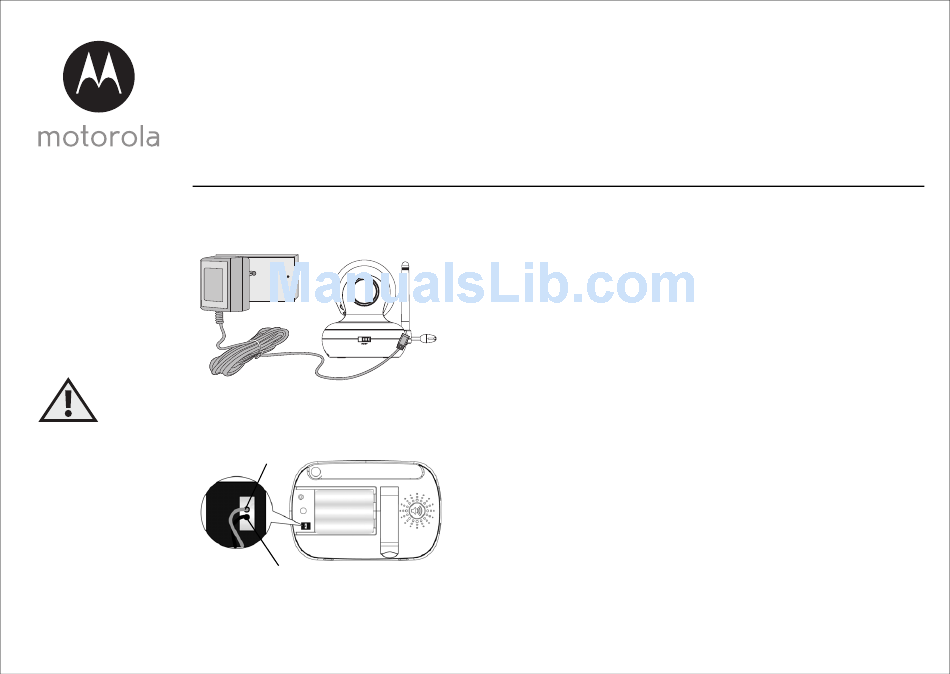

1. Setting up your Digital Video Baby Monitor
MODELS:
MBP36S,
A. Connecting power supply for the Baby Unit.
MBP36S-2,
MBP36S-3,
MBP36S-4
B. Installing the battery pack for the Parent Unit.
WARNING:
STRANGULATION
HAZARD - Keep
the Unit and
adapter cords
more than 1 metre
from the cot and
out of your baby's
reach.
Red
Black
Connect the small plug of the power adapter to the Baby Unit
and the other end to a suitable mains power socket.
Only use the enclosed adapter (5V DC/1000mA).
Ensure the ON/OFF switch is switched to the "ON" position.
A rechargeable battery pack is supplied and should be fitted,
so that the parent unit can be moved without losing the link
and picture from the camera unit(s). Charge the battery in the
parent unit before you use it for the first time or when the
parent unit indicates the battery is low.
Insert the wire tab of the rechargeable battery pack into the
contact slot as shown and fit the battery pack into the
compartment.
