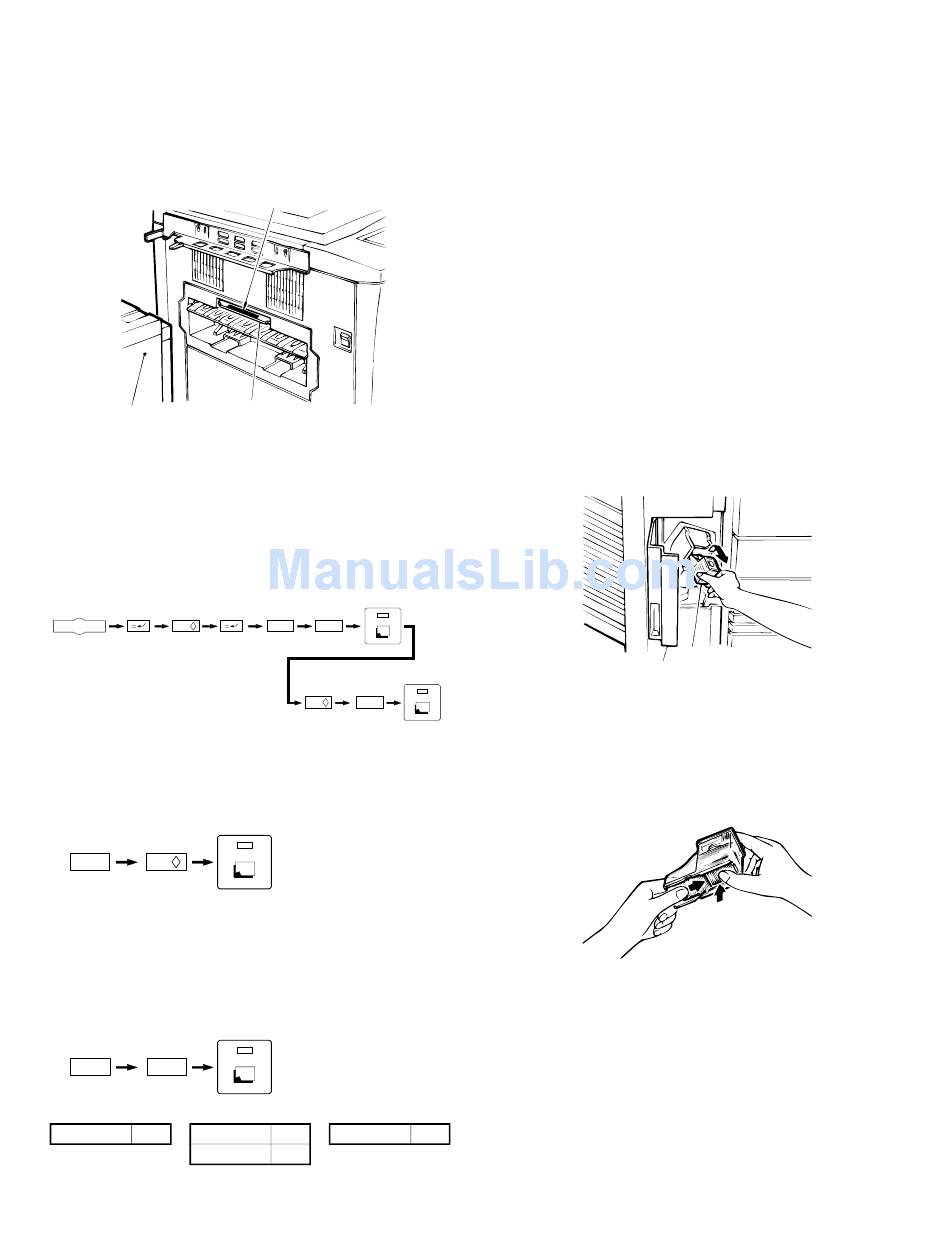

12. Affix the green label.
Lifting up on the staple sorter's release lever, separate the sorter from
the copier.
Next, affix the green label to the paper output section handle as
shown in the figure.
Holding the staple sorter's release lever, return the sorter to its
original position. At this time, confirm that the staple sorter locks
securely into place beside the copier.
Paper output section handle
Staple sorter
Plug the copier's power cord into an electric outlet,
switch on the power, and then perform the
following procedure.
13. Set the mode.
•
Perform the following key operations on the copier to set the
mode.
C 0 /
Performing the above operation will cause the current setting to
be displayed.
•
If only the SF-S53 is being set, continue by performing the follow-
ing key operation to complete the mode setting.
1 0 /
•
If the mode is being set for a combination of options, add up the
numerical values of the options to be set (see the table below) and
input the total sum.
Example: When setting SF-S53 and SF-A17/56, the total sum of
their values is 11 (1 + 10). Therefore, perform the fol-
lowing key operations.
1 1
SF-A17/56 1 SF-D20
SF-D21H
Green label
2 6
0 / 1
4 Sorter 10
4
B. Staple sorter operation check
1. Check the sort mode.
Make 20 copies in the sort mode and confirm that the copies are
distributed to the sort bins with no abnormal noises from the sorter.
2. Check the non-sort mode.
Make copies in the non-sort mode and confirm that they are sent to
the non-sort bin.
3. Use the ADF (automatic document feeder) and
check the staple sort mode.
Place 2 or more sheets in the ADF and make copies in the staple sort
mode. Confirm that the copies are distributed to the sort bins, that the
staple guide bar arranges the copies and that the stapler functions
properly.
If at this time the copies have not been stapled or the stapler is
jammed, adjust the staples by performing one of the following proce-
dures.
If copies have not been stapled
1. Remove the staple cartridge.
Open the stapler cover, lift up on the staple cartridge and remove it
by pulling in the direction of the arrow.
Stapler cover
2. Check the staple cartridge.
Confirm that the sheets of staples in the cartridge are properly stack-
ed.
If not, slide the staples back in the direction of the arrow while press-
ing in gently on the bottom of the cartridge.
5 – 17
Staple cartridge
