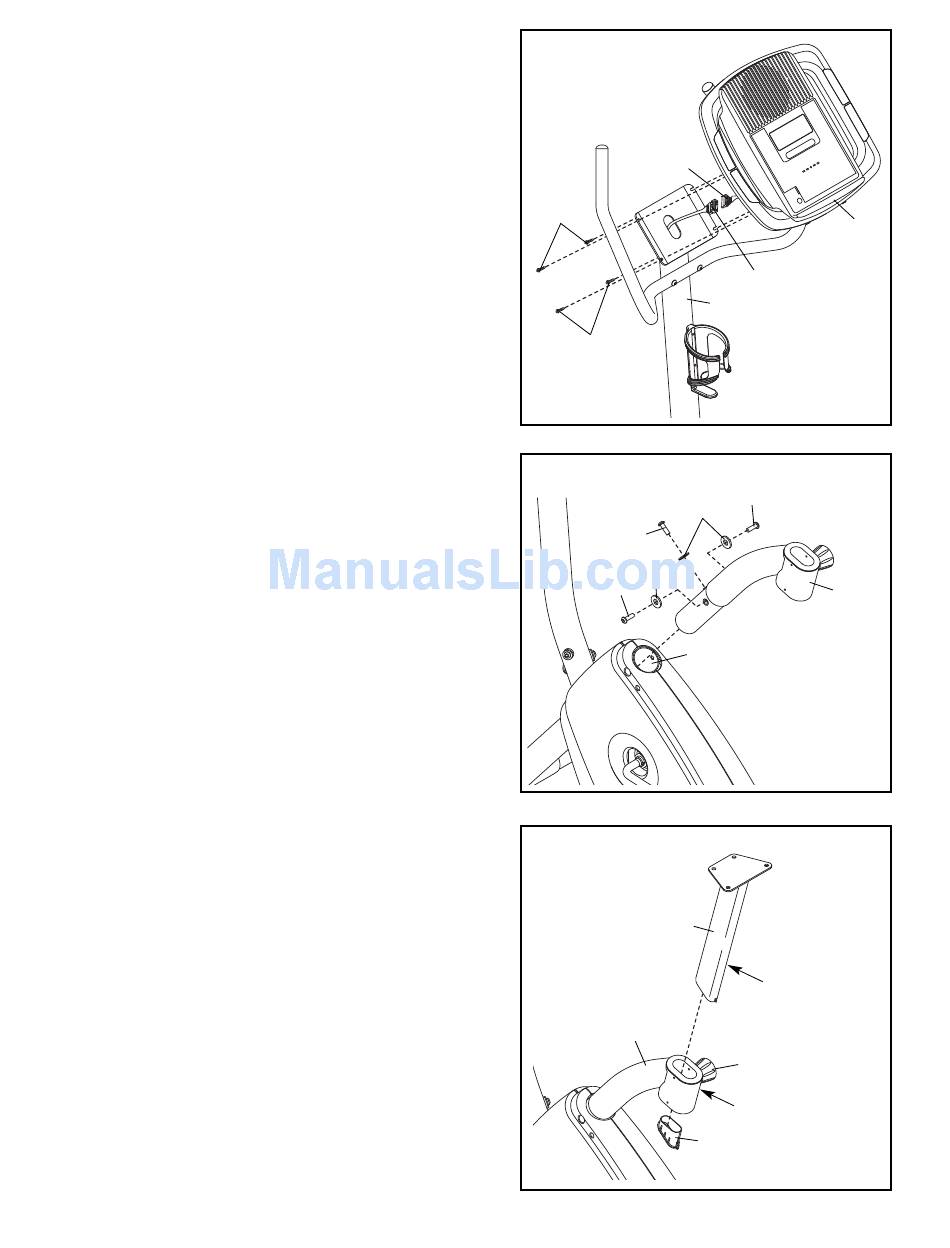

6. Hold the Console (16) near the Upright (13). Connect
the console wire to the Upper Wire Harness (36).
Insert the excess console wire and Upper Wire
Harness (36) downward into the Upright (13). Next,
attach the Console (16) to the Upright with four M4 x
16mm Screws (49). Be careful to avoid pinching
the wires.
7. Attach the Seat Frame (28) to the Frame (1) with three
M8 x 25mm Button Screws (45) and three M8 Split
Washers (41).
8. Turn the Seat Knob (11) counterclockwise and pull it
outward. Next, insert the Seat Post (5) into the Seat
Frame (28). Press the Seat Post Cap (54) into the
lower end of the Seat Post.
Next, align one of the adjustment holes in the Seat
Post (5) with the indicated hole in the Seat Frame (28).
Then, release the Seat Knob (11) into the Seat Frame
and the Seat Post, and turn the Seat Knob clockwise a
few turn. Make sure that the Seat Knob is inserted
through one of the adjustment holes in the Seat
Post.
