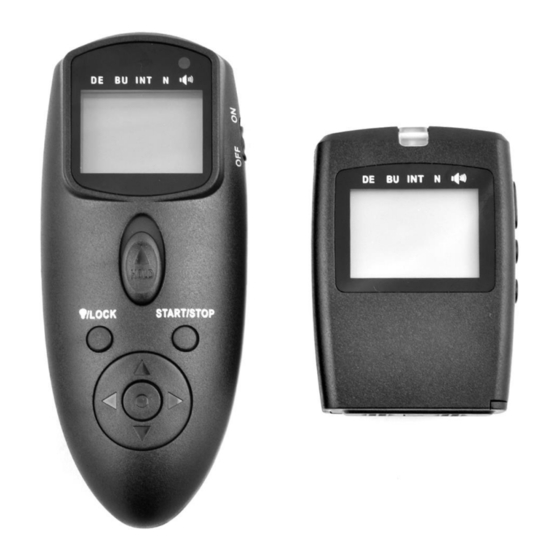

Thank you for purchasing the ProMaster
performance, please read this instruction manual carefully before using.

Included in the package

The following items are included in the package:
1.
2.4 GHz Wireless Remote Transmitter
2.
2.4 GHz Wireless Remote Receiver
3.
Instruction Manual
4.
1 pc. CR2 3V Lithium Battery (for receiver)
5.
2 pc. AAA 1.5V Battery (for transmitter)
®
Multi-Function Wireless Timer Remote. For the best

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Timer Remote 4964 and is the answer not in the manual?

Questions and answers

Related Manuals for Promaster Timer Remote 4964

Summary of Contents for Promaster Timer Remote 4964

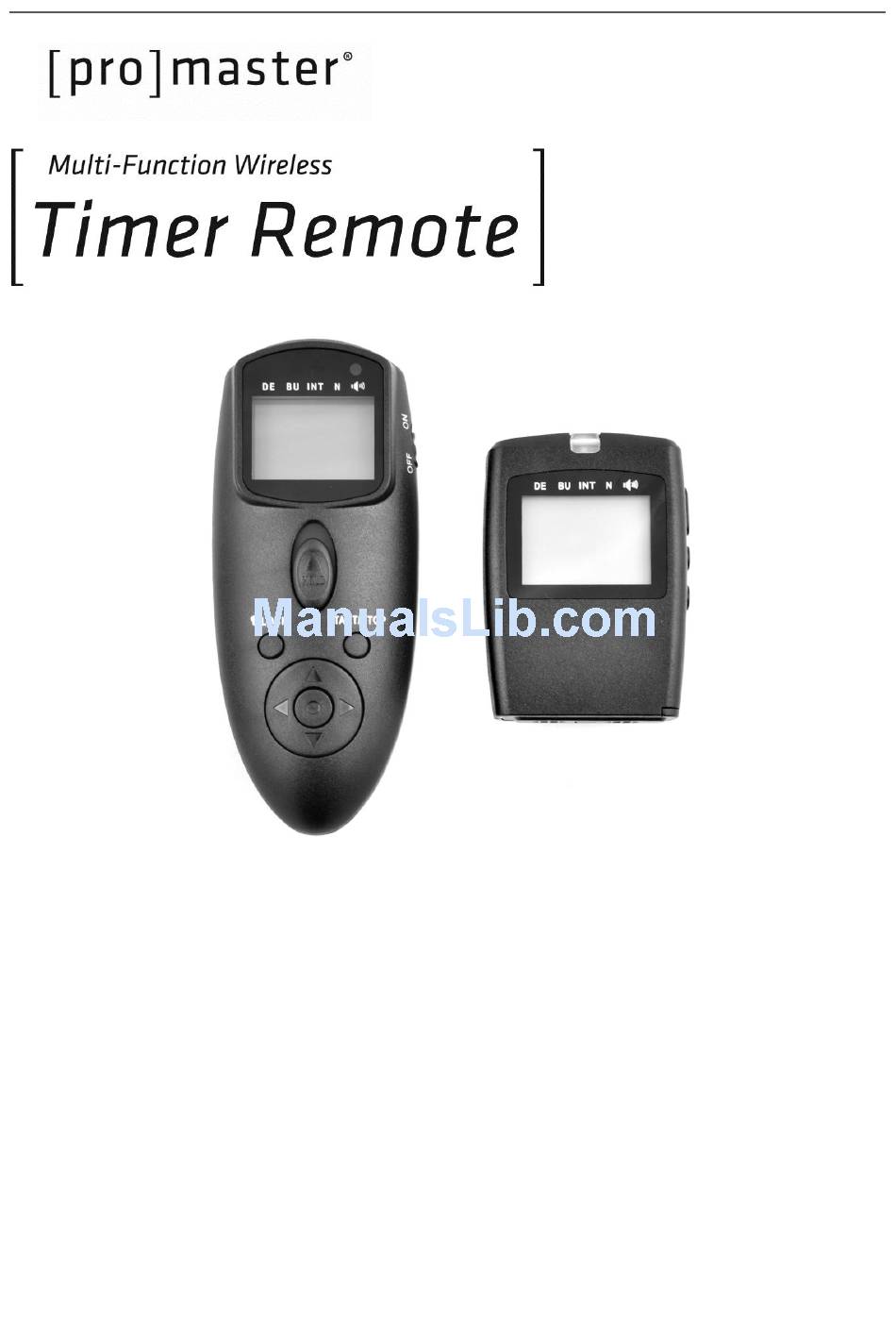

  • Page 1 ® Thank you for purchasing the ProMaster Multi-Function Wireless Timer Remote. For the best performance, please read this instruction manual carefully before using. Included in the package The following items are included in the package: 2.4 GHz Wireless Remote Transmitter 2.4 GHz Wireless Remote Receiver...
  • Page 2 Transmitter Parts Identification Control Panel Shutter Release Button Background Light / Lock Button Arrow Button Indicator Light Timer Start / Stop Button SET Button Wired remote camera release socket Power Switch Transmitter...
  • Page 3 Receiver Parts Identification Indicator Light Control Panel Power Switch Channel Increase Button Channel Reduce Button Battery compartment cover Locking ring 1/4"-20 Threaded Socket Wired remote camera release socket 10. Mounting foot Receiver...
  • Page 4 11. Selection cursor 12. Timer display 13. LOCK indicator 14. Low power indicator 15. Timer active indicator 16. Speaker ON/OFF 17. SET indicator 18. Release indicator 19. Exposure counter 20. Multi-Exposure indicator 21. Channel display...
  • Page 5 Install or replace the batteries Transmitter...
  • Page 6 Receiver...
  • Page 7 Selecting wireless or wired operation Your ProMaster Multi-Function Wireless Timer Remote can be used in either a wireless mode with an operating distance of up to 328’ (100 meters) or as a wired remote. In either case, in order to operate, it REQUIRES the purchase of a ProMaster Camera Release Cable to fit your particular camera.
  • Page 8 Wireless Operation...
  • Page 9 Connecting the receiver  Turn the camera and receiver off.  Mount the receiver on the hot shoe of the camera. Turn the locking ring of the receiver to firmly fix the receiver in place taking care to not over tighten which could cause damage to the receiver or the camera.
  • Page 10 Wired operation using the transmitter Turn the camera and transmitter off. Remove the remote socket cover from the camera. Insert the shutter release plug into the remote socket of camera. Insert the input plug into the wired remote cord socket (9) on the transmitter. Turn the camera and remote on.
  • Page 11 Setting the Remote for Time Delay Exposures (Wired and Wireless): 1. Setting your camera a) Connect the remote to the camera and turn it ON. b) Adjust the camera setting. Exposure Mode M (manual) Shutter Speed BULB Interval Timer Auto Focus or Manual Focus Mode Continuous S (single frame)

  • Page 12: Setting The Timer

    Setting the Timer  Use the arrow buttons on the remote to adjust the settings on the timer. Press left or right to select, up or down to change. The current selection is indicated by the selection cursor.  Press the SET button at any time to complete the operation and display the new setting for the selected item.
  • Page 13 5. Speaker To ensure correct operation, be sure to choose an interval of at least two seconds longer than the exposure time. When using autofocus, set the delay to two seconds or more and choose an interval at least two seconds longer than the exposure time to ensure that the camera has time to focus. When using long exposure noise reduction, the interval should be at least twice the exposure time.
  • Page 14 Starting the timer – wired operation Press the START/STOP button. The timer will start and “TIMER ACTIVE” will flash in the control panel. Between shots, the control panel will show the time remaining until the next photograph is taken. If the speaker is ON, a beep will sound three times at ONE-SECOND intervals before the shutter opens.
  • Page 15 The Speaker and Release Lamp The following illustration shows when a beep will sound ( ) and the release lamp flash ( ) with a delay of 5s, and exposure time of 4, and an interval of 9s. End Shooting Shooting will end automatically when the selected number of shots has been taken.
  • Page 16 Starting the timer - wireless operation After making the settings for the desired function, press the START/STOP button of the transmitter. The transmitter will send the setting data to the receiver. Once the data is in the receiver, it will start and “TIMER ACTIVE”...
  • Page 17 The Speaker and Release Lamp The following illustration shows when a beep will sound ( ) and the release lamp flash ( ) with a delay of 5s, and exposure time of 4, and an interval of 9s. End Shooting Shooting will end automatically when the selected number of shots has been taken.
  • Page 18 Intervalometer function To take photographs at the shutter speed selected with the camera, adjust the settings as follows: M (manual) or S (shutter-priority auto) Exposure mode Shutter speed CAMERA Interval timer Focus mode AF-C or M Shooting mode S (single frame) Exposure time TRANSMITTER Longer than camera shutter speed...

  • Page 19: Sleep Mode

    1s delay before the next exposure. Sleep mode To conserve the life of your batteries, the ProMaster Wireless Multifunction Timer Remote has a power save mode. After 1 minute of inactivity, the remote will automatically go into the sleep mode to conserve battery life.

  • Page 20: Specifications

    ONE YEAR UNCONDITIONAL GUARANTEE If for any reason, this ProMaster product fails within ONE YEAR of the date of purchase, return this product to your ProMaster dealer and it will be exchanged for you at no charge. ProMaster products are guaranteed for ONE FULL YEAR against defects in workmanship and materials.
