Promaster 7050 Manual

Bluetooth timer remote control receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Thank you for purchasing the PROMASTER BLUETOOTH
TIMER REMOTE CONTROL
RECEIVER. To get the most from your remote, be sure to read the instructions and
familiarize yourself with the remote prior to use.
®
The PROMASTER BLUETOOTH
TIMER REMOTE CONTROL RECEIVER allows you
®
trigger your camera using your Bluetooth
enabled iPhone, iPad, or iPod Touch. Use a
ProMaster Camera Release Cable (separate purchase required) to connect this control to
connection between your "i" device and the control and
®
your camera, make the Bluetooth
you will be ready to take perfect photos in a variety of modes. Take pictures instantly, use
the timer mode, or select the scheduled timer mode which allows you set six different
timer exposure plans to meet your needs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promaster 7050

Summary of Contents for Promaster 7050

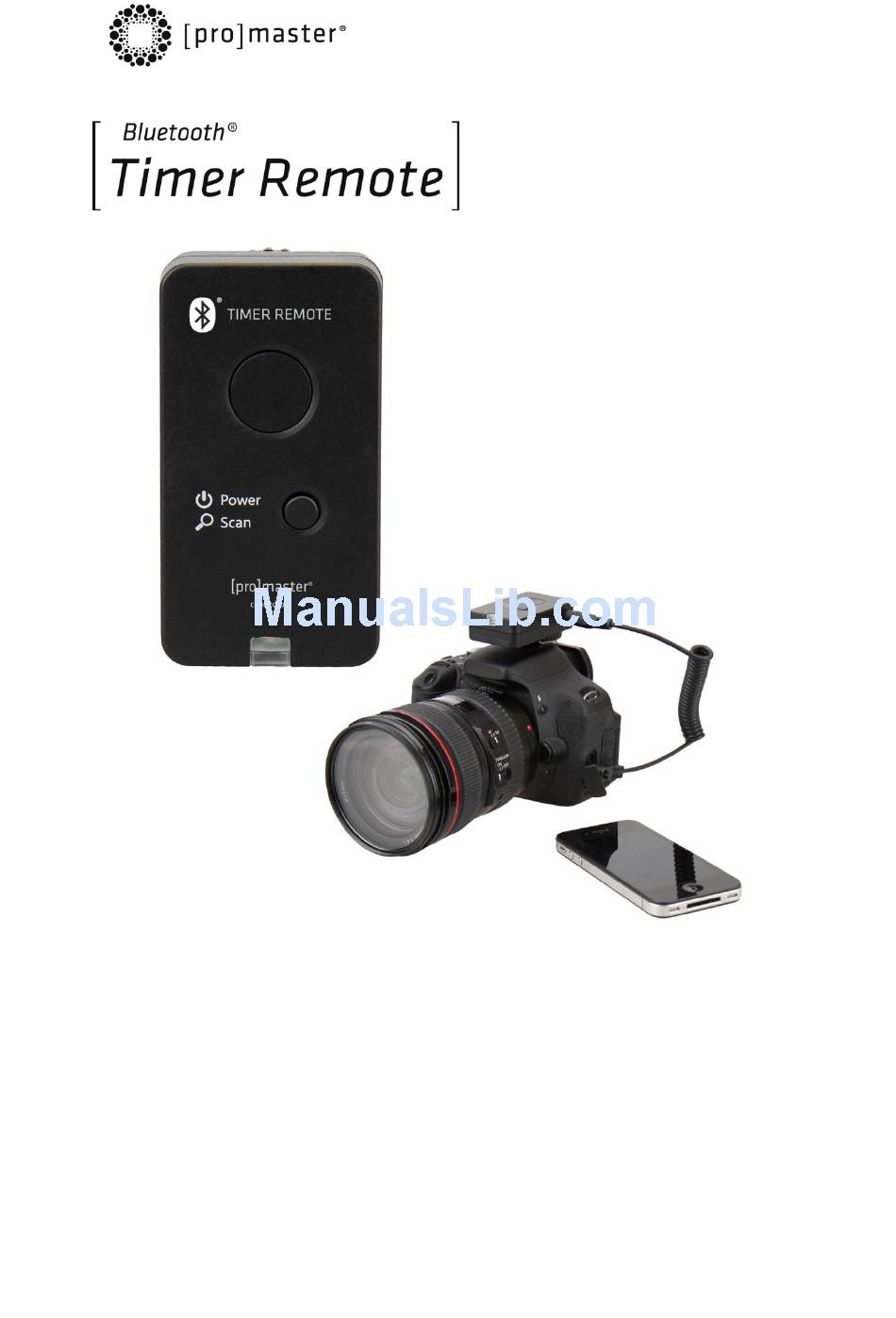

  • Page 1 ® trigger your camera using your Bluetooth enabled iPhone, iPad, or iPod Touch. Use a ProMaster Camera Release Cable (separate purchase required) to connect this control to connection between your “i” device and the control and ® your camera, make the Bluetooth you will be ready to take perfect photos in a variety of modes.

  • Page 2: Package Includes

    1 ea. Remote Control Receiver  2 ea. AAA Batteries  User Manual Note: This remote REQUIRES the use of a ProMaster Camera Release Cable which is purchased separately for your specific camera. Parts Identification: ① Shutter button ② Power/Scan button ③...

  • Page 3: Replacing The Batteries

    ⑧ Remote socket Replacing the batteries To remove the battery cover, slide the cover in the direction of the “OPEN” sign. Insert the fresh batteries. Be sure to install the batteries in the correct orientation following the diagram inside the battery compartment. Installing the batteries in the reverse direction as this could cause the batteries to leak corrosive liquids, generate heat or explode.
  • Page 4 Slide the receiver gently into your camera’s hot shoe as shown below. Rotate the lock nut clockwise to tighten the receiver. Attach the mini plug connector of ProMaster Camera Release Cable to the receiver as shown. Plug the other end of the cable to the camera remote socket. (NOTE: The...
  • Page 5 Connect your “i” device to the receiver Controller Press Power/Scan button on the receiver for 3 seconds. The indicator will slowly flash red and the receiver is now powered on. Press Power/Scan button again and the indicator will flash green and be ready to connect with your “i” device. To turn off the receiver, press Power/Scan button for 3s, the indicator will rapidly flash red three times and then power off.
  • Page 6 On your “i” device ① Turn on your “i” device and select the PROMASTER Timer Remote App. Press the SCAN icon. ②Then your device will search for the receiver and display it on the screen. Press the CONNECT icon to connect your device and the receiver.

  • Page 7: Operating Modes

    Operating modes: Manual mode (Focus, Shutter) Press FOCUS, the camera will focus. Press SHUTTER to take a photo. Timer Remote mode Option Description Supported Setting Operates like the self timer on your camera. 0s to 99hrs 59min 59s DELAY The remote allows you to set any delay up to 900ms 99hrs 59min 59s 900ms.
  • Page 8 Press “DELAY”, “BULB”, “INTERVAL” and “#” icon to choose the delay time, bulb time interval time and exposure counts you want. Then press “START”. Pressing “START” transmits the instructions to the receiver. Press “STOP” to stop the timer. If you press “START” again, the timer resets to the beginning of the program.
  • Page 9 Scheduled Timer Remote mode The Scheduled Timer Remote mode allows you to set a specified future exposure time accurate to second. You may set up to six different future exposure plans. Press Schedule 01 to go to the first exposure plan and so on. Note: The maximum delay time is 100 hours (approx.

  • Page 10: Care And Storage

    Fairfield, CT 06825 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ProMaster is under license. Other trademarks and trade names are those of their respective owners.
