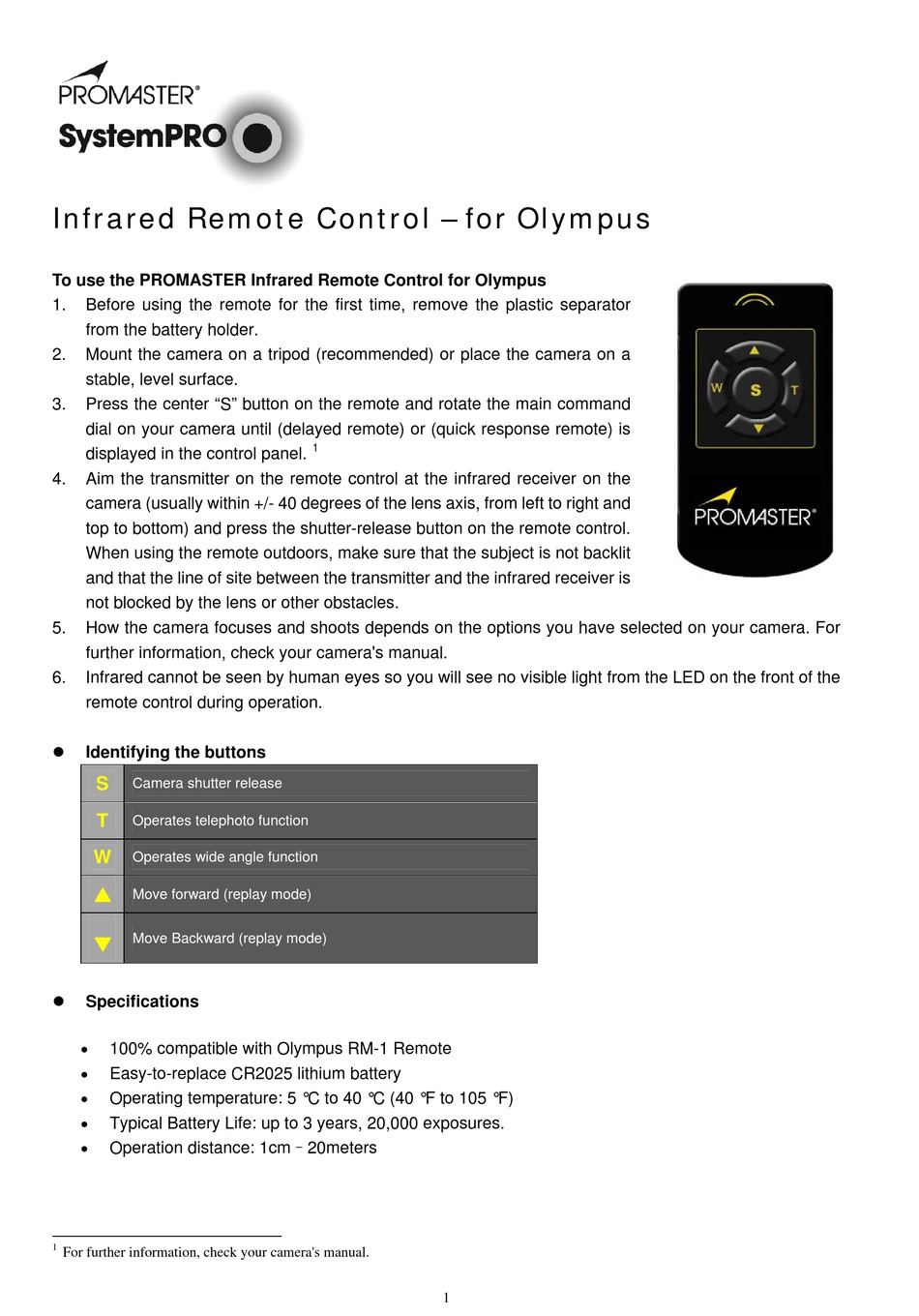

Promaster SystemPRO Quick Start Manual

Infrared Remote Control – for Olympus
To use the PROMASTER Infrared Remote Control for Olympus
1. Before using the remote for the first time, remove the plastic separator
from the battery holder.
2. Mount the camera on a tripod (recommended) or place the camera on a
stable, level surface.
3. Press the center "S" button on the remote and rotate the main command
dial on your camera until (delayed remote) or (quick response remote) is
displayed in the control panel.
4. Aim the transmitter on the remote control at the infrared receiver on the
camera (usually within +/- 40 degrees of the lens axis, from left to right and
top to bottom) and press the shutter-release button on the remote control.
When using the remote outdoors, make sure that the subject is not backlit
and that the line of site between the transmitter and the infrared receiver is
not blocked by the lens or other obstacles.
5. How the camera focuses and shoots depends on the options you have selected on your camera. For
further information, check your camera's manual.
6. Infrared cannot be seen by human eyes so you will see no visible light from the LED on the front of the
remote control during operation.


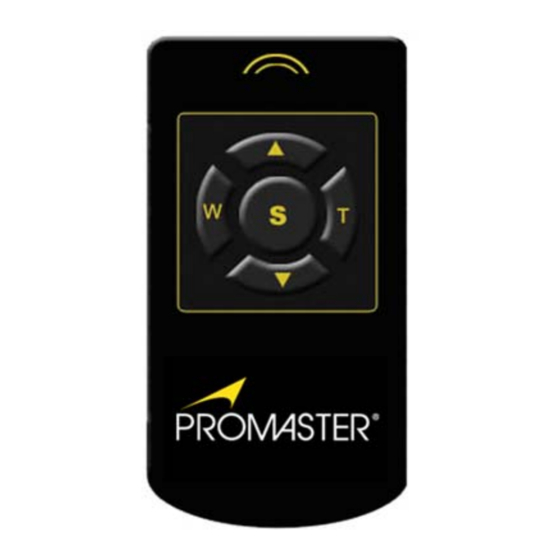

Identifying the buttons
S
Camera shutter release
T
Operates telephoto function
W
Operates wide angle function
Move forward (replay mode)
Move Backward (replay mode)

Specifications

100% compatible with Olympus RM-1 Remote

Easy-to-replace CR2025 lithium battery

Operating temperature: 5 °C to 40 °C (40 °F to 105 °F)

Typical Battery Life: up to 3 years, 20,000 exposures.

Operation distance: 1cm–20meters
1
For further information, check your camera's manual.
