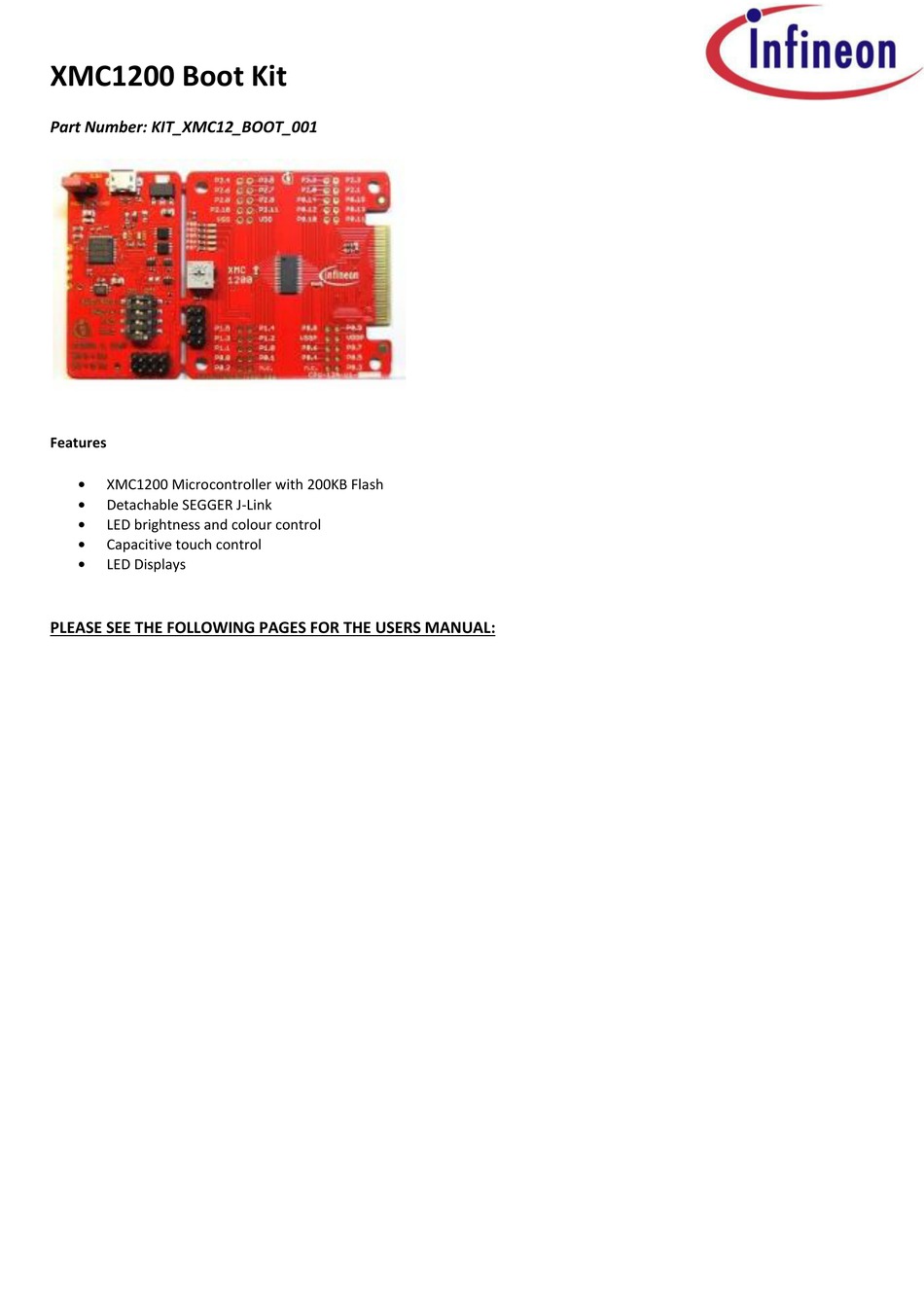

- Page 1 XMC1200 Boot Kit Part Number: KIT_XMC12_BOOT_001 Features XMC1200 Microcontroller with 200KB Flash Detachable SEGGER J-Link LED brightness and colour control Capacitive touch control LED Displays PLEASE SEE THE FOLLOWING PAGES FOR THE USERS MANUAL:...
- Page 2 X MC12 00 CPU Car d For XMC1000 Family CPU- 12A- V1 XMC1200 CPU Card Boar d User ' s Manu a l Revision 2.0, 2013-12-18 Micr ocont r ol ler...
- Page 3 Infineon Technologies components may be used in life-support devices or systems only with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain and/or protect human life.
- Page 4 CPU-12A-V1 XMC1200 CPU Card Revision History Page or Item Subjects (major changes since previous revision) Revision 2.0, 2013-12-18 14, 15 Change C210 to 4.7uF Trademarks of Infineon Technologies AG AURIX™, C166™, CanPAK™, CIPOS™, CIPURSE™, EconoPACK™, CoolMOS™, CoolSET™, CORECONTROL™, CROSSAVE™, DAVE™, DI-POL™, EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPIM™, EconoPACK™, EiceDRIVER™, eupec™, FCOS™, HITFET™, HybridPACK™, I²RF™,...
-
Page 5: Table Of Contents
CPU-12A-V1 XMC1200 CPU Card Table of Contents Overview ............................7 Key Features ..........................7 Block Diagram..........................7 Hardware Description ........................8 Power Supply ..........................8 Reset .............................. 9 Clock Generation ..........................9 Boot Option ............................. 9 Debug Interface and virtual com port ....................9 LED .............................. - Page 6 Potentiometer Circuit ........................10 Figure 6 Pinout of the 2x30 pin edge connector ................... 11 Figure 7 Schematic 1 of 2 XMC1200 CPU Card ..................13 Figure 8 Schematic 2 of 2 XMC1200 CPU Card ..................14 Figure 9 XMC1200 CPU Card layout and geometry ..................15 Board User's Manual Revision 2.0, 2013-12-18...
- Page 7 CPU-12A-V1 XMC1200 CPU Card List of Tables Table 1 Debug connector X201 ........................9 Table 2 LEDs Pinout ..........................10 Table 3 XMC1200 CPU Card ........................15 Board User's Manual Revision 2.0, 2013-12-18...
-
Page 8: Overview
CPU-12A-V1 XMC1200 CPU Card Introduction This document describes the features and hardware details of the XMC1200 CPU Card. This board is mounted ® -M0 based XMC1200 Microcontroller from Infineon Technologies AG and part of Infineon’s with ARM Cortex XMC1000 offering of Kits... -
Page 9: Hardware Description
VDD and GND connection on board. The XMC1200 device can operate by power supply of 1.8V till 5.5Vdc. On this board, 5Vdc is used to power the XMC1200 device. However, if user wants to power the XMC1200 device with 3.3Vdc, then, set Jumper at JP201 to 3.3V side. -
Page 10: Reset
CPU-12A-V1 XMC1200 CPU Card Reset XMC1200 does not have a reset pin, hence, user needs to unplug and replug the USB cable to achieve power- on with master reset to the XMC1200 device. Clock Generation No external clock source is required. XMC1200 has two internal oscillators DCO1 and DCO2. DCO1 has a clock output of 64MHz. -
Page 11: Potentiometer
P0.7 Potentiometer XMC1200 CPU Card provides a potentiometer R110 for ease of use and testing of the on-chip analog to digital converter. The potentiometer is connected to the analog input P2.5. The analog output of the potentiometer is the same the VDDP voltage supplied to the XMC1200 device. -
Page 12: Figure 6 Pinout Of The 2X30 Pin Edge Connector
CPU-12A-V1 XMC1200 CPU Card Figure 6 Pinout of the 2x30 pin edge connector Board User's Manual Revision 2.0, 2013-12-18... -
Page 13: Production Data
CPU-12A-V1 XMC1200 CPU Card Production Data Schematics This chapter contains the schematics for the XMC1200 CPU Card: Figure 7: CPU, Pin Headers, Potentiometer and LED and 60pin Edge connector Figure 8: On-board Debugger, Power Supply Board User's Manual... -
Page 14: Figure 7 Schematic 1 Of 2 Xmc1200 Cpu Card
CPU-12A-V1 XMC1200 CPU Card Figure 7 Schematic 1 of 2 XMC1200 CPU Card Board User's Manual Revision 2.0, 2013-12-18... -
Page 15: Figure 8 Schematic 2 Of 2 Xmc1200 Cpu Card
CPU-12A-V1 XMC1200 CPU Card Figure 8 Schematic 2 of 2 XMC1200 CPU Card Board User's Manual Revision 2.0, 2013-12-18... -
Page 16: Layout And Geometry
CPU-12A-V1 XMC1200 CPU Card Layout and Geometry Figure 9 XMC1200 CPU Card layout and geometry Bill of Material Table 3 XMC1200 CPU Card Value Device Reference Designator 100nF/10V/10%/0603 C101 Capacitor 220nF/10V/10%/0603 C102 Capacitor 220nF/10V/10%/0603 C103 Capacitor 22uF/10V/10%/0805 C201 Capacitor 10uF/10V/10%/0805... - Page 17 CPU-12A-V1 XMC1200 CPU Card Value Device Reference Designator 100nF/10V/10%/0402 C215 Capacitor SN74LVC2T45DCT IC202 Resistor SN74LVC1T45DCK IC203 Resistor SN74LVC1T45DCK IC204 Resistor SN74LVC2T45DCT IC205 Resistor SN74LVC1T45DCK IC206 Resistor BLM18PG600 L201 Ferrite Bead LED-RED/D/0603 LED101 Red ChipLED LED-RED/D/0603 LED102 Red ChipLED LED-RED/D/0603 LED103...
- Page 18 CPU-12A-V1 XMC1200 CPU Card Value Device Reference Designator LED-GN/D/0603 V201 ChipLED LED-R/D/0603 V202 ChipLED ESD8V0L2B-03L V204 Diode ZX62-AB-5PA X202 Micro-USB Microcontroller, XMC1200-T038 IC101 Infineon 3V3 regulator, IFX25001MEV33 IC201 Infineon Microcontroller, XMC4200_QFN48 U201 Infineon BAT60A V203 Diode BRIDGE10X10 BR101 BRIDGE10 BRIDGE10X10...
- Page 19 . i n f i n e o n . c o m Published by Infineon Technologies AG...
