3. Install Motherboard

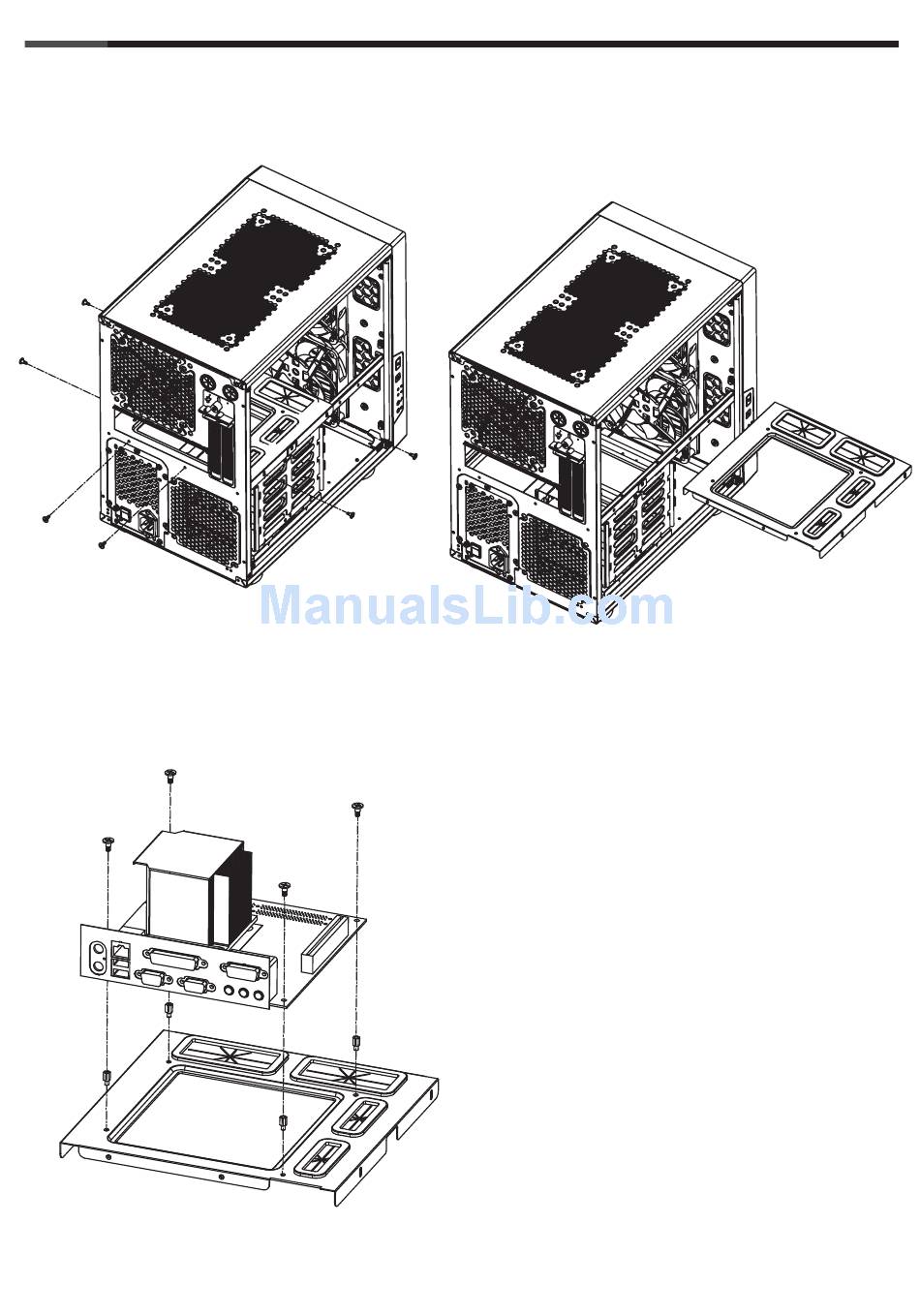

3-1 Unscrew the screws to take out the motherboard plate.
3-2 Install the CPU , CPU cooler and DRAM modules onto motherboard before install motherboard
into Chassis.
3-3 Secure motherboard stand-offs on mother-
board plate , to place the motherboard
onto stand-offs and secure with screw B.
* screw B
7
