Installation, Operation
and Maintenance Manual

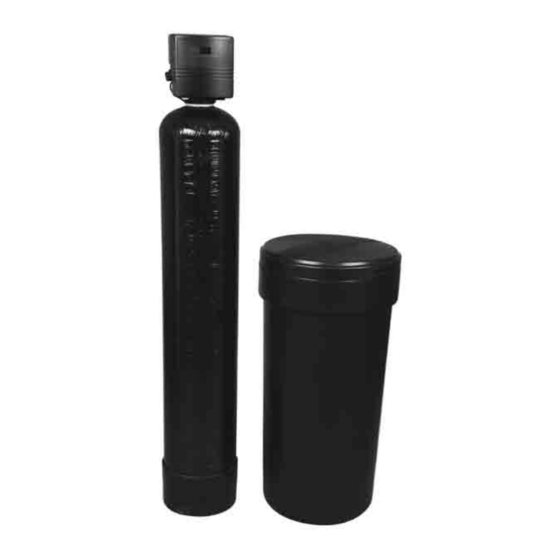

Series PWSYS-WH-SOFT-PRO-SE - 30K - 90K
Water Softener Systems
PURE WATER
Important
Please read the entire manual before proceeding with the
installation and startup. Your failure to follow any attached
instructions or operating parameters may lead to the product's
failure.
Save manual for future reference
Refer to enclosed for operating parameters to ensure proper use
with your water supply.
PWSYS-SOFT-PRO-SE
Table of Contents
Important Safety Information - Read All . . . . . . . . . . . . . . . . . . . . . . . 2
Softener Anatomy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Control Start-up Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Softener Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Water Softener System Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Do not use with water that is microbiologically unsafe or
Note:
of unknown quality without adequate disinfection before or after
the system.
IOM-WQ-PWSYS-SOFT-PRO-SE
Pages
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watts PWSYS-WH-SOFT-PRO-SE - 30K
Summary of Contents for Watts PWSYS-WH-SOFT-PRO-SE - 30K
-
Page 1: Table Of Contents
IOM-WQ-PWSYS-SOFT-PRO-SE Installation, Operation and Maintenance Manual Series PWSYS-WH-SOFT-PRO-SE - 30K - 90K Water Softener Systems PURE WATER Important Please read the entire manual before proceeding with the installation and startup. Your failure to follow any attached instructions or operating parameters may lead to the product’s failure. -
Page 2: Important Safety Information - Read All
Caution: Read and follow the information in this manual to minimize the risk of electric shock or per- sonal injury. Important: If you are unsure about installing your Watts water softener, contact a Watts representative or con- sult a professional plumber. -
Page 3: Softener Anatomy
Softener Anatomy Item # DescrIptIon Valve Bypass Resin Tank Distributor Resin Salt Tank Lid Salt Tank Faceplate/Controls Not Shown Brine Valve Assembly... -
Page 4: Specifications
• Install the softener in a place where water damage is least likely to Frequency: 60Hz occur if a leak develops. Power consumption: 7 Watts Maximum • A 120VAC electrical outlet is needed to plug in the transformer. If the outlet is remote (up to 100 feet), use 18 gauge wire to connect. -
Page 5: Installation
Installation Use Step 10 to install rigid drain pipe. 10. To install a rigid drain pipe instead of tubing: 1. Turn off gas or electric supply to the water heater. • Remove the barbed fitting from the drain port. 2. Turn off the water supply to pipes to be cut and drain the house water pipes. - Page 6 Installation continued 14. Fully open two (2) cold (soft) water faucets near the water soft- ener. 15. Fully open the house main water shutoff valve. Observe a steady flow from both faucets. 16. Slowly, turn bypass valve back to the "service" position. Keep soft water faucets open.
-
Page 7: Control Start-Up Procedures
Control Start-up Procedures Service Control start-up, flushing/conditioning and programming proce- Cleaning Iron Out of the dures may be found in the control service manual included with your system. Water Softening System Control Service Manual: ProFlo SXT Downflow Brining Service The system is designed to remove minerals like calcium and magne- Manual sium from household water. - Page 8 Service continued Cleaning the Injector and Screen 1) Turn off water supply to conditioner: a) If the conditioner installation has a “three valve” by-pass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. b) If the conditioner has an integral by-pass valve, put it in the by-pass position.
-
Page 9: Troubleshooting
Troubleshooting problem cause solutIon 1. Softener Fails To Regenerate. A. Electrical Service to Unit has been Interrupted. A. Assure Permanent Electrical Service (Check Fuse, Plug, Pull Chain or Switch). B. Timer Programming Bad (Improper Programming). B. Check Programming and Reset as Needed. 2. -
Page 10: Water Softener System Parts List
Parts List BY PASS & YOKE IN INSTALLATION KIT Item #5 is to be cut to .5" (12.5mm) above top of tank- .63" (16.1mm) below top of tank Item # DescrIptIon Not Shown-See Pro SE Control Valve Assembly Service Manual Brine Tank 4"... -
Page 12: Limited Warranty
WarrantY: Certain Watts Pure Water products come with a limited warranty from Watts Regulator Co. Other products may have no warranty or are covered by the original manufacturer’s warranty only. For specific product warranty information, please visit www.watts.com or the published literature that comes with your product. Any remedies stated in such warranties are exclusive and are the only remedies for breach of warranty.
