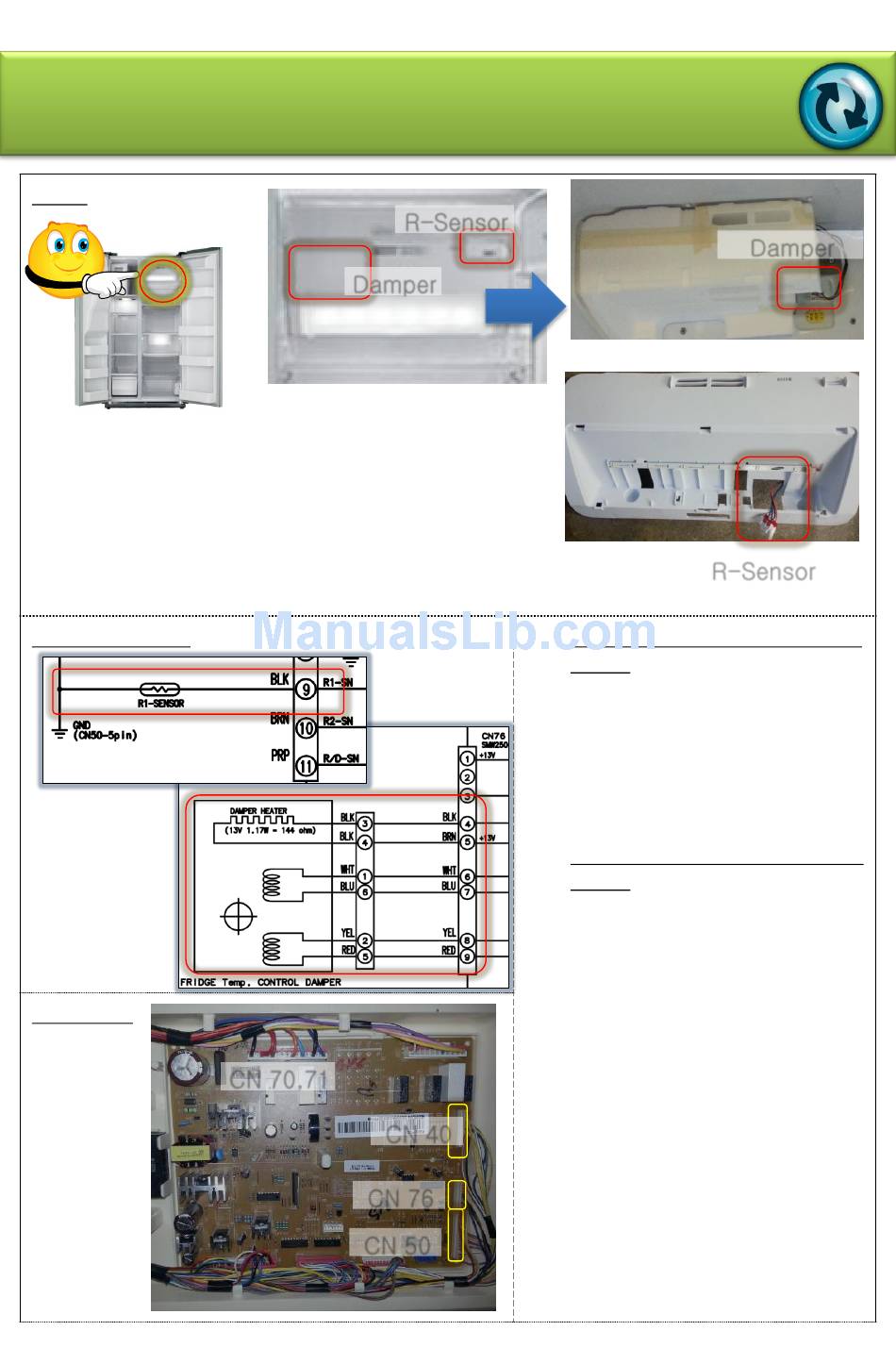

R Sensor / F Damper Motor - Samsung RS261M Repair Manual

Tip 2-4-3. Inspect self-diagnosis test
 R Sensor / F Damper Motor
Block
① Disassemble R Ice Maker Screw top
② Inspect Cover Multi Front disassembly
③ Inspect Evap Cover disassembly
Circuit diagram
Main PBA
Damper
CN 70,71
CN 40
CN 76
CN 50
R-Sensor
① When the R cabinet Sensor is
failure
: Inspect disassembled Cover
Damper blue 2-Wire
connector
-Main PBA : CN40 No.9(BLK)
+ CN50 No.5(GRY)
② When the R Damper Motor is
failure
: Inspect disassembled Cover
Damper 6-Wire connector
-Main PBA : CN76 No.4(BLK)
/ 5(BRN) / 6~9
- 13/47 -
Damper
R-Sensor
