Reverse Polarity Locks (5-Wire Door locks)
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will rest at ground and register positive
voltage when the Lock and Unlock switches are activated.

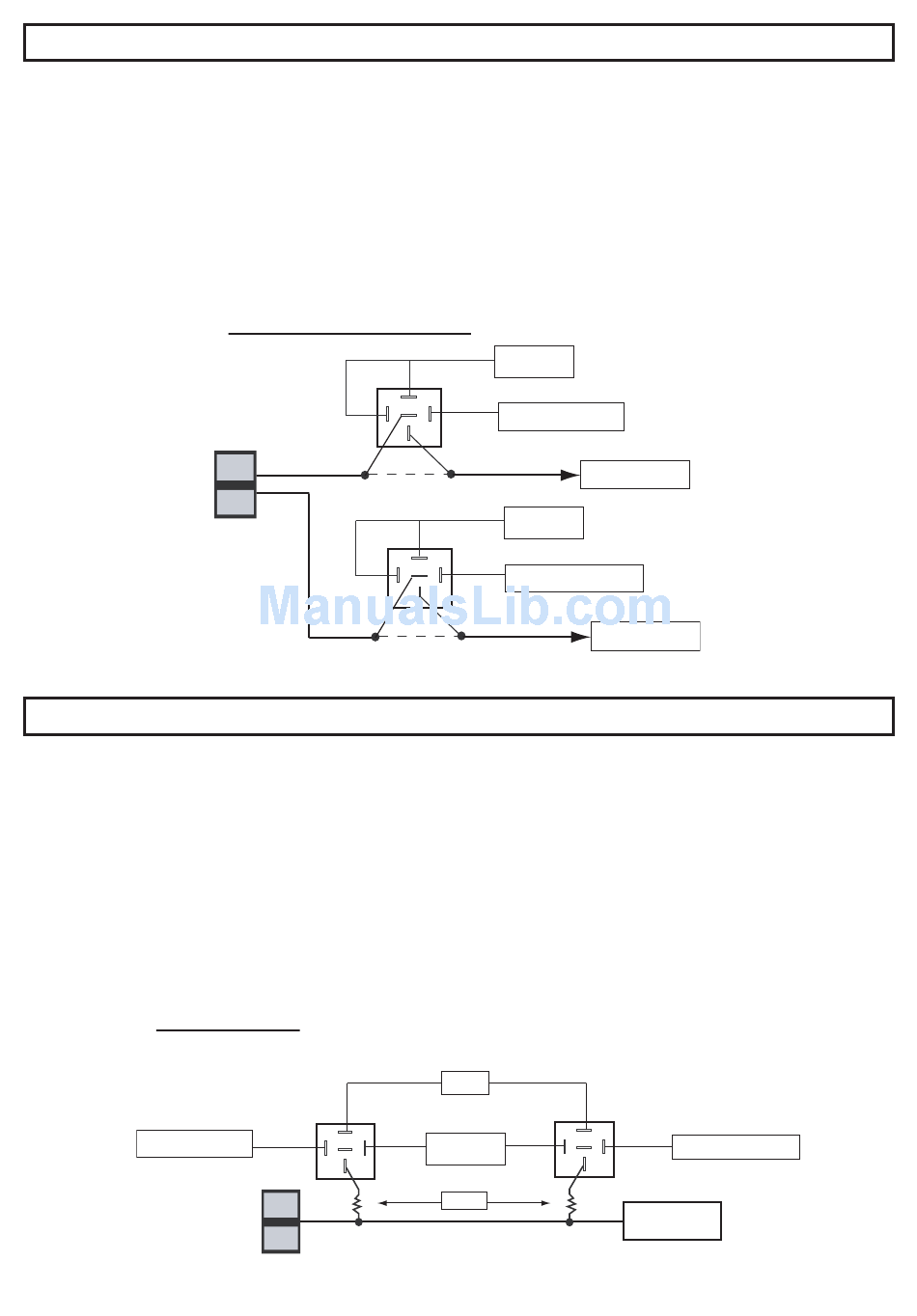

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram
below using (2) SPDT relays (not supplied).
Negative Multiplexed Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: This wire will show variable ground when the switch is activated.
Please consult the wire and location chart for specific resistor values for
your vehicle.
Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram
below using (2) SPDT relays (not supplied).
Multiplex Locks:
GREEN (-) Lock Output
