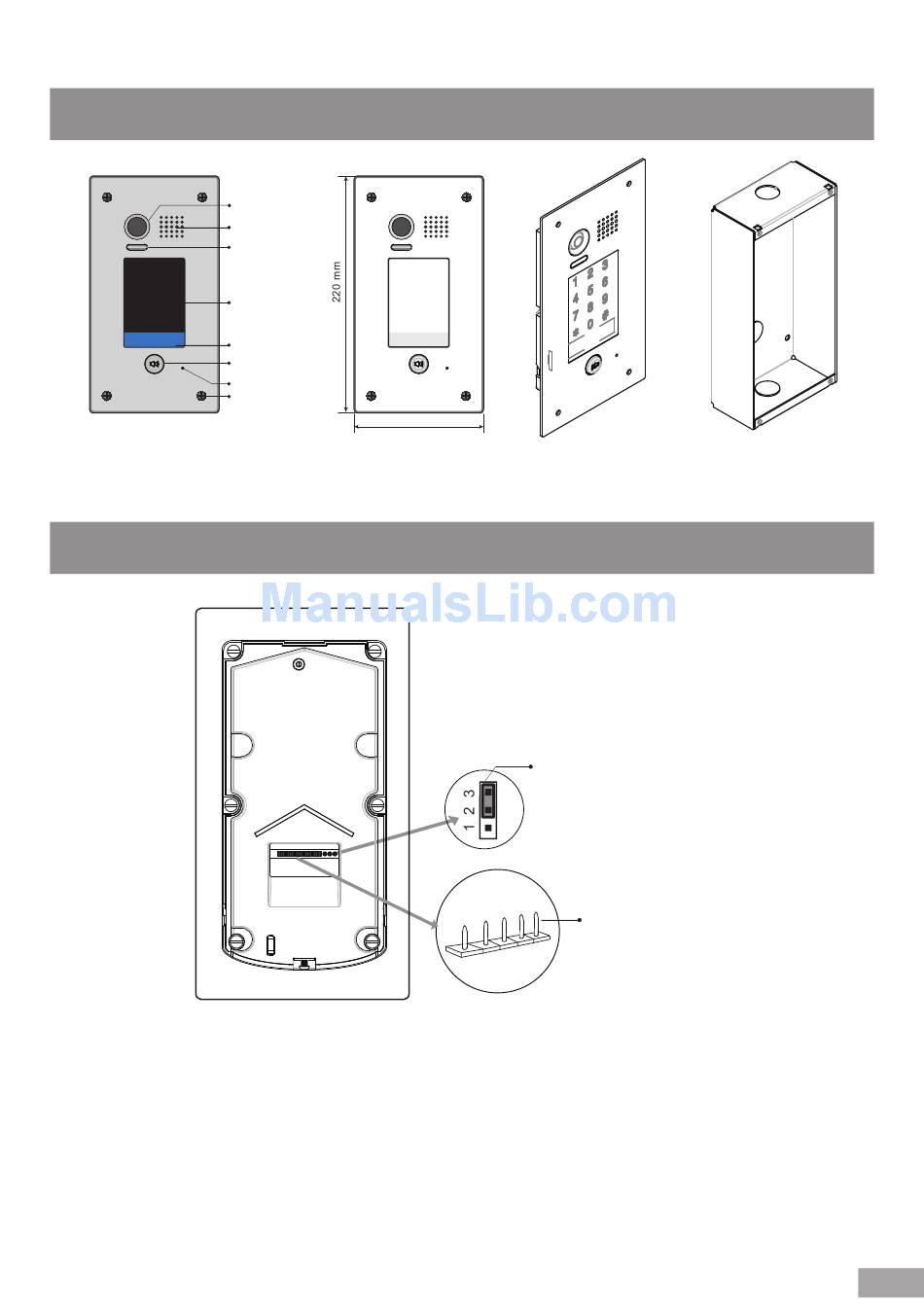

1.Parts and Functions

Camera Lens
Speaker
Night Light
1 2 3
4 5 6
Touch Sensitive
7 8 9
Digital Keypad
0 #
*
Nameplate
Call Button
Microphone
Screws for panel
mounting
DT601FE/KP

2.Terminal Descriptions

• Lock Control Jumper: To select the lock type.
• Main Connect Port: To connect the bus line and the electronic locks.
• BUS: Connect to the bus line, no polarity.
• PL: External lock power input, connect to the power positive(power +).
• S+: Lock power(+) output.
• S-: Lock power(-) output, connect to the power(-) input of locks(only when using the door
station to power the locks, if using the external power supply for the locks, the S- will not be
connected).
1 2 3
4 5 6
7 8 9
0 #
*
120 mm
Side View
Lock Control Jumper
S -
P L S +
B U S
Mounting box
Main Connect Port
