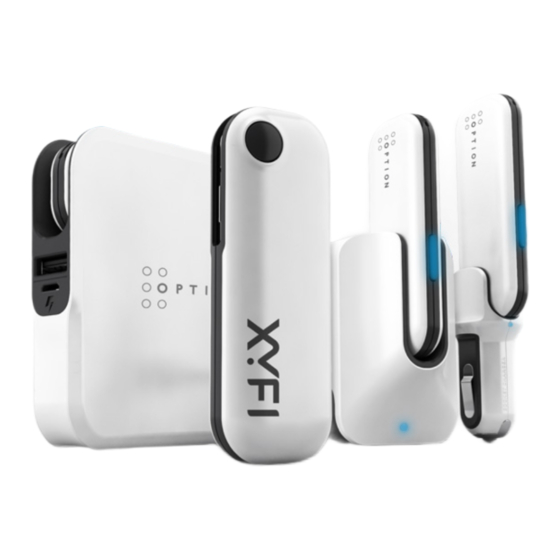

Option Audio Xyfi User Manual
  1. Manuals
  2. Brands
  3. Option Audio Manuals
  4. Wireless Router
  5. XYFI
  6. User manual

Option Audio Xyfi User Manual

Hide thumbs Also See for Xyfi:
Table of Contents

Advertisement

Quick Links





XYFI: USERGUIDE


English
V3.0.0

Advertisement

Table of Contents
loading

Related Manuals for Option Audio Xyfi

Summary of Contents for Option Audio Xyfi

  • Page 1             XYFI: USERGUIDE English V3.0.0...

  • Page 2: Quick Start

    User Guide Do you need information about how to configure the XYFI, or how to change your WiFi password? Or do you want to know how to set up the access mode? You will find it all in the User Guide!

  • Page 3: Insert Sim Card

    1.2 Power Up XYFI For XYFI to be able to connect to any Mobile or WiFi networks, it needs to be switched on. Before you connect it to a power source, you need to fully extend the unique USB connector (180 degrees) by pushing the button on the top of the XYFI.

  • Page 4: Status Bar

    2.1 Connection Bar On the top left of the screen you can always see the type of connection XYFI is currently using. The Mobile Network connection is shown to the far left and shows whether you are in range of the network and can connect to internet.

  • Page 5: Wifi Network

    The signal strengths indicators move up as the strength of the signal increases and down as the signal decreases (only shown if you are registered to a network). To increase the signal strength of your XYFI , try to move it slightly, or to move it towards a window if you are connecting from inside a building.

  • Page 6: Active Users

    Options for adding a WPS device: Push button: You can either physically press the (LED) button on XYFI for 3 seconds or press the 'OK' button (soft button) in the administration pages. Then press the WPS button on the device you want to connect, and they will start pairing.

  • Page 7: Personal Hotspot

    3.1 Personal Hotspot The XYFI is your Personal HotSpot. Normally its settings 'out of the box' are just fine but on these pages you can adjust various things to make it yours, tweak its performance and security. Hotspot WiFi Settings Advanced Settings 3.1.1 Hotspot WiFi Settings...

  • Page 8: Mobile Network Settings

    Manual - if you activate the manual option, the XYFI shows you a list of the currently available networks. You can then decide which network you want to use or ignore by clicking on the box next to the respective provider. The list of available networks can be updated at any time by clicking on the 'Scan' button.

  • Page 9: Connection Method

    (physically), by pushing the LED button for less than 1 second. Automatic upon traffic: XYFI will automatically connect when you attempt to send data via the Internet. Always connected: XYFI will connect to Internet as soon as it is powered up and will stay connected until it is powered down.

  • Page 10: Wifi Networks

    3.2.6 Unlock XYFI In case the XYFI is locked to a specific Internet Service Provider, it can be unlocked with a code that you need to get from your Internet Service Provider. Normally there are certain conditions that must be fulfilled to be able to unlock the device, but please contact your Internet Service Provider for details.
  • Page 11 If a user/device is in the 'Guest User' access mode, he/she is sent to the XYFI landing page for password entry allowing access to internet. If you want to change the Default access mode for new devices connecting to the XYFI it can be done at any time to either 'Hotspot User' or 'Guest User' in the 'Home Page'.

  • Page 12: Subnet Mask

    Admin IP Address Acronym for ‘Internet Protocol’ address. This is the address to access the admin pages of the XYFI. Type the IP address in a Web-browser address bar and the admin log in pages will appear. The default IP address is 172.22.2.1.
  • Page 13 WiFi enabled devices). Up to 8 devices can stream various media files from XYFI at the same time, letting everyone choose whatever they want to view, watch, or listen to. Additionally, XYFI can be connected to Internet (using WiFi or 3G), so any user can still browse the Internet while others are streaming.
  • Page 14 If you change the name and experience problems, change the name back. You cannot rename the name of the microSD card itself here. If you want to rename the microSD card please remove it from XYFI and insert it directly (or using adapter) in your Windows PC/Mac.

  • Page 15: File Sharing

    4.4 Settings XYFI can turn your microSD card into a drive you can share with all the users on your network with access over the web browser. This feature is a simple and convenient way to share files among everyone.

  • Page 16: Web Browser Requirements

    (minimum requirements can be seen below). 8.1 Cookies needs to be enabled Your Web Browser cannot have Cookies disabled. In order for your to be able to log in to XYFI's admin pages you need to enable cookies in your Internet browser.
  • Page 17 You do this by pressing the LED/WPS ('side') button on the actual XYFI device and then plugging it into a power outlet. The LED/WPS button must be kept pressed until it is restored. Another possibility is to do this via the administration pages.
  • Page 18 XYFI will automatically join known networks connected to the Internet if this is enabled. Important! It will not connect to any networks that have no Internet access. If you do not want XYFI to automatically connect to known networks or networks with no access to the Internet, this needs to be disabled.

  • Page 19: Access Mode

    If you are connecting to a WiFi Network using the manual method, the below icon will be shown: 10.4 Access Mode In order to increase the security level for the XYFI, you can set the default access mode, number of maximum users and a guest Password: Default Access Mode - Defines the access mode for a new device connecting to your XYFI: 1) Hotspot User: Typically, your own laptop and personal WiFi enabled devices (e.g.
  • Page 20 Current Hotspot Access: Here you can see your current Hotspot Access mode. USB + Hotspot: All the devices with the access mode 'USB Only' & 'Hotspot User' (over WiFi) will be able to connect to XYFI. All devices with the access mode 'Guest User' will be blocked.
  • Page 21 WiFi enabled devices). Up to 8 devices can stream various media files from XYFI at the same time, letting everyone choose whatever they want to view, watch, or listen to. Additionally, XYFI can be connected to Internet (using WiFi or 3G), so any user can still browse the Internet while others are streaming.

  • Page 22: Admin Account

    Your XYFI uses the same technology as a mobile phone. It is important that you always obey all safety regulations related to mobile phone use. If you have any doubt about the safe operation of your XYFI you should remove the XYFI from the PC and seek advice from authorized personnel.
  • Page 23 Using a wireless devices on aircraft can cause interference and is illegal. Remove your XYFI if you intend to use your PC whilst in an aircraft. Do not use it when the plane is on the ground without permission from the aircraft crew.

  • Page 24: System Requirements

    Users concerned with the risk of Radio Frequency exposure may wish to limit the duration of their calls and to position the antenna as far away from the body as is practical. Wireless LAN France For 2.4GHz wireless LAN operation of this product, certain restrictions apply. This equipment may use the entire 2400 to 2483.5MHz frequency band (channels 1 through 13) for indoor applications.
