The 3D Converter Box supports Hot-Plugging of Devices. Devices can be connected in any order
and at any time. Follow the procedure below carefully to step through and view each stage of the
installation.
Please refer to the Appendix for more advanced connectivity options which handle multichannel
audio and other compressed audio formats.

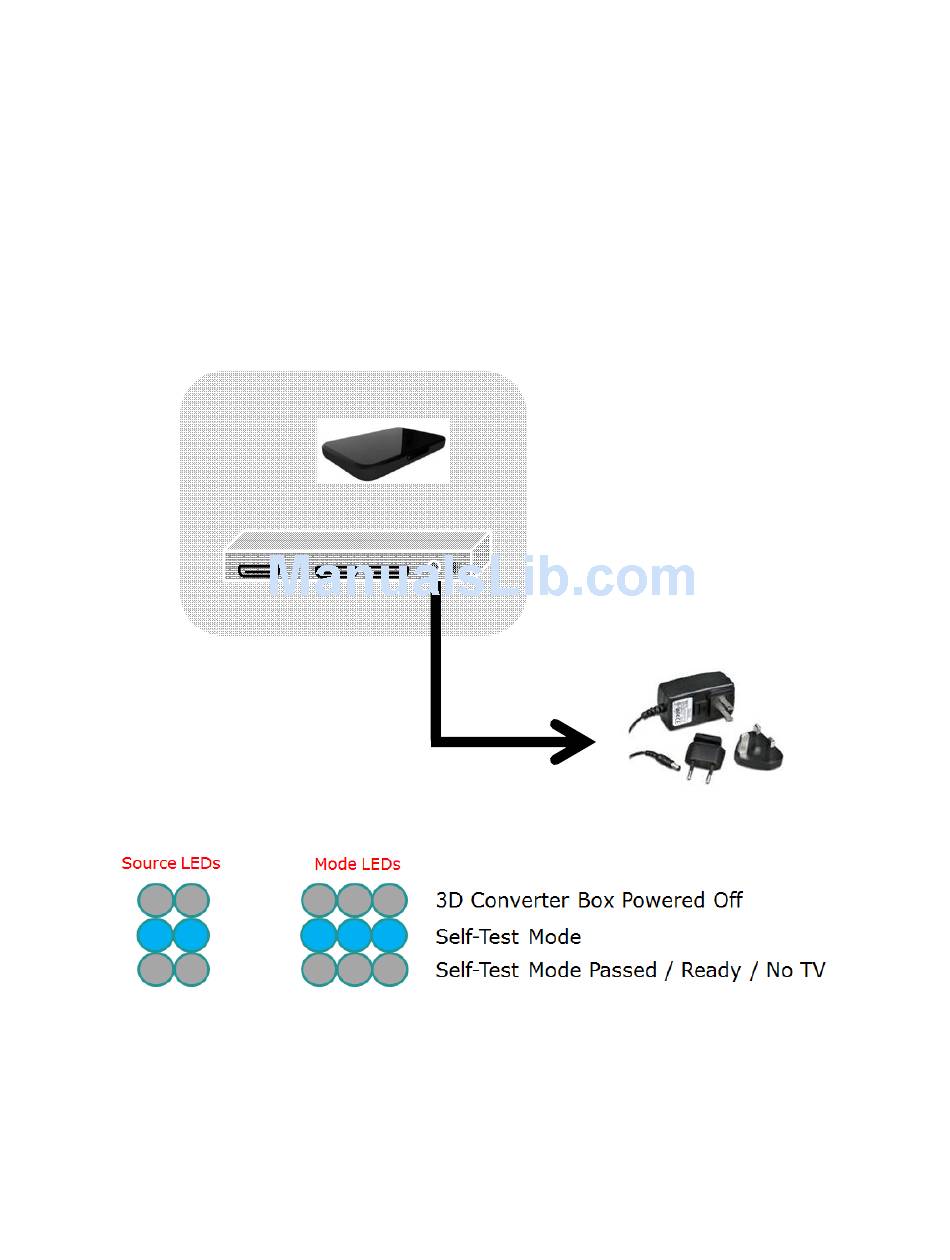

3.2 Step 1: Connect the 3D Converter Box Power Cable
1. Disconnect all cables and leads from the 3D Converter Box. Note that all LEDs on the
Front Panel of the 3D Converter Box are off.
2. Connect the 3D Converter Box power cable to the 3D Converter Box and plug in to a
mains outlet.
HDMI
OUT
3. All of the LEDs will light up briefly (self-test mode) and then they will turn off.
Your 3D Converter Box is now plugged in and functioning. It is now time to connect your TV!

Converter Box

HDMI HDMI
IN IN
1 2
