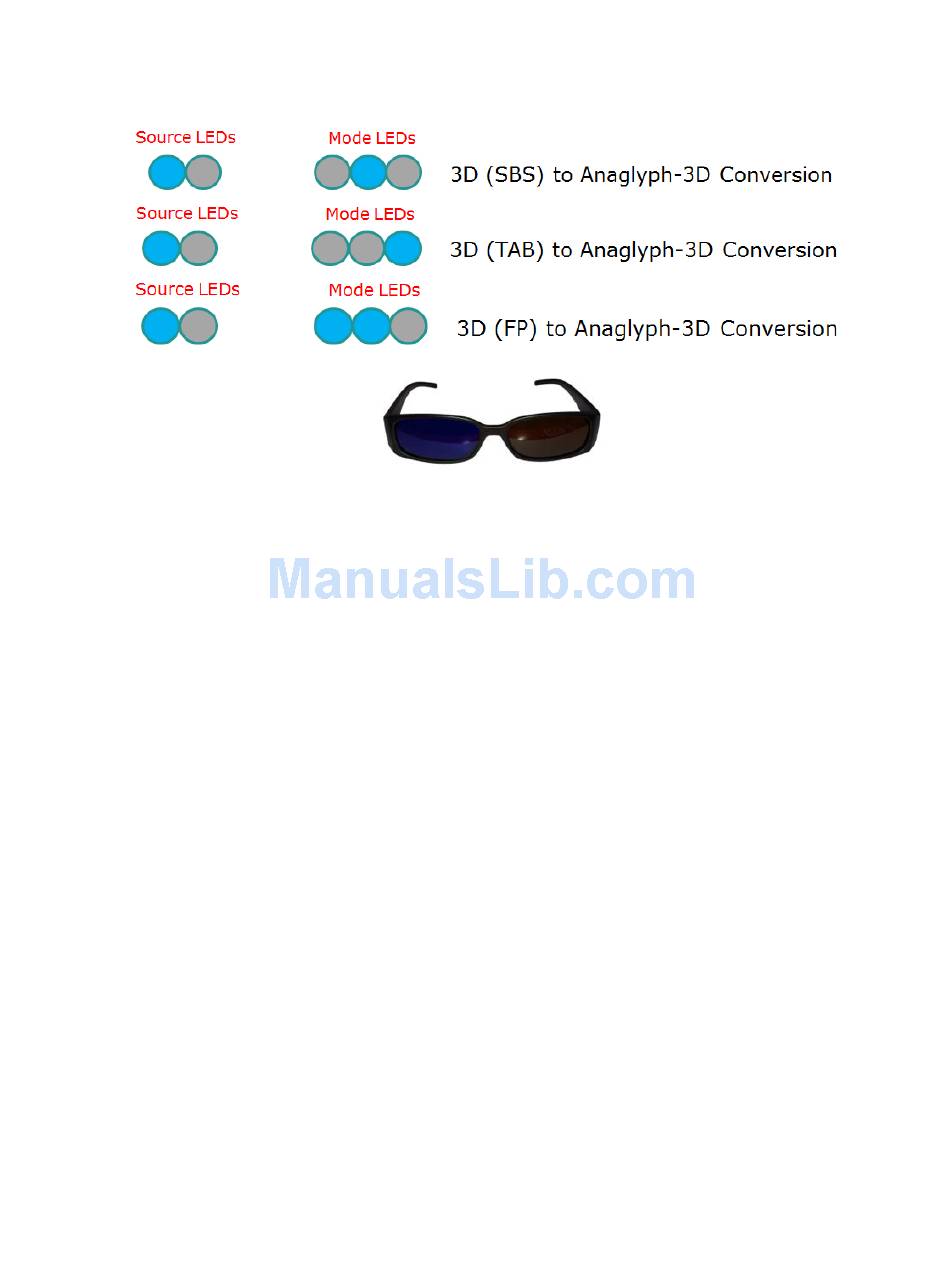

The LEDs on the front of the 3D Converter Box will show different patterns depending on the
3D Format that is currently being used.
4.2 Using the 3D Converter Box with other 3D Content e.g. Media Players
Other 3D Source Devices include: Media Players, some Set-Top-Boxes and some Gaming
Consoles
In this case the 3D Content may not be fully HDMI 1.4a compliant so the 3D Converter Box will
be unable to detect the 3D format. The user must choose the correct setting manually on the 3D
Converter Box to set the input 3D format.
4.2.1 Getting Ready
1. Ensure all connections are correct as described in the Installation section and the TV
is tuned to the appropriate HDMI channel.
2. The video content will now be playing on the screen
4.2.2 Usage
1. There are 4 Modes on the 3D Converter Box:
a. Bypass
b. 2D to Anaglyph-3D Conversion
c. 3D(Side-by-Side) to Anaglyph-3D Conversion
d. 3D (Top-and-Bottom) to Anaglyph-3D Conversion
2. Pressing the "Mode" Button on the front panel or on the Remote Control will switch
between a and b.
3. To access the other modes select the Mode option in the Main Menu. This allows the
user to select one of these modes and preview the effect on screen.
