Portable Wireless AP/Router

Advertisement

Table of Contents
loading

Related Manuals for Tenda W150M

Summary of Contents for Tenda W150M

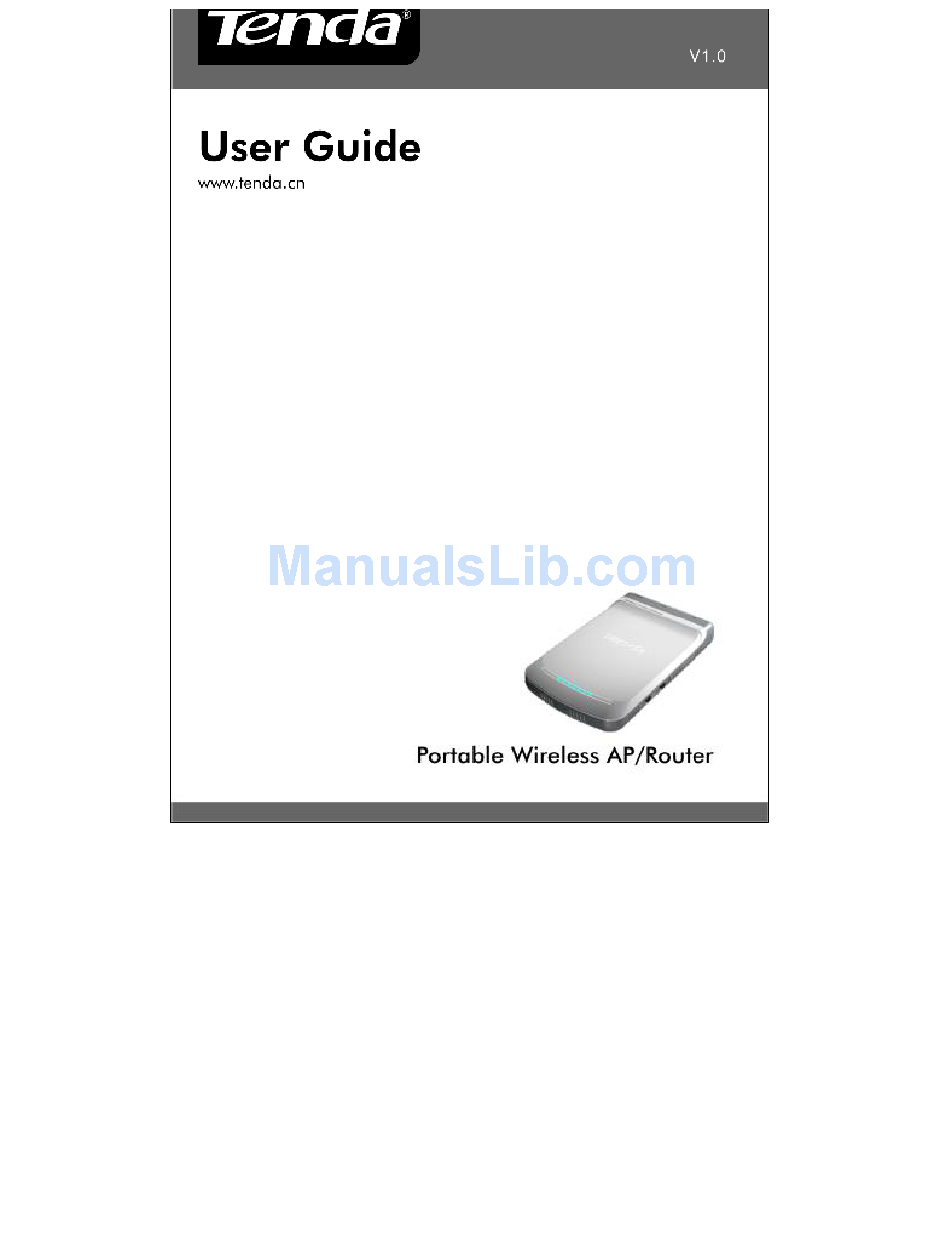

  • Page 1 Portable Wireless AP/Router...
  • Page 2 As the upgrade of software and hardware, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our product information, please visit our website at www.tenda.cn.

  • Page 3: Table Of Contents

    Portable Wireless AP/Router Content CHAPTER 1 PRODUCT OVERVIEW ............. 3 1.1 P ..............3 RODUCTION INTRODUCTION 1.2 P .................. 5 RODUCTS EATURES 1.3 P ................... 6 ACKAGE CONTENTS 1.4 LED I ............ 7 NDICATOR AND ESCRIPTION CHAPTER 2 HARDWARE INSTALLATION..........9 2.1 H ..............
  • Page 4 Portable Wireless AP/Router 7.6 C ................67 ONNECTION TATUS CHAPTER 8 DHCP SERVER ................68 8.1 DHCP S ..................68 ETTINGS 8.2 DHCP L ................. 69 IST AND INDING CHAPTER 9 VIRTUAL SERVER ..............70 9.1 P ............... 71 ANGE ORWARDING 9.2 DMZ S ..................

  • Page 5: Chapter 1 Product Overview

    1.1 Production introduction Thank you for purchasing Tenda W150M Portable Wireless AP/Router. W150M is a portable wireless AP/Router with up to 150Mbps transmission rate. It supports five working modes: wireless AP (access point), Client+AP, WDS+AP, WISP Router and Wireless Router.
  • Page 6 ADSL, Cable TV Networks. Having wireless AP and wireless Router function, W150M is equipped with a "Mode" button to switch the modes to achieve different wireless access. In addition, the device can be powered by an alternative power supply...

  • Page 7: Products Features

    Portable Wireless AP/Router The W150M is a solid choice for people with always-moving network needs in search of a fast, secure, easy-to-use, and feature-rich wireless network. 1.2 Products Features • Comply with IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.3 and IEEE 802.3u standards •...

  • Page 8: Package Contents

    • Support virtual Sever and DMZ host • Built-in firewall for hacker’s attack prevention 1.3 Package contents Please unpack the box and check the following items Ø One W150M portable wireless AP/Router Ø One power adapter Ø One quick installation guide Ø One CD Ø...

  • Page 9: Led Indicator And Port Description

    Portable Wireless AP/Router 1.4 LED Indicator and Port Description Front Panel and LED Indicator Show LED indicators description on front panel: (From L to R) Ø AP: Always blue indicates the device in AP working mode. Ø Client+AP: Always blue indicates the device in Client+AP working mode.
  • Page 10 Portable Wireless AP/Router WISP Router mode. Ø Wireless Router Always blue indicates the device in Wireless Router mode. Ø WPS: Blinking means the device is negotiating with the client in WPS mode. Ø LAN/WAN: Always blue indicates the Ethernet cable is well connected and blinking indicates it is transmitting data packets.

  • Page 11: Chapter 2 Hardware Installation

    Portable Wireless AP/Router WPS feature will be enabled and WPS indicator will be shown blinking. Press this button for 7 seconds, the settings configured in this device will be deleted and it will restore the settings to the default one. Ø...
  • Page 12 Portable Wireless AP/Router 1. Power Supply: Please use the included power adapter to power on the Router. (IMPORTANT: Use of a different power adapter could cause damage and void the warranty for this product.) Network Configuration A Connect the LAN port of the Router to the computer with an Ethernet cable as below.
  • Page 13 On your computer desktop right click “My Network Places” and select “Properties”. Right click “Wireless Network Connection” and select “View Available Wireless Network”. The entire wireless signal will be shown in the interface. Please select “Tenda”. If you don’t find it, please click “Refresh Network List”.

  • Page 14: Chapter 3 Working Modes Introduction

    Portable Wireless AP/Router C Click “Connect” button. Chapter 3 Working Modes Introduction This device has five working modes. You can change the modes depending on the applications. This chapter will introduce every mode in details. The default mode is AP (access point) mode.

  • Page 15: Client+Ap Mode

    Portable Wireless AP/Router router in use with an Ethernet cable (refer to 5-1 for detail setup). Then many wireless clients (generally the wireless network adapter) can access at the same time. For example, in a big hotel, connect the Router to the broadband access port with the Ethernet cable and you can share the internet with others.

  • Page 16: Wds+Ap Mode

    Portable Wireless AP/Router In this mode, the device can receive the wireless signal, meanwhile amplify the signal and extend the wireless signal coverage. The wired device can receive the signal via the Ethernet cable. This mode is called the wireless signal universal repeater mode which can amplify the source signal to enhance the signal.
  • Page 17 Portable Wireless AP/Router In this mode, the device can enhance the signal and extend the wireless coverage. It can bridge two local area networks or two computers and meanwhile amplify and transfer the signals. The WDS+AP mode is similar as WDS mode. Besides, many wireless clients can access when the device works as a bridge.

  • Page 18: Wisp Mode

    3.4 WISP Mode In this mode, you do not need to configure the signal transmitter but only to simply configure the W150M to amplify the wireless signal and multi computers can share the internet. The device supports DHCP function to assign IP addresses automatically and NAT function.

  • Page 19: Wireless Router Mode

    Portable Wireless AP/Router 3.5 Wireless Router Mode In this mode, the device can be worked as the router with wireless NAT function and DHCP sever. The laptops can get IP addresses automatically which assigned by the DHCP sever. When the RJ45 port connects to the broadband access, the laptops can share the internet at the same time.

  • Page 20: How To Set The Wired Network Configurations

    Portable Wireless AP/Router (Please refer to chapter2.), the following steps will assist you to set the network configurations for you computer. 4.1 How to Set the Wired Network Configurations 4.1.1. On your computer desktop right click “My Network Places” and select “Properties” (take Windows XP as an example).
  • Page 21 Portable Wireless AP/Router 4.1.2. Right click “Local Area Network Connection” and select “Properties”. If you enable the wireless connection, please select “Wireless Network Connection”. 4.1.3 Select “Internet Protocol (TCP/IP)” and click “Properties”.
  • Page 22 Portable Wireless AP/Router...

  • Page 23: Login To The Web Interface

    Portable Wireless AP/Router 4.1.4 Select “Using the following IP address” and input the IP address. IP address: 192.168.2.XXX (XXX is a number from 2~254) 4.2 Login to the Web Interface After you set you computer as 4.1, you can follow the below steps to access the Router’s web interface.
  • Page 24 Portable Wireless AP/Router 4.2.2. Input the “admin” in both User Name and Password. Click “OK”. 3. If you enter the correct user name and password, you can enter the router’s web interface.

  • Page 25: Chapter 5 Working Modes Setup Wizard

    Portable Wireless AP/Router Chapter 5 Working Modes Setup Wizard 5.1. AP mode In this default mode, the device can convert the wired and wireless signal which is the center access point for few clients (generally wireless network adapter). For example, in a big hotel, connect the Router to the broadband access port with the Ethernet cable and configure your computer to obtain an IP address automatically and then you can share...
  • Page 26 Portable Wireless AP/Router This section guides you how to connect wireless client to the access point, we will guide you step by step. Please connect the device as follows. Tip: Routers in hotels support DHCP function which can assign IP addresses automatically. You only need to...

  • Page 27: Client+Ap

    Portable Wireless AP/Router configure you computer to obtain IP address and DNS sever automatically to access the internet. (Setting ways refer to 4.1.) 5.2. Client+AP Log on the web-based interface as chapter 4 and then configure the mode as below. 5.2.1Select “Client+AP”, click “Setup Wizard”...
  • Page 28 Portable Wireless AP/Router ² SSID SSID (Service Set Identifier) is the unique name of the wireless network. Input the SSID of the AP you want to connect. ² MAC Address: The Router’s physical MAC address as seen on your local network is unchangeable. Input the MAC address of the AP you want to connect.

  • Page 29: Wireless Basic Setting

    Portable Wireless AP/Router the same as the AP. More details please refer to the Wireless Security Settings chapter. We recommend you “Scan” the access points and then select the SSID in your scanned SSID list for convenience. Click “Next” to the following interface. 5.2.3.
  • Page 30 Portable Wireless AP/Router to connect with the AP at the maximum speed of 54Mbps. 11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed. 11b/g/n mode: Allow 11b/g/n-compliant client device to connect with...

  • Page 31: Wireless Security Settings

    Portable Wireless AP/Router ² Extend Channel To increase data throughput of wireless network, the extension channel range is used in 11n mode. ² Channel Bandwidth Select the channel bandwidth to improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M;...

  • Page 32: Wds+Ap Mode Setup Wizard

    Portable Wireless AP/Router Mode” and AES for “WPA Algorithms.” Input 8 ~ 63 numbers, letters, and symbols for pass phrase. Click “Next” to save the configuration. More details please refer to the following chapter. Click “Apply” to save the configurations and the router will be rebooted automatically.
  • Page 33 Portable Wireless AP/Router 5.3.2.Configure the parameters. ² AP MAC Address: Input the MAC address of the terminal wireless device. Wireless MAC address also can be named as BSSID. The terminal wireless device can be an AP with WDS function or a wireless router. ²...
  • Page 34 Portable Wireless AP/Router must be the same as the terminal device. ² Encrypt Type: The encrypt type security mode you set should be the same as the terminal device. More details please refer to the Wireless Security Settings chapter. We recommend you “Scan” the access points and then select the SSID in your scanned SSID list for convenience.
  • Page 35 Portable Wireless AP/Router 11g mode Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps. 11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed.

  • Page 36: Wisp Mode

    Portable Wireless AP/Router of wireless access point. ² Extend Channel To increase data throughput of wireless network, the extension channel range is used in 11n mode. ² Channel Bandwidth Select the channel bandwidth to improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M;...
  • Page 37 Portable Wireless AP/Router Log on the web-based interface as chapter 4 and then configure the mode as below. 5.4.1. Select “WISP”, click “Setup Wizard” and “Next” button. 5.4.2. Configure the parameters ² SSID SSID (Service Set Identifier) is the unique name of the wireless network.
  • Page 38 Portable Wireless AP/Router as seen on your local network is unchangeable. Input the MAC address of the AP you want to choose. Sometimes, MAC address is also named BSSID. (BSSID Basic Service Set Identifier of wireless network. In IEEE802.11, BSSID is the MAC address of wireless access point.) ²...
  • Page 39 Portable Wireless AP/Router ² Network Mode Select one mode from the following. The default is 11b/g/n mode. 11b mode Allow the wireless client to connect with the device in 11b mode at the maximum speed of 11Mbps. 11g mode Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps.
  • Page 40 Portable Wireless AP/Router connect with with auto-negotiation speed. ² SSID SSID (Service Set Identifier) is the unique name of the wireless network. Wireless client must input the same SSID as the device to access. ² Channel: Specify the effective channel (from 1 to 13\Auto) of the wireless network.

  • Page 41: Wireless Router Mode

    Portable Wireless AP/Router Click “Next” to save configurations. Note: We suggest you do not change the channel in this mode, or else you can not access the device which you want to connect. For wireless network encryption, please refer to 7.2. Set the computer to“Obtain IP address automatically”...
  • Page 42 Portable Wireless AP/Router 5.5.2. Configure the parameters. This device supports three kinds of access ways (ADSL virtual dial-up, dynamic IP, static IP); please select the ways according to the actual situation. If you are not sure, you can consult local Internet service providers to get the relevant parameters.
  • Page 43 Portable Wireless AP/Router Ø Static IP If your ISP provides you the Static IP, please select Static IP access way. You should input the IP address, Subnet Mask, Gateway, DNS sever and the secondary DNS sever provided by your ISP, then click “Next”. Ø...
  • Page 44 Portable Wireless AP/Router (via PPPoE), please select ADSL Virtual Dial-up (via PPPoE) access way. Enter the Account and Password provided by your ISP, and click “Next”. If you are not clear, please consult your ISP. If the Account is pppoe_user and Password is pppoe_passwd, you need to enter the information as the diagram below.
  • Page 45 Portable Wireless AP/Router ² Network Mode Select one mode from the following. The default is 11b/g/n mode. 11b mode Allow the wireless client to connect with the device in 11b mode at the maximum speed of 11Mbps. 11g mode Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps.
  • Page 46 Portable Wireless AP/Router connect with with auto-negotiation speed. ² SSID SSID (Service Set Identifier) is the unique name of the wireless network. Wireless client must input the same SSID to access. ² Channel: Specify the effective channel (from 1 to 13\Auto) of the wireless network.
  • Page 47 Portable Wireless AP/Router Click “Next” to save configurations. Note: Generally, you only need to change the wireless SSID, wireless channel; if you are not very sure of other parameters, you can not configure them to avoid affecting wireless performance. 5.5.4.Wireless Security Setting You can select WEP, WPA-personal, WPA2-personal and other security modes.

  • Page 48: Chapter 6 Advanced Settings

    Portable Wireless AP/Router following chapter. 5.5.5. Click “Apply” to save the settings and reboot the router to let the settings take effect. Note: Only the computers with wireless network adapter can access to the wireless router if the mode take effect and set the computer to obtain IP address automatically.
  • Page 49 Portable Wireless AP/Router ² MAC Address: The device’s physical MAC address as seen on your local network is unchangeable. ² IP Address: The Router’s LAN IP addresses (not your PC’s IP address). 192.168.2.1is the default value. Once you change it, you need to use the new IP to access the router.
  • Page 50 Portable Wireless AP/Router ² MAC Address: The device’s physical MAC address as seen on your local network is unchangeable. ² IP Mode: There are two modes, Static IP and Dynamic IP. If you select Static IP, you need to input the parameters provided by your ISP.

  • Page 51: Wan Settings

    Portable Wireless AP/Router ² Primary DNS Sever: Input the primary DNS sever provided by your ISP. ² Secondary DNS Sever: you can input it or empty it. The parameters are also provided by your ISP ² Host Name: The device’s wins name which you can use it to visit the device.
  • Page 52 Portable Wireless AP/Router ² WAN Connection Mode: It shows the current connection method. ² Account: Input the user name provided by your ISP. ² Password: Enter the password provided by your ISP. ² MTU: Maximum Transmission Unit. It is the size of largest datagram that can be sent over a network.
  • Page 53 Portable Wireless AP/Router ² Service Name: It is defined as a set of characteristics that are applied to a PPPoE connection. Enter it if provided. Do NOT modify it unless necessary. ² AC Name: Enter it if provided. Do NOT modify it unless necessary.
  • Page 54 Portable Wireless AP/Router 6.2.2 Static IP If your connection mode is static IP, you can modify the following addressing information. ² IP Address: Here enter the WAN IP address provided by your ISP. If you are not clear, consult you ISP please.

  • Page 55: Mac Address Clone

    Portable Wireless AP/Router 6.3 MAC Address Clone This page is for the Router’s MAC address to WAN. (Only in WISP mode and Wireless Router mode) Some ISPs require end-user's MAC address binding to access their network. ISP will provide a valid MAC address and you should input MAC address and save the configuration.
  • Page 56 Portable Wireless AP/Router DNS is short for Domain Name System (or Service), an Internet service that translate domain names into IP addresses which are provided by your Internet Service Provider. Please consult your Internet Service Provider for details if you do not have them. ²...

  • Page 57: Chapter 7 Wireless Setting

    Portable Wireless AP/Router Chapter 7 Wireless Setting 7.1 Basic Settings ² Enable Wireless: Check to enable the Router’s wireless features; uncheck to disable it. ² Network Mode Select one mode from the following. The default is 11b/g/n mode. 11b mode Allow the wireless client to connect with the device in 11b mode at the maximum speed of 11Mbps.
  • Page 58 Portable Wireless AP/Router 11g mode Allow the 11g/11n-compliant client device to connect with the AP at the maximum speed of 54Mbps. 11b/g mode: Allow the 11b/g-compliant client device to connect with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed.

  • Page 59: Wireless Security Setting

    Portable Wireless AP/Router (from 1 to 13\Auto) of the wireless network. ² Extension Channel To increase data throughput of wireless network, the extension channel range is used in 11n mode. ² Channel Bandwidth Select the channel bandwidth to improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M;...
  • Page 60 Portable Wireless AP/Router WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a more recent wireless encryption scheme, designed to improve the security features of WEP. It applies more powerful encryption types (such as TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard]) and can change the keys dynamically on every authorized wireless device.
  • Page 61 Portable Wireless AP/Router 7.2.2 WPA2-personal WPA2 (Wi-Fi Protected Access version 2) provides higher security than WEP (Wireless Equivalent Privacy) or WPA (Wi-Fi Protected Access). Besides TKIP encryption, new AES encryption mode is provided. ² WPA Algorithms Provides TKIP [Temporal Key Integrity Protocol] or AES [Advanced Encryption Standard].
  • Page 62 Portable Wireless AP/Router WEP (Wired Equivalent Privacy), a basic encryption method, usually encrypts wireless data using a series of digital keys (64 bits or 128 bits in length). By using the same keys on each of your wireless network devices, you can prevent unauthorized wireless devices from monitoring your transmissions or using your wireless resources.

  • Page 63: Advanced Settings

    Portable Wireless AP/Router or Hex. ² Key Explanation: You can enter ASCII code (5 or 13 ASCII characters. Illegal character as “/” is not allowed.) Or 10/26 hex characters. ² Default Key Select one key from the four configured keys as the current available 7.3 Advanced Settings This section is to configure the advanced wireless setting of the Router, including the BG Protection Mode,...
  • Page 64 Portable Wireless AP/Router wireless client to connect 11n wireless network smoothly in a complicated wireless area. ² Basic Data Rates: For different requirement, you can select one of the suitable Basic Data Rates. Here, default value (1-2-5.5.-11Mbps…). recommended not to modify this value. ²...

  • Page 65: Wps Settings

    Portable Wireless AP/Router ² WMM Capable: It will enhance the data transfer performance of multimedia data when they’re being transferred over wireless network. It is recommended to enable this option. ² APSD Capable: It is used for auto power-saved service. The default is disabled. 7.4 WPS Settings WPS (Wi-Fi Protected Setting) can be easy and quick to establish the connection between the wireless network...
  • Page 66 Portable Wireless AP/Router ² WPS settings To enable or disable WPS function. The default is “disable”. ² WPS mode: PBC (Push-Button Configuration) and PIN code. Ø PBC Select the PBC or press the WPS button on the back panel of the device for about one second (Press the button for about one second and WPS indicator will be blinking for 2 minutes, which means the WPS is enabled.
  • Page 67 Portable Wireless AP/Router Start MSC process means the process has been started and waits for being connected. Configured means the negotiation is successful between server and clients. ² WPS Configured “yes” means WPS feature is enabled and goes into effect. “Not used” means it is not used.

  • Page 68: Wireless Access Control

    Portable Wireless AP/Router 7.5 Wireless Access Control To secure your wireless LAN, the wireless access control is actually based on the MAC address management to allow or block the specific clients to access the wireless network. Select “WLAN Setting->Access Control” to display the following screen: ²...

  • Page 69: Connection Status

    Portable Wireless AP/Router to implement the filter policy. Click “Add” to finish the MAC add operation. ² MAC Address list Show the added MAC addresses. You can add or delete them. 7.6 Connection Status This page shows wireless client’s connection status, including MAC address, Channel bandwidth.

  • Page 70: Chapter 8 Dhcp Server

    Portable Wireless AP/Router Chapter 8 DHCP Server DHCP server is for the WISP mode and wireless Router mode. 8.1 DHCP Settings DHCP (Dynamic Host Control Protocol) is to assign an IP address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP Address Automatically”.

  • Page 71: Dhcp List And Binding

    Portable Wireless AP/Router DHCP server distribution. ² IP Address End: Enter the range of IP address pool for DHCP server distribution. ² Lease Time: The length of the IP address lease. Set an appropriate lease time to improve the recovery efficiency of invalid IP address.

  • Page 72: Chapter 9 Virtual Server

    Portable Wireless AP/Router change the client IP address and to evade the monitoring device) ² IP Address: Enter the IP address which needs to be bound. ² MAC Address: Enter the MAC address of the computer you want to assign the above IP address. Click “Add”...

  • Page 73: Port Range Forwarding

    Portable Wireless AP/Router amplification mode and the wireless Router mode. 9.1 Port Range Forwarding This section deals with the port range forwarding mainly. The Port Range Forwarding allows you to set up a range of public services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN.
  • Page 74 Portable Wireless AP/Router ² IP Address: Enter the IP address of the PC where you want to set the applications. ² Protocol: Select the protocol (TCP/UDP/Both) for the application. ² Enable: Click to check it for corresponding operation. ² Delete: Click to clear the parameters. ²...

  • Page 75: Dmz Settings

    Portable Wireless AP/Router 9.2 DMZ Settings In some special cases, we need to completely expose a computer achieve intercommunication. This computer can be set to the DMZ host. ² DMZ Host IP Address: The IP address of the computer you want to expose. ²...

  • Page 76: Upnp Settings

    Portable Wireless AP/Router DMZ host will no longer works. 9.3 UPnP Settings It supports latest Universal Plug and Play. This function goes into effect on Windows XP or Windows ME or this function would go into effect if you have installed software that supports UPnP.

  • Page 77: Chapter 10 Security Settings

    Portable Wireless AP/Router Chapter 10 Security Settings The security settings are for WISP mode and Wireless Router mode. 10.1 Client Filter Settings To facilitate your further management to online behavior of the computers in LAN, you can enable client filter to control some ports access to Internet.

  • Page 78: Url Filter Settings

    Portable Wireless AP/Router Policy Name: Enter a name for the access policy selected. IP Start/End: Enter the starting/ending IP address. Port: Enter the port range based over the protocol for access policy. Type: Select one protocol (TCP/UDP/Both) from the drop-down menu. Times: Select the time range of client filter.
  • Page 79 Portable Wireless AP/Router Ø URL Filter: Check to enable URL filter. Ø Access Policy: Select one number from the drop-down menu. Ø Enable: Check to enable the access policy. Ø Filter Mode: Click one radio button to enable or disable to access the Internet. Ø...

  • Page 80: Mac Address Filter

    Portable Wireless AP/Router the above diagram. (Notice: different strings need to be apart by a comma.) 10.3 MAC Address Filter In order to manage the computers in LAN better, you could control the computer’s access to Internet by MAC Address Filter.

  • Page 81: Prevent Network Attack

    Portable Wireless AP/Router ² Enable Click this to enable the policy. ² Filter Mode: Click one radio button to enable or disable to access the Internet in specific time. Every rule is applicable only to the corresponding MAC address. ² Policy Name: Enter a name for the access policy selected.

  • Page 82: Remote Web Management

    Portable Wireless AP/Router address can be found from the “System Log”. Ø Prevent Network Attack: Enable it for attack prevention. 10.5 Remote WEB Management This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside of the local network, please select the “Enable”.
  • Page 83 Portable Wireless AP/Router ² Enable: Check to enable remote web management. ² Port: The management port open to outside access. ² WAN IP Address: Specify the range of the WAN IP address for remote management. Note 1. If you want to login to the Web-based interface via port 8080, you need use the format of WAN IP address: port (for example http //220.135.211.56:8080) to implement remote login.

  • Page 84: Wan Ping

    Portable Wireless AP/Router For example: If you want to configure the IP address 218.88.93.33 to access the device’s web interface, please set it as above. 10.6 WAN Ping The ping test is to check the status of your internet connection. When disabling the test, the system will ignore the ping test from WAN.

  • Page 85: Chapter 12 System Tools

    Portable Wireless AP/Router The main duty for a router is to look for a best path for every data frame, and transfer this data frame to the destination. So, it’s essential for the router to choose the best path, i.e. routing arithmetic. In order to finish this function, many transferring paths, i.e.

  • Page 86: Ddns

    Portable Wireless AP/Router ² Time Zone: Select your time zone from the drop-down menu. ² Customized time: Enter the time you customize. Note When the Router is powered off, the time setting will be lost. Before the Router will obtain GMT time automatically, you need connect with the Internet and obtain the GMT time, or set the time on this page first.
  • Page 87 Portable Wireless AP/Router fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind the Router. If you want to activate this function, please select “Enable” and a DDNS service provider to sign up.

  • Page 88: Backup/Restore Settings

    Domain name tenda.3322.org After mapping the port in the virtual server, setting account information in DDNS server and in the address field entering http://tenda.3322.org, you can access the Web page. 12.3 Backup/Restore Settings The device provides backup/restore settings, so you need...
  • Page 89 Portable Wireless AP/Router Ø Backup Setting Click “Backup” button to back up the Router’s settings and select the path for save. Click “Save” to save the configuration files. Ø Restore Setting Click “Browse” button to select the backup files.

  • Page 90: Restore To Factory Default Setting

    Portable Wireless AP/Router Click “Restore” button to restore previous settings. 12.4 Restore to Factory Default Setting This button is to reset all settings to the default values. It means the Router will lose all the settings you have set. So please Note down the related settings if necessary.

  • Page 91: Upgrade

    Note: After restoring to default settings, please restart the device, then the default settings can go into effect. 12.5 Upgrade The Router provides the firmware upgrade by clicking the “Upgrade” after browsing the firmware upgrade packet which you can download from www.tenda.cn.

  • Page 92: Reboot The Router

    Portable Wireless AP/Router Ø Browse: click this button to select the upgrade file. Ø Upgrade: click this button to start the upgrading process. After the upgrade is completed, the Router will reboot automatically. Note: Do not power off the device during the upgrade. 12.6 Reboot the Router Rebooting the Router makes the settings configured go into effect.

  • Page 93: Change Password

    Portable Wireless AP/Router 12.7 Change Password This section is to set a new user name and password to better secure your router and network. Ø User Name: Enter a new user name for the device. Ø Old Password: Enter the old password. Ø...

  • Page 94: System Log

    Portable Wireless AP/Router 12.8 System Log The section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically. Ø...

  • Page 95: Appendix : How To "Obtain An Ip Automatically

    Portable Wireless AP/Router Appendix : How to “Obtain an IP Automatically” If you enable DHCP (default), you can get the IP address, Gateway, DNS automatically to access the internet. Please set you device as below. 1. On your computer desktop right click “My Network Places”...
  • Page 96 Portable Wireless AP/Router 3. Select “Internet Protocol (TCP/IP)” and click “Properties”.
  • Page 97 Portable Wireless AP/Router 4. Select “Obtain an IP address automatically” 5. Select “Status” within “Local Area Connection” – click "support "dialog box, you can see whether you have got the...

  • Page 98: Appendix : How To Set The Network Card After Device Encrypted

    1. On your computer desktop right click “My Network Places” and select “Properties”. 2. Select “View Available Wireless Network”. The entire wireless signal will be shown in the interface. Please select “Tenda”. If you don’t find it, please click “Refresh Network List”.
  • Page 99 Portable Wireless AP/Router 3. Select “Tenda” and click “Connect” or double-click “Tenda”, input the “Network key” and “Confirm network key” to connect the Router. 4. “Connected” will be shown in the interface as the following diagram.

  • Page 100: Appendix Glossary

    Portable Wireless AP/Router Appendix Glossary Channel An instance of medium use for the purpose of passing protocol data units (PDU) that may be used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference.
  • Page 101 Portable Wireless AP/Router Wired Equivalent Privacy (WEP) is the method for secure wireless data transmission. WEP adds data encryption to every single packet transmitted wireless network. The 40bit and 64bit encryption are the same because of out 64 bits, 40 bits are private. Conversely, 104 and 128 bit are the same.

  • Page 102: Appendix : Troubleshooting

    If your problems are not in the list, please log into our website www.tenda.cn or send an E-mail to support@tenda.cn, and we will reply you in the earliest time. 1. Enter the IP address but can not visit the WEB management interface.
  • Page 103 Portable Wireless AP/Router this mode, you can visit the WEB interface only by Wireless network. In the wireless access point (AP) mode, your computer must specify an IP (192.168.2.2 ~ 192.168.2.254) to access the device. Please click “Start" - " Run "to enter “ping 192.168.2.1”to diagnose whether the device is connected.
  • Page 104 Portable Wireless AP/Router addresses, please modify one. 4. My computer can not log in equipment; can not access the internet, and a yellow triangle with exclamation point symbols shows, how to deal with? This problem is due to your network card is not assigned the IP address.
  • Page 105 Portable Wireless AP/Router you need to clone the Router’s WAN MAC address to the bind21ing PC’s MAC address. Select “MAC Address Clone” in “Advanced Setting” to input your computer’s MAC address and click “Apply” to activate it. 7. How to share my computer’s source with other users in Internet If you want Internet users to access the internal server via the Router such as e-mail server, Web, FTP, you can...
  • Page 106 Portable Wireless AP/Router Step 7: click “Apply” to activate the settings. The following table has listed the well-known application and service port: Server Protocol Service Port WEB Server FTP Server Telnet NetMeeting 1503 1720 File Send:6891-6900(TCP) TCP/UDP Messenger Voice:1863 6901(TCP) Voice:1863 5190(UDP) PPTP VPN 1723...
