Tenda W300D User Manual

Wireless-n adsl2+ router
Hide thumbs Also See for W300D:
Table of Contents

Advertisement

Quick Links

See also: User Manual

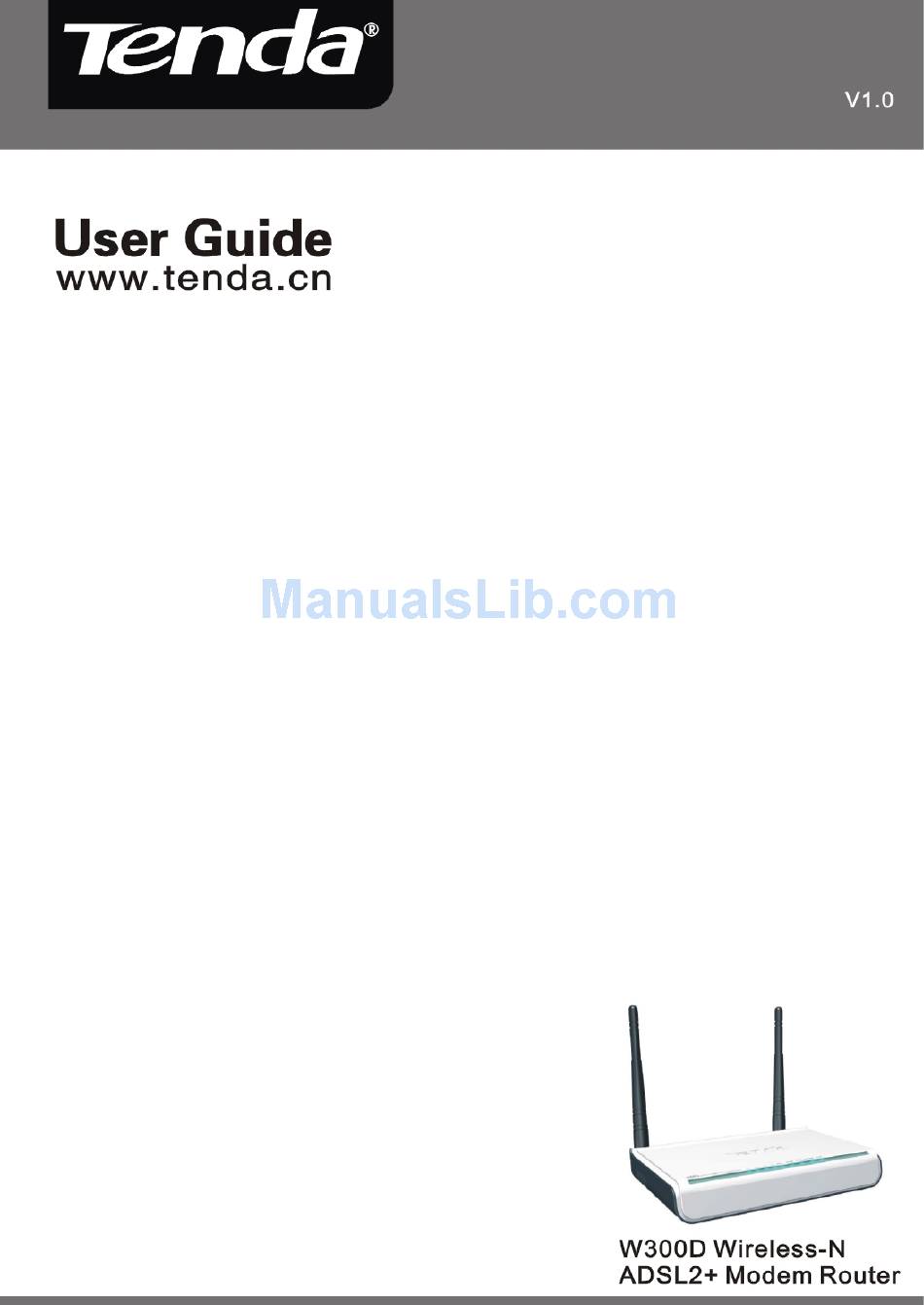

W300D Wireless-N ADSL2+ Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W300D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenda W300D

Summary of Contents for Tenda W300D

  • Page 1 W300D Wireless-N ADSL2+ Router...

  • Page 2: Copyright Statement

    W300D Wireless-N ADSL2+ Router Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd.

  • Page 3: Table Of Contents

    W300D Wireless-N ADSL2+ Router Content Chapter 1：Product Overview .......1 1.1 Product Introduction........1 1.2 Product Features........2 1.3 Package Contents ........4 Chapter 2：Getting to Know the Router ....5 2.1 Rear Panel and Port Description ....5 2.2 Front Panel and LED Description....6 2.3 Hardware Installation .........7 Chapter 3：Getting to Connect the Broadband Router...
  • Page 4 W300D Wireless-N ADSL2+ Router 6.2.3 WPA2-Personal ........39 6.2.4 WPA-Enterprise........40 6.2.5 WPA2-Enterprise........ 41 6.2.6 802.1X Authentication ......42 6.3 WPS Setting..........44 6.4 WDS Setting ........... 46 6.5 Advanced Wireless Setting ......48 6.6 Wireless Access Control ......50 6.7 Wireless Connection Status .......
  • Page 5 W300D Wireless-N ADSL2+ Router Chapter 12: System Tools ........82 12.1 Time Setting.......... 82 12.2 DDNS ........... 84 12.3 Backup/Restore Setting......85 12.4 Firmware Upgrade ........87 12.5 Restore to Factory Default Settings ... 89 12.6 Reboot ..........90 12.7 Password Change ........91 12.8 System Log ...........

  • Page 6: Chapter 1：Product Overview

    W300D ADSL2+ 300M Wireless Broadband Router provides up to 24Mbps downstream rate and 1Mbps upstream rate, which integrates ADSL2+ Modem, wireless router, four-port LAN switch and firewall in one. W300D utilizes advanced MIMO technology and increases over 8 times of transmission range of ordinary 802.11g products.

  • Page 7: Product Features

    W300D Wireless-N ADSL2+ Router WMM function can make your voice and video smoother. Powerful and exquisite, it is the best choice for SOHOs and small-sized enterprises to share the wireless network. 1.2 Product Features Integrates ADSL2+ Modem, wireless router, ...
  • Page 8 W300D Wireless-N ADSL2+ Router Permanent Virtual Circuits standard Setup Wizard support for fast and easy  configurations WPS (PBC and PIN) encryption method to free you  from remembering long passwords Supports remote/local Web management  Supports wireless Roaming technology to ensure ...

  • Page 9: Package Contents

     Two RJ11 Telephone Lines  One RJ45 Ethernet Cable  One Power Adapter  One Voice Splitter  If any of listed items are missing or damaged, please contact the Tenda reseller from whom you purchased for replacement immediately.

  • Page 10: Chapter 2：Getting To Know The Router

    W300D Wireless-N ADSL2+ Router Chapter 2 ： Getting to Know the Router 2.1 Rear Panel and Port Description Rear Panel View： Rear Panel Description： Rear Panel Interface Description Connect with your computer’s LAN(1-4) NIC or uplink to hub or switch.

  • Page 11: Front Panel And Led Description

    If press for 1 second, the WPS (PBC) is enabled. Connect with DSL telephone line. POWER For AC12/1.0A connection 2.2 Front Panel and LED Description Some LED indicators on the front panel of W300D are located here, shown as below:...

  • Page 12: Hardware Installation

    W300D Wireless-N ADSL2+ Router LED Indicator State Description Indicates it is powered POWER Always ON on well. Indicates system Blinking works on well. Indicates it is connected Always ON with termination well. Indicates it is going on Blinking connection negotiation...
  • Page 13 W300D Wireless-N ADSL2+ Router 1. Connect to the Router’s DSL port with telephone line. 2. Use the delivery-attached power adapter to power the Router.
  • Page 14 W300D Wireless-N ADSL2+ Router 3. Connect the LAN port of the Router to the network adapter of your computer with one cable. IMPORTANT: Please use the included power adapter. Use of a different power adapter could cause damage and void the warranty for this...

  • Page 15: Chapter 3：Getting To Connect The Broadband Router

    W300D Wireless-N ADSL2+ Router Chapter 3：Getting to Connect the Broadband Router For easy and fast configuration, the following steps for network configuration are required. 3.1 How to Set the Network Configurations for My Computer 1. Right click “My Network Places” and select...
  • Page 16 W300D Wireless-N ADSL2+ Router 2. Right click “Local Area Network Connection” and select “Properties”. 3. Select “Internet Protocol (TCP/IP)” and click “Properties”.
  • Page 17 W300D Wireless-N ADSL2+ Router 4. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the configurations. Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as shown right.
  • Page 18 W300D Wireless-N ADSL2+ Router...

  • Page 19: How To Check The Network Connection

    W300D Wireless-N ADSL2+ Router 3.2 How to Check the Network Connection 1. Select Start”—”Programs”—“Accessories” —“Command Prompt”. 2. Input the “ping 192.168.0.1” and press “Enter”. If the screen displays as the right figure, it means your PC is connected to your router successfully. If not, please make sure the hardware installation and network adapter are OK.

  • Page 20: Utility

    W300D Wireless-N ADSL2+ Router Access Web-based Configuration Utility 1. To access the Router’s Web-based Utility, launch a web browser such as Internet Explorer or Firefox and enter the Router’s default IP address, http://192.168.0.1. Press “Enter”. 2、input the “admin” in both User Name and Password.
  • Page 21 W300D Wireless-N ADSL2+ Router 3、If you enter the correct user name and password, the following page appears.

  • Page 22: Chapter 4：Dsl Setting

    W300D Wireless-N ADSL2+ Router Chapter 4：DSL Setting This section deals with how to configure the Router’s basic setting via Web interface. 4.1 DSL Setting This guide can assist you to configure the Router’s connection mode and basic parameters fast. The Router supports five common connection modes (Bridging, MER, IpoA, PPPoE, PPPoA).
  • Page 23 W300D Wireless-N ADSL2+ Router After the setting is completed, please click “Apply”. The device will reboot and the settings will go into effect. The device’s status will be refreshed in the following page:...
  • Page 24 W300D Wireless-N ADSL2+ Router Network Status： Connection State： To check if it is connected well with ISP Connection Mode： Show the connection mode for Internet access. WAN IP、Subnet Mask、Gateway、Primary DNS Server、Secondary DNS Server： After the Router connects well with ISP, the TCP/IP parameters are obtained.
  • Page 25 W300D Wireless-N ADSL2+ Router System Date： The system date of the Router Client： The client number connected with the device Connection Mode 1： Bridging If you want to configure the device’s connection mode Bridging, please select “Bridging” Encapsulation field under Internet Connection Mode.
  • Page 26 W300D Wireless-N ADSL2+ Router Connection Mode 2：MER If your ISP provides your connection way as Dynamic IP (it means you obtain different IP address each time to access the Internet), select “MER” in “Encapsulation” field and “Auto obtain IP address” in...

  • Page 27: Other Settings

    W300D Wireless-N ADSL2+ Router Region selection: Country, City, Provider. If the city or ISP is not listed in the drop-down menu, you can enter the VPI and VCI value. “Encapsulation Mode”, “DSL Modulation” are suggested to select the default value. If there is something wrong, you can inquire your local ISP.
  • Page 28 W300D Wireless-N ADSL2+ Router Connection Mode 3：IPoA If your ISP provides your connection way as IPoA, select “IPoA” in “Encapsulation” field. You need input the “IP address”, “Subnet Mask”, “Default Gateway”, “DNS Server”, and “Secondary DNS Server” into the corresponding fields.
  • Page 29 W300D Wireless-N ADSL2+ Router Region selection: Country, City, Provider. If the city or ISP is not listed in the drop-down menu, you can enter the VPI and VCI value. “Encapsulation Mode”, “DSL Modulation” are suggested to select the default value. If there is something wrong, you can inquire your local ISP.
  • Page 30 W300D Wireless-N ADSL2+ Router Connection Mode 4： PPPoE If your ISP provides your connection way as PPPoE, select “PPPoE” in “Encapsulation” field. You need input your user name and password provided by ISP or network administrator in “PPPoE Setting” corresponding fields.
  • Page 31 W300D Wireless-N ADSL2+ Router Region selection: Country, City, Provider. If the city or ISP is not listed in the drop-down menu, you can enter the VPI and VCI value. “Encapsulation Mode”, “DSL Modulation” are suggested to select the default value. If there is something wrong, you can inquire your local ISP.
  • Page 32 W300D Wireless-N ADSL2+ Router Note: Only you have set the current time in Time Setting, then “Connect on Fixed Time” can be used. Connection Mode 5： PPPoA If your ISP provides your connection way as PPPoA, select “PPPoA” in “Encapsulation” field. You need input...
  • Page 33 W300D Wireless-N ADSL2+ Router Dial-up Timeout： During a fixed time, if the auto dial-up fails, the dial-up will stop. Ideal Timeout： If there is no communication in the fixed time, the link will be disconnected. Region selection: Country, City, Provider. If the city or ISP is not listed in the drop-down menu, you can enter the VPI and VCI value.

  • Page 34: Chapter 5：Advanced Setting

    W300D Wireless-N ADSL2+ Router Chapter 5：Advanced Setting This section will guide you to configure the Router’s advanced settings, including LAN setting, MAC address clone and DNS setting. 5.1 LAN Setting This page focuses on how to configure LAN Setting. MAC Address：...

  • Page 35: Mac Address Clone

    W300D Wireless-N ADSL2+ Router Note： If you have changed the IP address, you need use the new IP address to login the Router’s Web interface next time, and the default gateway of all computers in the LAN must be via this IP address to access the Internet.
  • Page 36 W300D Wireless-N ADSL2+ Router MAC Address： The MAC address to be registered with your Internet service provider. Clone MAC Address： Register your PC's MAC address. Restore Default MAC Address： Restore default hardware address.

  • Page 37: Dns Settings

    W300D Wireless-N ADSL2+ Router 5.3 DNS Settings DNS is short for Domain Name System (or Service), an Internet service that translate domain names into IP addresses which are provided by your Internet Service Provider. Please consult your Internet Service Provider for details if you do not have them.

  • Page 38: Chapter 6：Wireless Settings

    W300D Wireless-N ADSL2+ Router Chapter 6：Wireless Settings This section mainly deals with the wireless settings, including Basic Settings, Security Setting, Access Control and Advanced Settings. 6.1 Basic Setting Network Mode: Select mode from following: 802.11b/g mixed, 802.11b, 802.11g and 802.11b/g/n mixed.
  • Page 39 W300D Wireless-N ADSL2+ Router name of the wireless network. This device has two SSIDs and the main SSID is necessary. Minor SSID: Minor Service Set Identifier. It is optional. Broadcast (SSID)： Select “enable” to enable the device's SSID to be visible by wireless clients.
  • Page 40 W300D Wireless-N ADSL2+ Router MBSSID AP Isolation： When it is enabled, the wireless clients connected with AP can not access each other to isolate completely access control in WLAN. BSSID： Business Service Set Identifier of wireless network. In IEEE802.11, BSSID is the MAC address of wireless access point.

  • Page 41: Wireless Security Settings

    W300D Wireless-N ADSL2+ Router 6.2 Wireless Security Settings This page is used to configure the device’s network security setting. Here presents the common six encryption methods, including Mixed WEP, WPA-personal, WPA-enterprise, WPA2-personal, WPA2- enterprise, etc. It is recommended to use WPA2-personal encryption method.
  • Page 42 W300D Wireless-N ADSL2+ Router SSID Choice： Select the SSID (main SSID or minor SSID) configure security setting from drop-down menu. Security Mode： From drop-down menu select corresponding security encryption modes. WEP Key： Set the WEP key with the format of ASCII and Hex.

  • Page 43: Wpa- Personal

    W300D Wireless-N ADSL2+ Router 6.2.2 WPA- Personal WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a more recent wireless encryption scheme, designed to improve security features WEP. Select “WPA-personal” from the drop-down menu to enter the following window: WPA Algorithms: Select one encryption type, AES or TKIP.

  • Page 44: Wpa2-Personal

    W300D Wireless-N ADSL2+ Router 6.2.3 WPA2-Personal WPA2 (Wi-Fi Protected Access version 2), It's more secure than Wired Equivalent Privacy (WEP) and easy to set up. WPA Algorithms: Select key Algorithms such as TKIP, AES and TKIP&AES. Pass Phrase: Enter the key which must have 8-63 ASCII characters.

  • Page 45: Wpa-Enterprise

    W300D Wireless-N ADSL2+ Router 6.2.4 WPA-Enterprise This security mode is used when a RADIUS server is connected to the device. Select “WPA-enterprise” from the drop-down menu to enter the following window: Radius IP Address： Enter the IP address of the Radius server.

  • Page 46: Wpa2-Enterprise

    W300D Wireless-N ADSL2+ Router 6.2.5 WPA2-Enterprise This security mode is also used when a RADIUS server is connected to the Router. Radius IP Address： Enter the IP address of the Radius server. Radius Port： Enter the authentication port of the Radius server.

  • Page 47: Authentication

    W300D Wireless-N ADSL2+ Router 6.2.6 802.1X Authentication This security mode is used when a RADIUS server is connected to the device. 802.1x, a kind of Port-based authentication protocol, is an authentication type and strategy for users. The port can be either a physic port or logic port (such as VLAN).
  • Page 48 W300D Wireless-N ADSL2+ Router WEP： Click “Enable/Disable” to enable or disable the WEP algorithm. Radius IP Address： Enter the IP address of the Radius server. Radius Port： Enter the authentication port of the Radius server. The default is 1812. Shared Key：...

  • Page 49: Wps Setting

    W300D Wireless-N ADSL2+ Router 6.3 WPS Setting WPS (Wi-Fi Protected Setting) can be easy and quick to establish the connection between the wireless network clients and the Router through encrypted contents. The users only enter the PIN code to configure without selecting encryption method and entering secret keys by manual.
  • Page 50 W300D Wireless-N ADSL2+ Router PBC： Select the PBC or press the WPS button on the front panel of the device for one second (Press the button for one second and WPS indicator will be blinking for 2 minutes, which means the WPS is enabled. During the...

  • Page 51: Wds Setting

    W300D Wireless-N ADSL2+ Router 6.4 WDS Setting WDS (Wireless Distribution System) can be used to expand your current wireless network coverage. The Router supports three modes: Lazy, Bridge and Repeater. Lazy： In this mode, the connected wireless device should be in Bridge or Repeater mode, and select the Router’s BSSID to implement...
  • Page 52 W300D Wireless-N ADSL2+ Router Repeater： In this mode, you need add the MAC address of the connecting device into the Router's AP MAC address table to amplify and repeat wireless signals. Encrypt Type: You can select WEP mode, TKIP mode, AES mode for security here.

  • Page 53: Advanced Wireless Setting

    W300D Wireless-N ADSL2+ Router 6.5 Advanced Wireless Setting This section is to configure the advanced wireless setting of the Router, including the Radio Preamble, 802.11g/n Rate, Fragmentation Threshold, Threshold, Beacon Period and DTIM Interval. BG Protection Mode： For 11b/g wireless client, it is easier to connect with 11n wireless device.
  • Page 54 W300D Wireless-N ADSL2+ Router from the drop-down menu. Here, default value is (1-2-5.5-11Mbps…). Beacon Interval： The frequency interval of the beacon, which is a packet broadcast by a router to synchronize a wireless network. The default value is 100 ms. It is recommended not to modify the default value.

  • Page 55: Wireless Access Control

    W300D Wireless-N ADSL2+ Router 6.6 Wireless Access Control To secure your wireless LAN, the wireless access control is actually based on the MAC address management. Select “Wireless Setting-Access Control” to popup the following window: MAC Address Filter： Enable/disable MAC address filter. Select “Off”...

  • Page 56: Wireless Connection Status

    W300D Wireless-N ADSL2+ Router 6.7 Wireless Connection Status This page is to show the current wireless access status. Click “Refresh” to update the wireless connection information. MAC Address： Shows the connecting PC’s MAC address. Bandwidth: Shows the channel bandwidth of the host to...

  • Page 57: Chapter 7：Dhcp Server

    W300D Wireless-N ADSL2+ Router Chapter 7：DHCP Server 7.1 DHCP Server Setting DHCP (Dynamic Host Control Protocol) is to assign an IP address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP...

  • Page 58: Dhcp Client List

    W300D Wireless-N ADSL2+ Router 7.2 DHCP Client List The Static IP assignment is to add one specific static IP address to the assigned MAC address. You can view the related information in the DHCP server list. IP Address: Enter one IP address for the computer on the LAN network.

  • Page 59: Chapter 8：Virtual Server

    W300D Wireless-N ADSL2+ Router Chapter 8：Virtual Server 8.1 Single Port Forwarding The Router can be configured as a virtual server on behalf of local services behind the LAN port. The given remote requests will be re-directed to the local servers via the virtual server.
  • Page 60 W300D Wireless-N ADSL2+ Router External Port： This is the external port number for server or Internet application, for example, port 21 for ftp service. Internal Port: This is the port number of LAN computer set by the Router. The Internet traffic from the external port will forward to the internal port.
  • Page 61 W300D Wireless-N ADSL2+ Router add it by manual. Add: To add the well-know port to ID you selected. If the host with IP address 192.168.0.10 in the LAN provides Web service via port 80, and you want to forward this service to port 40, configure it as the following setting.

  • Page 62: Port Range Forwarding

    W300D Wireless-N ADSL2+ Router 8.2 Port Range Forwarding This section deals with the port range forwarding. The Port Range Forwarding allows you to set up a range of public services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN.
  • Page 63 W300D Wireless-N ADSL2+ Router Protocol: Select the protocol (TCP/UDP/Both) for the application. Well-Known Service Port: Select the well-known services as DNS, FTP from the drop-down menu to add to the configured one above. Delete/Enable: Click to check it for corresponding operation.

  • Page 64: Port Trigger Setting

    W300D Wireless-N ADSL2+ Router 8.3 Port Trigger Setting When internal clients have access to external server in the Internet for some application, the clients request to connect with severs, and the server will also ask to connect with client. But in the default setting, router will refuse to accept any request from WAN, which will bring communication halt.
  • Page 65 W300D Wireless-N ADSL2+ Router server with the range of 1～65535. Note that the low number first and two blanks can keep the same number if needed. External Port: The port range through which the external server send request traffics to internal clients with the range of 1～65535.
  • Page 66 W300D Wireless-N ADSL2+ Router 8.4 ALG Service Setting ALG (Application Layer Gateway) in the context of computer networking, an ALG or application layer gateway consists of a security component that augments a firewall or NAT employed in a computer network. It allows customized NAT traversal filters to...
  • Page 67 W300D Wireless-N ADSL2+ Router control traffic and open up port mappings (firewall pinhole) dynamically required. Legitimate application data can thus be passed through the security checks of the firewall or NAT that would have otherwise restricted the traffic for not meeting its limited filter criteria.

  • Page 68: Dmz Host

    W300D Wireless-N ADSL2+ Router 8.5 DMZ Host The DMZ function is to allow one computer in LAN to be exposed to the Internet for a special-purpose service as Internet gaming or videoconferencing. DMZ Host IP Address: The IP address of the computer you want to expose.

  • Page 69: Upnp Setting

    W300D Wireless-N ADSL2+ Router 8.6 UPnP Setting It supports latest Universal Plug and Play. This function goes into effect on Windows XP or Windows ME or this function would go into effect if you have installed software that supports UPnP. With the UPnP function,...

  • Page 70: Chapter 9: Traffic Control

    W300D Wireless-N ADSL2+ Router Chapter 9: Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration.
  • Page 71 W300D Wireless-N ADSL2+ Router HTTP service. IP Starting Address: The first IP address for traffic control. IP Ending Address: The last IP address for traffic control. Uploading/Downloading: To specify the traffic heading way for the selected IP addresses: uploading or downloading.

  • Page 72: Chapter 10：Security Setting

    W300D Wireless-N ADSL2+ Router Chapter 10： Security Setting 10.1 Client Filter Settings To benefit your further management to the computers in the LAN, you can control some ports access to Internet by data packet filter function. Client Filter: Check to enable client filter.
  • Page 73 W300D Wireless-N ADSL2+ Router Access Policy: Select one number from the drop-down menu. Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all settings for the policy. Filter Mode: Click one radio button to enable or disable to access the Internet.

  • Page 74: Url Filter

    W300D Wireless-N ADSL2+ Router 10.2 URL Filter In order to control the computer to have access to websites, you can use URL filtering to allow the computer to have access to certain websites at fixed time and forbids it having access to certain websites at fixed time.
  • Page 75 W300D Wireless-N ADSL2+ Router Filter Mode: Click one radio button to enable or disable to access the Internet. Policy Name: Enter a name for the access policy selected. Start/End IP: Enter the starting/ending IP address. URL Strings： Specify the text strings or keywords in the DNS.

  • Page 76: Mac Address Filter

    W300D Wireless-N ADSL2+ Router 10.3 MAC Address Filter In order to manage the computers in LAN better, you could control the computer’s access to Internet by MAC Address Filter. MAC Address Filter: Check to enable MAC address filter. Access Policy: Select one number from the drop-down menu.
  • Page 77 W300D Wireless-N ADSL2+ Router Filter Mode: Click one radio button to enable or disable to access the Internet. Policy Name: Enter a name for the access policy selected. MAC Address: Enter the MAC address you want to run the access policy.

  • Page 78: Prevent Network Attack

    W300D Wireless-N ADSL2+ Router 10.4 Prevent Network Attack This section is to protect the internal network from exotic attack such as SYN Flooding attack, Smurf attack, LAND attack, etc. Once detecting the unknown attack, Router will restrict bandwidth automatically. The attacker’s IP address can be found from the “System Log”.

  • Page 79: Remote Web Management

    W300D Wireless-N ADSL2+ Router 10.5 Remote Web Management This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside the local network, please select the “Enable”. Enable: Check to enable remote web management.
  • Page 80 W300D Wireless-N ADSL2+ Router port (for example http://219.134.32.101: 8080) to implement remote login. If your WAN IP address starts and ends with 0.0.0.0, it means all hosts in WAN can implement remote Web management. If you change the WAN IP address as 218.88.93.33-218.88.93.35, then only the IP addresses as 218.88.93.33,...

  • Page 81: Local Web Management

    W300D Wireless-N ADSL2+ Router 10.6 Local Web Management Local web management, the alternative to remote web management, is to allow the network administrator to manage the Router in LAN. Any PC in the LAN can access the Web management utility by default. So you can enter the specific MAC address of the LAN computer to function.
  • Page 82 W300D Wireless-N ADSL2+ Router Note： 1. In the default state, this feature is not enabled. All computers in the LAN can login the Web. 2. For example, if you only allow the MAC address with 00:11:22:33:E4:F5 to access the Web, please set it as follows.

  • Page 83: Wan Ping

    W300D Wireless-N ADSL2+ Router 10.7 WAN Ping The ping test is to check the status of your internet connection. When disabling the test, the system will ignore the ping test from WAN. Ignore Ping from WAN: Check to ignore the ping request and give no...

  • Page 84: Chapter 11: Routing Setting

    W300D Wireless-N ADSL2+ Router Chapter 11: Routing Setting 11.1 Routing Table The main duty for a router is to look for a best path for every data frame, and transfer this data frame to a destination. So, it’s essential for the router to choose the best path, i.e.

  • Page 85: Static Routing

    W300D Wireless-N ADSL2+ Router 11.2 Static Routing This page is used to configure the Router’s static routing. Destination LAN IP: The address of the remote host with which you want to construct a static route. Subnet Mask: The network portion of the Destination LAN...
  • Page 86 W300D Wireless-N ADSL2+ Router Note： 1. The gateway must keep the same segment with the Router’s LAN IP address. 2. If the destination IP address is one host’s IP address, Subnet mask should 255.255.255.255. 3. If the destination IP address is an IP address range, the subnet mask should match the IP address.

  • Page 87: Chapter 12: System Tools

    W300D Wireless-N ADSL2+ Router Chapter 12: System Tools 12.1 Time Setting This section is to select the time zone for your location. If you turn off the Router, the settings for time disappear. However, the Router will automatically obtain the GMT time again once it has access to the Internet.
  • Page 88 W300D Wireless-N ADSL2+ Router Note： When the Router is powered off, the time setting will be lost. Before the Router will obtain time automatically, you need connect with the Internet and obtain the GMT time, or set the time on this page first. Then the time in other features (e.g.

  • Page 89: Ddns

    W300D Wireless-N ADSL2+ Router 12.2 DDNS The DDNS (Dynamic Domain Name System) is supported in this router. It is to assign a fixed host and domain name to a dynamic Internet IP address, which is used to monitor hosting website, FTP server and so on behind the Router.

  • Page 90: Backup/Restore Setting

    W300D Wireless-N ADSL2+ Router Password: Enter the password you set. Domain Name: Enter the domain name which is optional. 12.3 Backup/Restore Setting The device provides backup/restore settings, so you need set a directory to keep these parameters. Backup Setting Click “Backup” button to back up the Router’s...
  • Page 91 W300D Wireless-N ADSL2+ Router Restore Setting： Click “Browse” button to select the backup files. Click “Restore” button to restore previous settings.

  • Page 92: Firmware Upgrade

    12.4 Firmware Upgrade The Router provides the firmware upgrade by clicking the “Upgrade” after browsing the firmware upgrade packet which you can download from www.tenda.cn. After the upgrade is completed, the Router will reboot automatically. Through upgrading the Router’s software, you can gain more stable performance and value-added features.
  • Page 93 W300D Wireless-N ADSL2+ Router When your computer connects with the Router’s LAN port, and obtain the IP address assigned by the Router, please run the TFTP Server, and keep the “Firmware File Name” same with the upgrade file name. Click “Upgrade”...

  • Page 94: Restore To Factory Default Settings

    W300D Wireless-N ADSL2+ Router 12.5 Restore to Factory Default Settings This button is to reset all settings to the default values. It means the Router will lose all the settings you have set. So please Note down the related settings if necessary.

  • Page 95: Reboot

    W300D Wireless-N ADSL2+ Router 12.6 Reboot Rebooting the Router makes the settings configured go into effect or to set the Router again if setting failure happens. Reboot the router: Click this button to reboot the device.

  • Page 96: Password Change

    W300D Wireless-N ADSL2+ Router 12.7 Password Change This section is to set a new user name and password to better secure your router and network. User Name: Enter a new user name for the device. Old Password: Enter the old password.

  • Page 97: System Log

    W300D Wireless-N ADSL2+ Router 12.8 System Log The section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically.

  • Page 98: Appendix I: Glossary

    W300D Wireless-N ADSL2+ Router Appendix I: Glossary Access Point (AP): Any entity that has station functionality and provides access to the distribution services, via the wireless medium (WM) for associated stations. Channel: An instance of medium use for the purpose of...
  • Page 99 W300D Wireless-N ADSL2+ Router keyboard).Make sure this setting is the same for all devices in your wireless network. WEP: Wired Equivalent Privacy (WEP) is the method secure wireless data transmission. WEP adds data encryption to every single packet transmitted in the wireless network.
  • Page 100 W300D Wireless-N ADSL2+ Router is NOT recommend using. WPA/WPA2: A security protocol for wireless networks that builds on the basic foundations of WEP. It secures wireless data transmission by using a key similar to WEP, but the added strength of WPA is that the key changes dynamically.
  • Page 101 W300D Wireless-N ADSL2+ Router megabytes) per second, and to send (upload) data at speeds of 128 kilobits per second. Thus the "Asymmetric" part of the acronym. ATM： ATM stands for Asynchronous Transfer Mode. A transmission protocol that breaks down user traffic into small fixed-sized cells, before...
  • Page 102 W300D Wireless-N ADSL2+ Router Hence the name, "virtual path identifier." The VPI is used in conjunction with the VCI, or virtual channel identifier. VCI： Stands for "Virtual Channel Identifier." The VCI indicates where an ATM cell is to travel over a network. The VCI within each ATM cell defines the fixed channel on which the packet of information should be sent.
  • Page 103 W300D Wireless-N ADSL2+ Router packets are transferred via ATM network. In this connection mode, user must have static address, subnet mask other parameters. Lack of user name and password authentication, it can not implement network administration and QoS features, so this access way will not prevail any more.
  • Page 104 W300D Wireless-N ADSL2+ Router PPPoE is a specification for connecting the users on an Ethernet to the Internet through a common broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet share...
