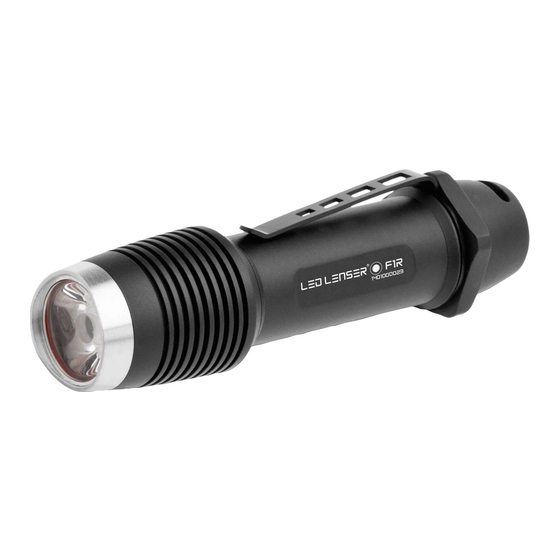

Summary of Contents for Led Lenser F1R

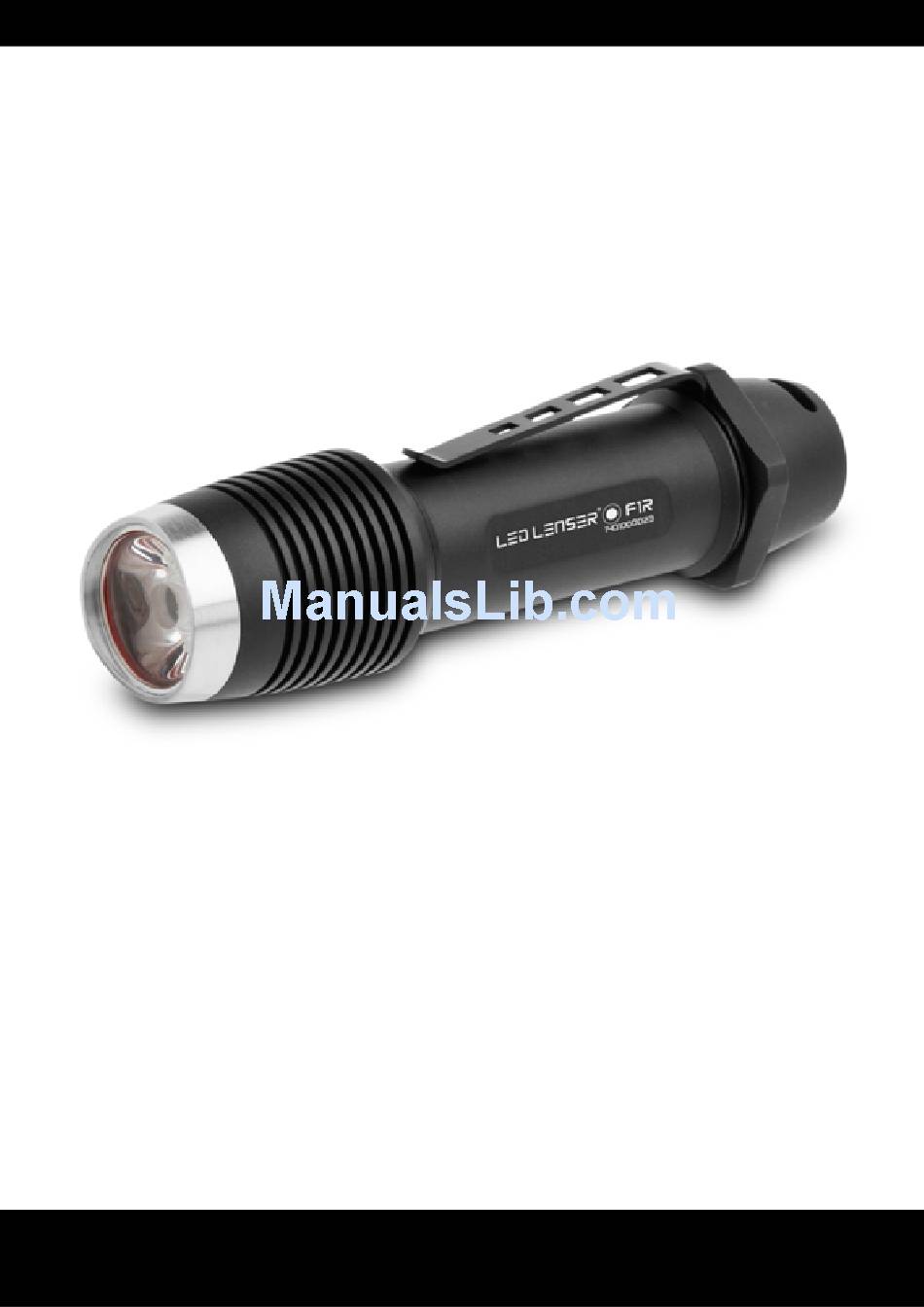

- Page 1 Lenser®* Operating Instructions...
-
Page 2: Table Of Contents
Lenser®* Table of Contents General Product Information Product Description Article Scope of Delivery Range of Use Product Properties Important Notes on Safe Use Information Regarding Flashlight Identification Information Regarding Operating Instructions Identification Warranty Completeness Damages Purpose of the System 2.6.1 Standards and Regulations 2.6.2 Intended Use 2.6.3 Target Group Disposal... - Page 3 Lenser®* Thank you We are delighted that you have decided in favour of one of our products. products. In these Operating Instructions you will find notes regarding safety and operation to help you to familiarize yourself with your new product. Carefully read these Operating Instructions prior to using this product.
-
Page 4: General Product Information
General safety precautions and warnings, • F1R quick initial start guide, • Charger with USB connection, • 1 x protected LED LENSER® ICR18650 lithium-ion battery pack, 3.7 V, 2200 mAh, • Glass breaking stainless steel ring, • Wrist strap. Range of Use Suitable for outdoor use. -
Page 5: Product Properties
Lenser®* 1. General Product Information Product Properties • Pocket format (115 mm), • Extremely powerful (up to 1000 lm), • Smart Light Technology (SLT) with 3 different lighting functions (High Power / Power / Low Power), 2 lighting programs, • Electronic regulation with temperature sensor (overheating protection), •... -
Page 6: Important Notes On Safe Use
(printed, data format or in excerpts). Warranty Warranty LED LENSER ensures the safety and proper functioning of the flashlight only under the condition that: • The flashlight is only used according to the intended purpose and oper-... -
Page 7: Intended Use
- Part 1: General principles and detailed requirements. 2.6.2 Intended Use The F1R is an extremely high-performance flashlight with a light cone and rechargeable battery pack. It is designed for use in the dark. • The flashlight is suitable for continuous operation. -
Page 8: Safety Notes
Lenser®* 3. Safety notes Safety Notes Structure Important notes are marked with pictograms and signal words in these Operating Instructions. 3.1.1 Risk of Injuries Markings Signal words, such as DANGER, WARNING or CAUTION designate the grading of a potential risk of injuries. The different triangle symbols emphasize the level of risk optically. -
Page 9: Overview Of The Key Safety Notes
Lenser®* 3. Safety notes Overview of the Key Safety Notes • The following safety notes should be read carefully before using the flashlight! • If the flashlight is passed on to another person, the operating instructions and these precautions and warnings must also be passed on. •... - Page 10 Lenser®* 3. Safety notes CAUTION PHOTOBIOLOGICAL SAFETY (EYE SAFETY) The flashlight is classified in risk group 2 (medium risk) in accordance with standard IEC 62471 and thus extends beyond the “free group”. The risk of damage to the retina caused by optical radiation (blue light from 400 nm to 780 nm) is inherent, yet the thresholds are considerably undercut.
- Page 11 Lenser®* 3. Safety notes ATTENTION BATTERIES / CHANGING THE BATTERY PACK • Store batteries / battery packs in a clean, dry place between -10 °C and +25 °C. • Only insert batteries in accordance with the markings (+/-). • If necessary, clean the battery and/or flashlight contacts before inserting.
-
Page 12: Overview Of Terms And Abbreviations
Lenser®* 4. Overview of Terms and Abbreviations The following technical terms / abbreviations are used in these Operating Instructions: Smart Light Technology Short for Light-Emitting Diode Battery pack Short for rechargeable battery, i.e. rechargeable energy source EN Operating instructions F1R_V.01 | 7/31/2014... -
Page 13: Operation
Lenser®* 5. Operation Switching the Flashlight On or Off The flashlight is operated by pressing the push button on the end cap. The push button can be engaged for constant illumination; just a gentle activation can be used to create flashes, for example, to send signals or warnings. -
Page 14: Activating Lighting Programs
Lenser®* 5. Operation „Click“ „Click“ Activating Lighting Programs The flashlight has 2 lighting programs that can be used to determine the sequence of the lighting functions. In the delivered state, program A is activated. Use this method to select from the following programs: Program A Press the push button Light function... -
Page 15: Changing The Battery Pack/Batteries
4. Screw the end cap ③ back into place. ATTENTION USING BATTERY PACK/BATTERIES This flashlight may only use 1 x protected LED LENSER ® ICR18650 lithium-ion battery pack or 2 x CR 123A lithium batteries. Recharging the Battery Pack ATTENTION RECHARGING THE BATTERY PACK Only the rechargeable battery pack LED LENSER ®... -
Page 16: Replacing The Front Ring
Lenser®* 5. Operation Replacing the Front Ring The front ring ① screw-fitted in the delivered state may be re- placed by the enclosed black coated, glass-breaking stainless steel ring ⑩. 1. Unscrew the front ring ①. The lense ③ is located in the front ring ① and is re- moved with the front ring ①. -
Page 17: Attaching The Wrist Strap
Automated Functions 5.9.1 Temperature Monitoring The F1R is fitted with a temperature monitoring function (electronic regulation with temperature sensor). This prevents the flashlight from overheating when in use. This may result in a reduction in brightness as soon as the function is activated. -
Page 18: Tests
Lenser®* 5. Operation ATTENTION WARRANTY EXEMPTION No warranty will be assumed for damage resulting from the use of inappropriate cleaning agents/disinfectants. 5.11 Tests Every product is prone to wear over time. Annually, and prior to each use, check the safety and function of the flashlight as well as the batteries/battery packs. ATTENTION Replace and dispose of damaged or old batteries / battery packs. -
Page 19: Technical Data
Lenser®* 6. Technical data Parameter value Value 1 x Xtreme Power LED Length 115 mm Weight 120 g 1 x lithium-ion battery pack ICR18650, 3.7V, 2200 mAh or 2 x Batteries CR 123A lithium batteries Energy tank*** 3.9 Wh Lighting modes High Power Power Low Power... - Page 20 ZWEIBRÜDER OPTOELECTRONICS GMBH & CO. KG ® Kronenstr. 5-7 • 42699 Solingen • Germany Tel. +49 212 / 5948 - 0 • Fax +49 212 / 5948 - 200 info@zweibrueder.com • www.zweibrueder.com...
