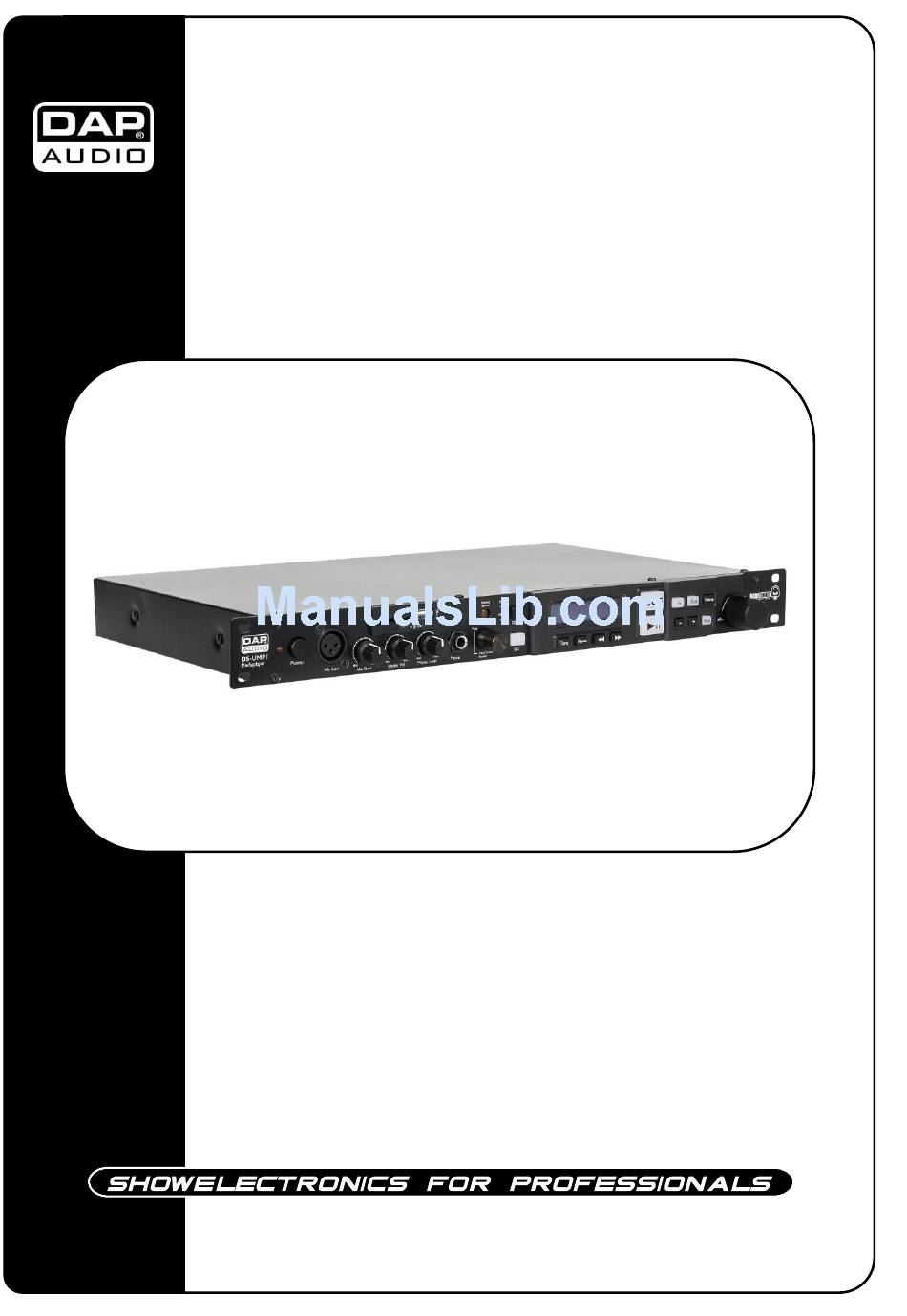

- Page 1 DS-UMP1 ORDERCODE D1129...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DS-UMP1 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio DS-UMP1™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................ Return Procedure..............................Claims..................................Description................................... Overview................................. Frontview................................. Rearview................................. Remote Control..............................Installation..................................Set Up and Operation..............................Functions..................................Operations................................... Selecting Tracks using the FLD/ TRK encoder..................... Selecting Tracks using the Skip Buttons....................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DS-UMP1 • Remote control • 2x AAA battery •... -
Page 5: Operating Determinations
Never remove warning or informative labels from the unit. Never use anything to cover the ground contact. Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
The Darkshade DS-UMP1 is a fully digital media player. It can read both SD-card and USB-stick and can play any MP3 song you want. The DS-UMP1 has both folder search and track search. The big bright LCD display makes selecting songs very fast and easy. -
Page 8: Frontview
Frontview Fig. 2 1) Power ON LED 16) Pitch Control 2) Power ON/ OFF Switch 17) Master Volume Control 3) Mic Input Connector 18) Phone Level Control 4) Mic Gain Control 19) FLD/ TRK Encoder 5) SD card slot 20) USB LED 6) USB slot 21) Single Button 7) Phone Output Connector... -
Page 9: Remote Control
Remote Control Fig. 4 33) SD/ USB Button 42) Loop Out Button 34) Direct Acces Buttons 43) Stop Button 35) Pitch – Button 44) Repeat Button 36) Pitch Button 45) Pitch + Button 37) Cue Button 46) SGL Button 38) Time Button 47) F. -
Page 10: Installation
It is a 6,3mm/ 1/4” TRS socket, wired as Tip=left, Ring=right and sleeve = ground. Caution: Depending on the type of headphones connected to the Headphones jack, the DS-UMP1 is capable of producing high output levels via the phones output. Therefore, make sure to turn the control all the way to the left (minimum setting) before connecting the headphones. - Page 11 15/ 50. RELOOP: This button is used to start the last saved loop. To finish the loop, press the button again. 16. Pitch Control: Use this control to adjust the pitch of the track. Turn to the right to increase the pitch, turn to the left to decrease the pitch.
-
Page 12: Operations
Operations 1. Selecting Tracks Using the FLD/ TRK encoder • Turn the FLD/ TRK Encoder to browse the tracks. • When a new track is selected during playback, playback begins as soon as the track is selected. 2. Selecting Tracks Using the Skip buttons •... -
Page 13: Setting A Cue Point
7. Setting a Cue Point • Press the Play/Pause button to switch between play and pause. • The play indicator flashes when the pause mode is set. • Use the Fast Backwards and Fast Forwards buttons to go to your desired Cue point. •... -
Page 14: Reloop
12. Reloop 1. If you press the Reloop button, the DS-UMP1 starts at the last selected loop. 2. Press the button over and over rapidly to start the loop again and again. 3. Press one of the Loop buttons again, the loop play function is canceled, the Loop indicator dimms. -
Page 15: Product Specifications
Product Specification Power supply: AC 80-260 V - 50/60 Hz Power consumption: 5 Watt Pitch control: 24% +/- S/N ratio: >96 dB Frequency response: 20 Hz - 20 kHz Headphone connector: 6,3 mm jack Micro connector: XLR 3 pole balanced Audio output: Stereo XLR balanced, Stereo RCA unbalanced Dimensions: 482 x 45 x 260 mm (LxWxH) Weight: 2,4 kg... - Page 16 2009 Dap Audio.
