LED Indicators

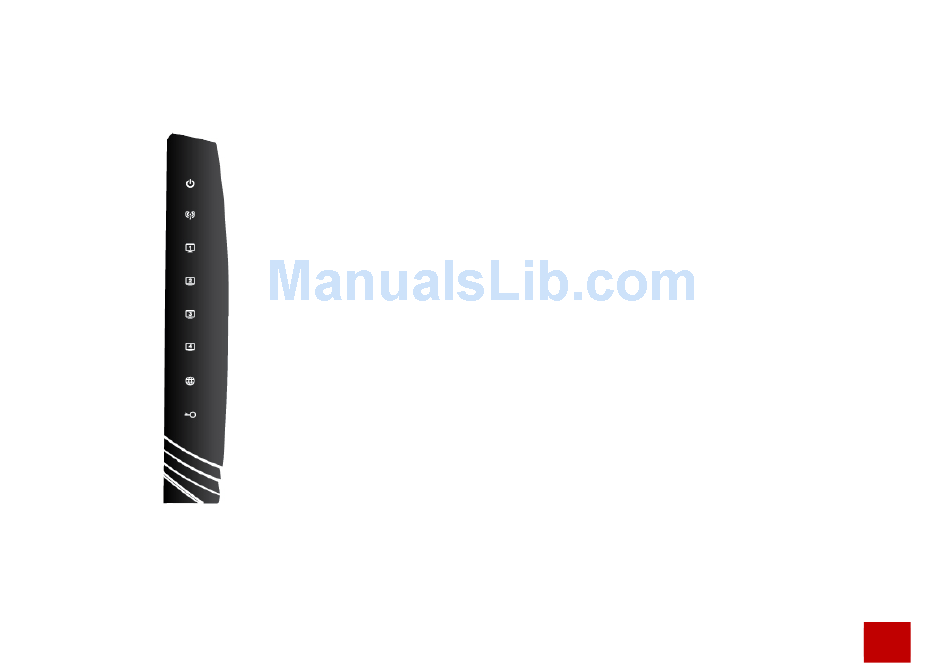

(From top to bottom)
Power: Indicates when the High Power Router is powered on. The LED will stay lit
when the power adapter is plugged into the router.
Wireless Activity: Blinks rapidly when wireless data traffic is transmitted or received
over the wireless network.
Gigabit Wired Ports 1-4: Indicates when a networking device is connected to a wired
port on the back of the High Power Router. The LED blinks rapidly when wired data
traffic is transmitted or received.
Internet Connection: Indicates when the High Power Router is connected to a
broadband modem. The LED will blink when Internet traffic is transmitted or received.
WPS: Wi-Fi Protected Setup activity. When the WPS mode is activated the WPS LED
blinks as it awaits a connection.
