Assembly — Hanging the Fan (continued)
3

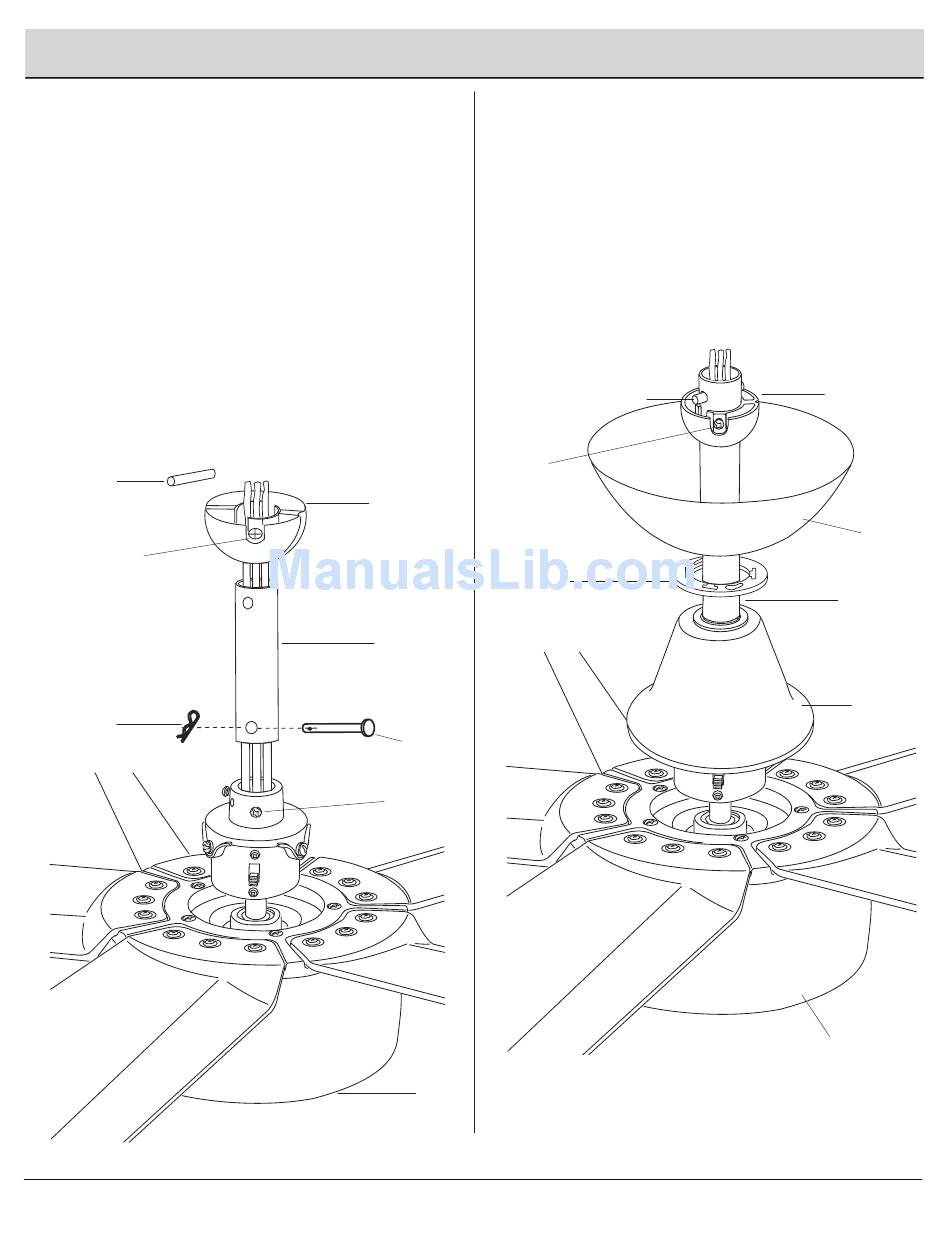

Attaching the downrod to the
fan motor assembly
□
Loosen the two set screws (JJ) from the fan motor
assembly (H) coupling.
□
Remove the hitch pin (GG) and lock pin (HH) from the
downrod (F). Then, remove the hanger ball (E) from the
downrod (F) by loosening the hanger ball set screw (II),
and removing the cross pin (FF), then sliding the hanger
ball (E) off of the downrod (F).
□
Carefully feed the fan wires up through the downrod (F).
Thread the downrod (F) into the fan motor assembly (H)
coupling. Line up the holes and replace the lock pin (HH)
and the hitch pin (GG). Retighten the set screws (JJ).
FF
II
GG
4
□
□
II
E
F
HH
JJ
H
9
Attaching the coupling cover, canopy
cover, and canopy to the downrod
Slip the coupling cover (G), canopy cover (D), and canopy
(C) onto the downrod (F).
Carefully reinstall the hanger ball (E) onto the downrod (F),
and ensure that the cross pin (FF) is in the correct position,
the set screws (II) are tight, and the wires are not twisted.
FF
D
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986 3460 for further assistance.
