Item #1005 724 514
1005 724 324
Model #34611
34612
USE AND CARE GUIDE

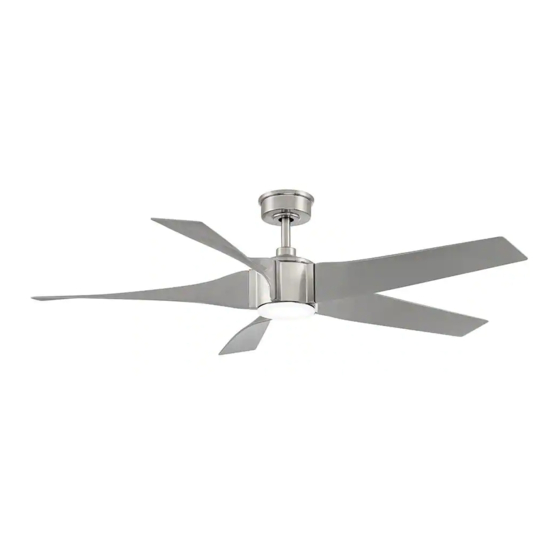

SKY PARLOR 56 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators SKY PARLOR 34611
Summary of Contents for Home Decorators SKY PARLOR 34611
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..................Safety Information . -
Page 3: Safety Information
Safety Information used in accordance with the instructions, may cause harmful To reduce the risk of electric shock, ensure electricity has been interference to radio communications. turned off at the circuit breaker or fuse box before beginning. However, there is no guarantee that interference will not occur All wiring must be in accordance with the National Electrical in a particular installation. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with lock washer 15+1 (spare) Blade arm screw and lock washer 10+1 (spare) 23A 12V battery Balancing kit HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade support plate Canopy Light kit mounting plate Hanger ball/downrod assembly 20 watt LED Light kit Coupling cover Glass shade Fan motor assembly Remote control Blade arm Remote holder... -
Page 7: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (GG) and clevis pin (HH), and loosen the two collar setscrews (II) from the motor collar. Remove the two non-slotted canopy mounting screws (FF) from the canopy (C), and loosen the slotted canopy Take out the setscrew (JJ) located in the hanger ball (KK), mounting screws (FF) on the canopy (C). -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Attaching the mounting bracket to Hanging the fan to the mounting the electrical box bracket WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball / downrod assembly (D). -
Page 10: Preparing The Remote Control
Assembly — Hanging the Fan (continued) Preparing the remote control NOTE: This DC motor fans is equipped with a learning frequency function which has 32 code combinations to prevent potential interference from other remote units. The frequency on your Receiver and Transmitter units have been preset at the factory. - Page 11 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 12 Assembly — Hanging the Fan (continued) Installing the canopy Outlet Box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place.
-
Page 13: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the blades to the blade arms Attach the fan blades (H) to the blade arms (G) using the blade support plates (I) and screws with lock washers (BB) provided. Tighten the screws with lock washers (BB) securely. -
Page 14: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting plate to the mounting ring WARNING: To reduce the risk of personal injury, do not bend the blade arms (G) while installing, balancing the blades (H), or cleaning the fan. Do no insert foreign objects between rotating fan blades (H). - Page 15 Assembly — Hanging the Fan (continued) Attaching the LED light kit and glass shade CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
-
Page 16: Operation
Operation PAIRING PROCESS NOTE: The pairing function will only mandate within 60 seconds when turning the fan’s AC power ON. Select desired frequency from the back of transmitter. Press the transmitter’s “ ” button, and hold the “ ” button for over 5 seconds. Once the receiver has detected the frequency, the fan will automatically begin to operate and start to run for 10 seconds. -
Page 17: Reverse Switch Operating Instructions
Operation (continued) NOTE: The learning frequency function and self calibration test will continue to retain the last set frequency and calibration set even when the AC power is shut off. If the frequency is changed, the self calibration test will occur again. Lock position: The DC motor has a built-in safety against obstruction during operation. -
Page 18: Care And Cleaning
Care and Cleaning Do not Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time. - Page 19 Troubleshooting (continued) Problem Solution Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting The fan sounds noisy. bracket and outlet box. Do not connect the fan with wall mounted variable speed control(s). The remote control is Make sure the frequency switches are set correctly.
-
Page 20: Service Parts
Service Parts Description Part Description Part Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Blade attachment screw with lock washer Canopy Blade arm screw and lock washer Hanger ball/downrod assembly 23A 12V battery Coupling cover Balancing kit Fan motor assembly Blade arm Blade Blade support plate... - Page 21 Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Downrod Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
