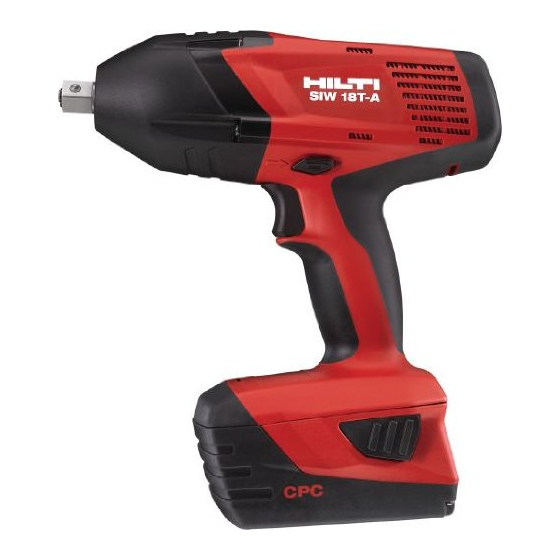

- Page 1 SIW 18T-A Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 2 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 3 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 4 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 5 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 6 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 7 Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
- Page 8 ETL listed to US and Canadian safety standards Homologué ETL (conforme aux normes de sécurité américaines et canadiennes) Producto homologado según normas de seguridad americanas y canadienses Produto homologado de accordo com as normas de segurança americanas e canadianas Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03...
-
Page 9: Table Of Contents
These numbers refer to the illustrations. You can find the illustrations at the beginning of the operating instructions. In these operating instructions, the designation “power tool” refers to the SIW 18T-A cordless impact wrench with battery fitted. Product overview Chuck... -
Page 10: General Information
1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to serious bodily injury or fatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality. CAUTION Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property. -
Page 11: Safety Instructions
The type designation can be found on the type identification plate and the serial number on the side of the motor housing. Make a note of this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: Generation: 01 Serial no.:... - Page 12 2.1.1 Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 13 pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 14 2.1.5 Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 15 h) The appliance is not intended for use by debilitated persons who have received no special training. Keep the appliance out of reach of children. Dust from materials, such as paint containing lead, some wood species, concrete / masonry / stone containing silica, and minerals as well as metal, may be harmful.
-
Page 16: Description
Do not use the battery as a power source for other unspecified appliances. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. The power tool should not be used for applications that require a precise torque. - Page 17 NOTE Approved accessories are available from your Hilti Center or can be ordered online at www.hilti.com. 3.3 Additional items required for operating the tool A suitable battery of the specified type (see table in the Technical Data section) and a suitable battery charger from the C 4⁄36 series.
-
Page 18: Technical Data
4 Technical data Right of technical changes reserved. Power tool SIW 18TA ½" SIW 18TA ¾" Rated voltage (DC 21.6 V 21.6 V voltage) Weight 3.0 kg 3.2 kg Rated speed under no 0…2,000/min 0…2,000/min load Hammering speed Max. 2,500/min Max. -
Page 19: Before Use
5 Before use 5.1 Charging a previously used battery Ensure that the outer surfaces of the battery are clean and dry before inserting the battery in the corresponding charger. Read the operating instructions for the charger for further information about the charging procedure. - Page 20 6.1.1.1 Fitting the socket 1. Set the forward / reverse switch to the middle position or remove the battery from the power tool. 2. Align the hole in the side of the nut driver with the retention ball on the square drive.
-
Page 21: Care And Maintenance
If use continues, further battery discharge will be stopped automatically before the battery cells suffer damage. – Charge the batteries using the specified and approved Hilti battery chargers for Liion batteries. Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03... -
Page 22: Troubleshooting
Electrical fault. Remove the battery from the tool and contact Hilti Service. The power tool does- The battery is Change the battery and n’t run and 1 LED discharged. -
Page 23: Disposal
