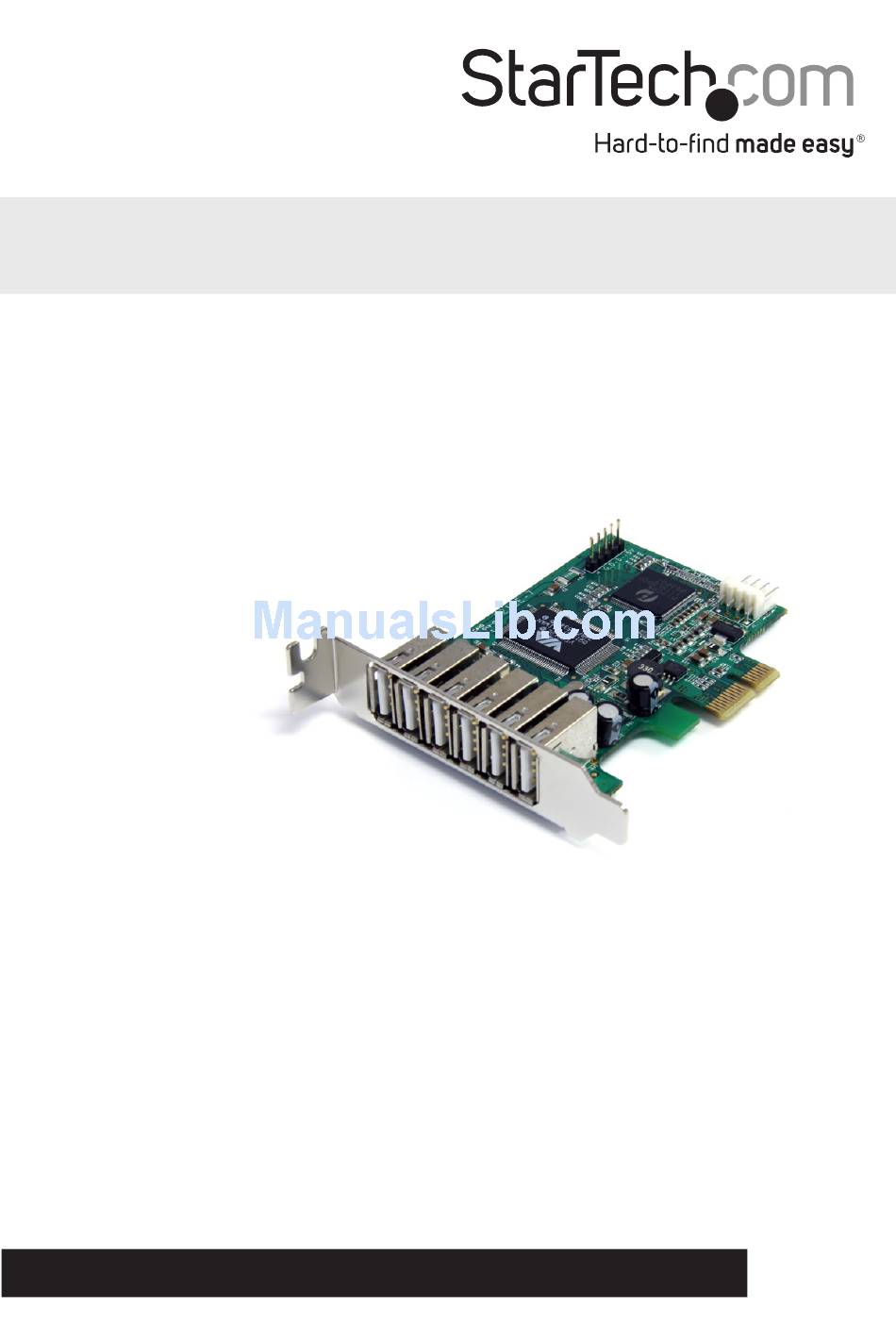

Instruction Manual

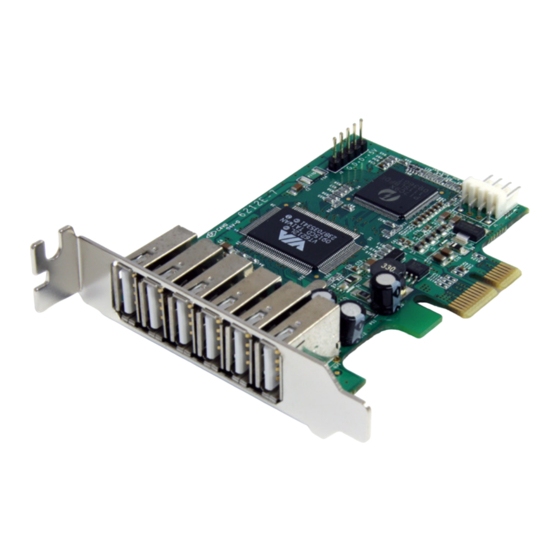

7 Port PCI Express Low Profile High Speed
USB 2.0 Adapter Card
PEXUSB7LP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/10/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXUSB7LP
Summary of Contents for StarTech.com PEXUSB7LP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/10/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Hardware Installation ..........................2 Driver Installation ............................3 Verifying Installation ..........................3 Specifications ..............................4 Technical Support ............................5 Warranty Information ............................5 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com 7-Port PCI Express to USB 2.0 Adapter Card adds an additional 6 external and 1 internal USB 2.0 ports to any PCI Express compatible computer system. Designed for versatility and performance with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, this low profile USB card also includes a standard profile (full height) bracket for installation in full form factor cases. -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti- static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
Driver Installation Windows XP/Server 2003/Vista/Server 2008 R2/7 No driver installation is required for these operating systems, as this USB card is natively supported, so the drivers are already installed. Verifying Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. -
Page 7: Specifications
Specifications PCI Express rev 1.1 Bus Interface (x1 connector) Chipset ID VIA VT6212L External Connectors* 6 x USB type A 1 x 5-pin IDC USB header Internal Connectors 1 x SP4 floppy power Maximum Data Transfer Rate USB 2.0: 480Mbps Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
