Summary of Contents for StarTech.com PEXUSB3S2

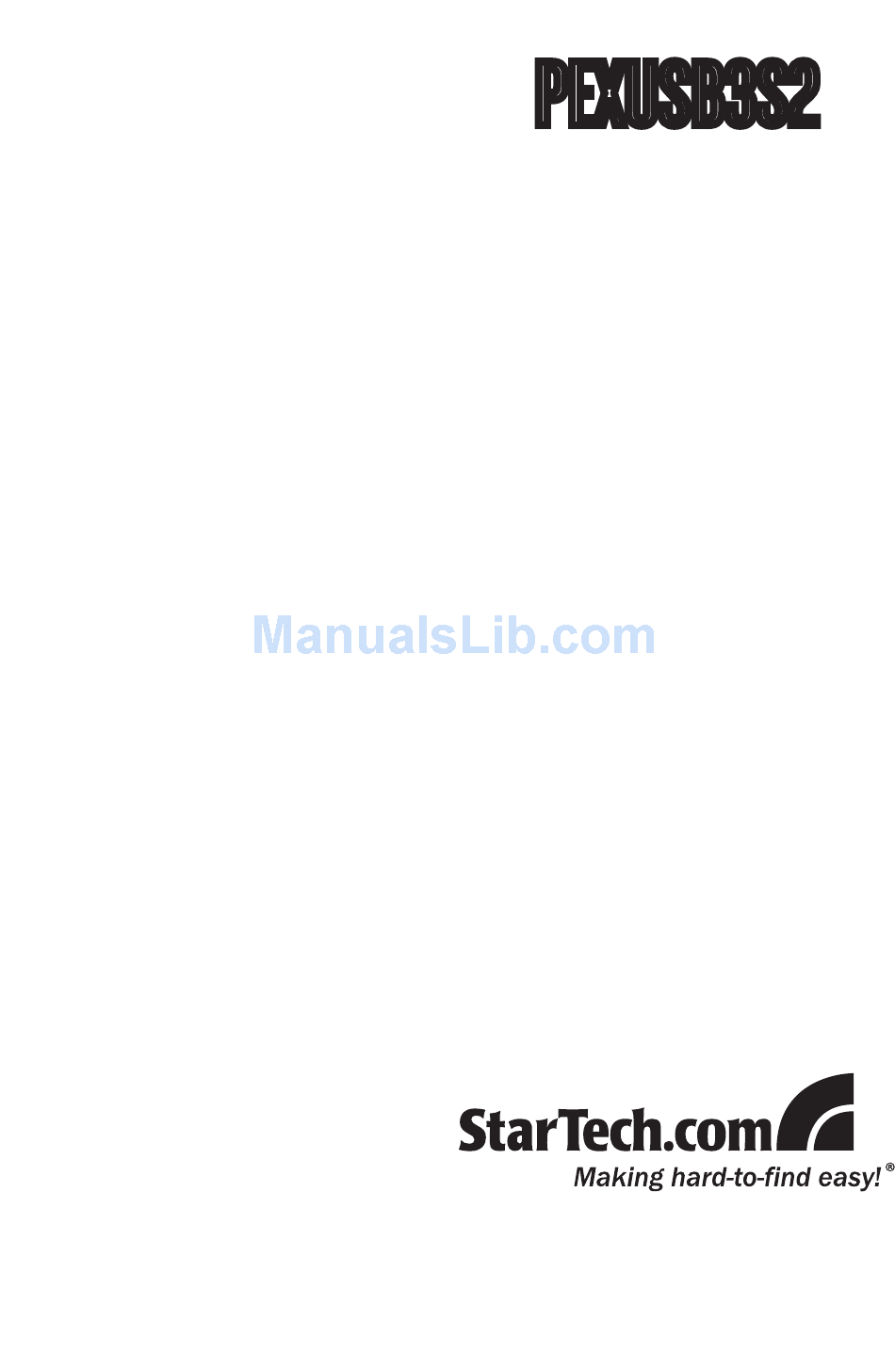

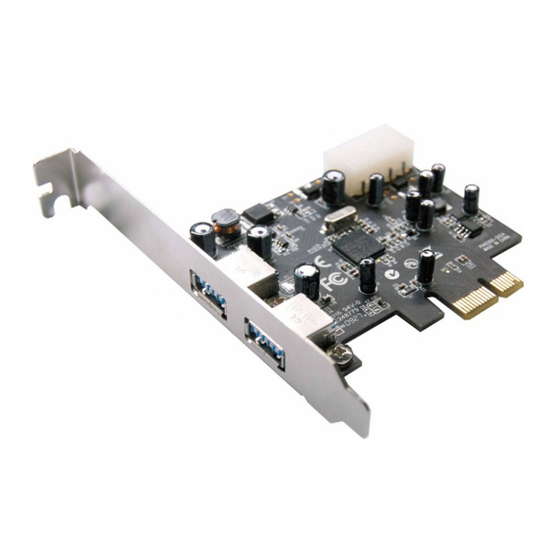

- Page 1 PEXUSB3S2 Instruction Manual PCI Express USB 3.0 Controller Adapter Card 2-Port PCI Express SuperSpeed USB 3.0 Controller Adapter Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............2 Driver Installation .................3 Verifying Installation ..............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices. In addition to providing a much faster transfer rate the PEXUSB3S2 USB 3.0 card also supplies 900mA of power per USB port, allowing for more external devices to operate without the need of an external power source. -
Page 5: Hardware Installation
LP4 molex connector USB 3.0 type A ports Hardware Installation Turn your computer off and any peripherals connected to the computer (ie. printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer. Remove the cover from the computer case. -
Page 6: Driver Installation
Driver Installation Windows 2000/XP/Server 2003/Vista/7 Once the computer has started and the operating system is fully loaded, insert the provided Driver CD into the computer’s CD/DVD drive. Autorun should start the installation program, so follow the instructions onscreen to complete the driver installation. If Autorun does not start, Go into “My Computer”... -
Page 7: Specifications
Specifications PCI Express 2.0 (x1 connector) Bus Interface USB 3.0 rev1.0 Intel xHCI rev0.95 External Connectors 2 x USB 3.0 type A Internal Connectors 1 x LP4 molex power Chipset ID NEC uPD720200 Maximum Data Transfer Rate USB 3.0: 5Gbps Operating Temperature C to 75 C (32... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
