5-Port USB 3.1 (10Gbps) Combo Card - 1x USB-C™,
2x USB-A + 2x IDC (5Gbps)
PEXUSB312EIC
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/PEXUSB312EIC
Manual Revision: 04/28/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXUSB312EIC
Summary of Contents for StarTech.com PEXUSB312EIC

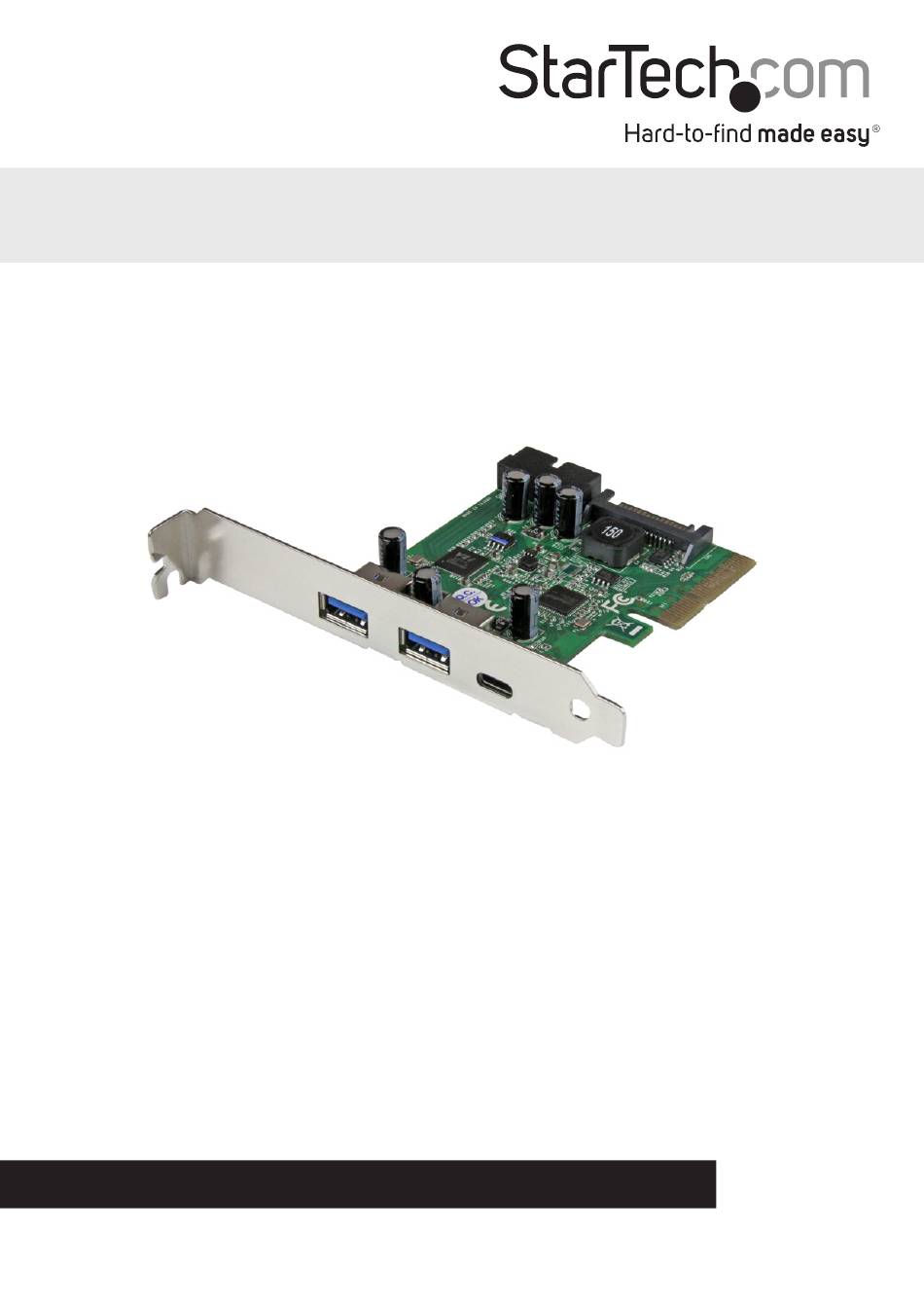

- Page 1 5-Port USB 3.1 (10Gbps) Combo Card - 1x USB-C™, 2x USB-A + 2x IDC (5Gbps) PEXUSB312EIC *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................1 Introduction ....................2 Packaging contents ..........................2 Requirements ............................. 2 Motherboard header pinout (19-pin USB 3.0) ........3 About USB 3.0, USB 3.1 Gen 1, and USB 3.1 Gen 2 ....................4 About the card’s USB-C port ..............4 Hardware installation ................4 Install the low-profile bracket ....................... -
Page 4: Product Diagram

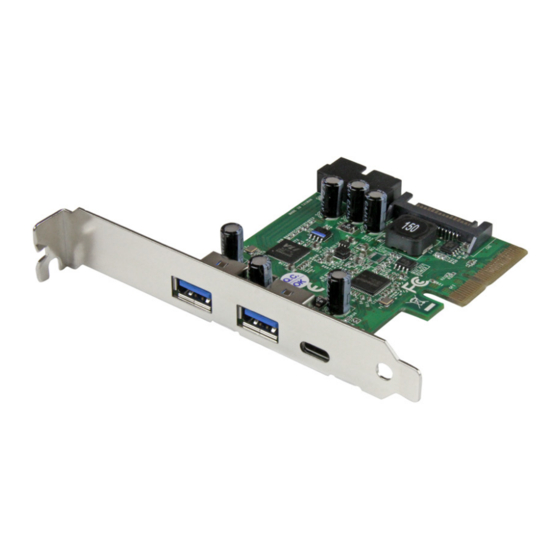

Product diagram Front view Bracket (full-profile USB 3.0 ports USB 3.1 port pictured) (USB-A) (USB-C) Rear view PCI Express x4 connector SATA power 19-pin USB 3.0 port connector (two-port motherboard header) Instruction manual... -
Page 5: Introduction
Introduction This 5-port USB 3.1 combo card lets you add a variety of types and generations (speeds) of USB ports to your computer through a PCI Express slot. It offers: • One external USB-C™ port (USB 3.1 Gen 2 - 10Gbps) •... -
Page 6: About Usb 3.0, Usb 3.1 Gen 1, And Usb 3.1 Gen 2
PEXUSB312EIC refers to the 5Gbps USB 3.1 Gen 1 standard. Any mention of USB 3.1 Gen 2 refers to the 10Gbps Gen 2 standard. The PEXUSB312EIC has both USB 3.1 Gen 1 (5Gbps) and USB 3.1 Gen 2 (10Gbps) ports. About the card’s USB-C port Not all USB-C ports support the full functionality of the USB Type-C standard. -
Page 7: Driver Installation
1. If the Found New Hardware dialog box appears on your screen, close the dialog box or click Cancel. 2. To download the latest drivers, open a web browser and navigate to www.startech.com/PEXUSB312EIC. 3. Click the Support tab. 4. Download the driver. - Page 8 5. When the download is complete, extract the contents of the compressed file that you downloaded. 6. Double-click the appropriate driver for the version of operating system that you’re running and follow the on-screen instructions to complete the installation. 7. If prompted, restart your computer to complete the installation. Instruction Manual...
-
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
