2 Port PCI Express USB 3.0 Card with SATA Power

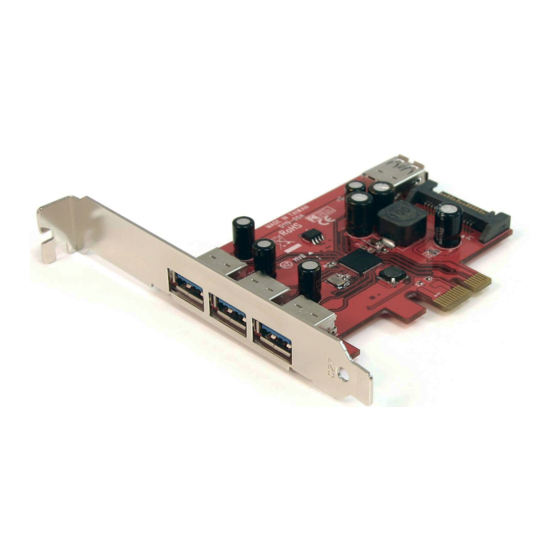

4 Port PCI Express USB 3.0 Card with SATA Power
PEXUSB3S22
PEXUSB3S4
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/17/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXUSB3S22
Summary of Contents for StarTech.com PEXUSB3S22
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/17/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 PEXUSB3S22 View ............................. 2 PEXUSB3S4 View ............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Verifying Installation ..........................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 4: Introduction
Introduction The PEXUSB3S22 and PEXUSB3S4 PCI Express SuperSpeed USB 3.0 Card with SATA Power provides two or four USB 3.0 ports respectively to any PCI Express enabled computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up to 5 Gbps, while still being backwards compatible with existing USB 2.0 devices at... -
Page 5: Pexusb3S22 View
PEXUSB3S22 View PEXUSB3S4 View Instruction Manual... -
Page 6: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap... -
Page 7: Driver Installation
If Autorun does not start, Go into “My Computer” and access the CD/DVD drive that the CD is in. 3. PEXUSB3S22: Run the “setup.exe” file located in “USB3.0 Host \ NEC”. Follow the onscreen instructions to complete the driver installation. -
Page 8: Verifying Installation
Verifying Installation Windows XP/Server 2003/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager, under the Universal Serial Bus Controllers category, you should see the new entries for the USB 3.0 controller card. -
Page 9: Specifications
Specifications PEXUSB3S22 PEXUSB3S4 Number of Ports PCI Express 2.0 (x1 slot connector) Host Interface USB 3.0 revision 1.0 Form Factor Low/Full Profile Texas Instruments Chipset ID NEC uPD720200 TUSB7340 External Connectors 2 x USB 3.0 type A female 3 x UBS 3.0 type A female 1 x USB 3.0 type A female... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
