Instruction Manual

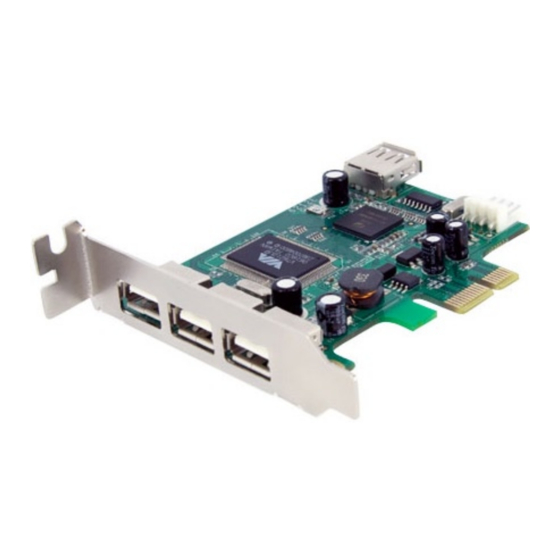

4 Port PCI Express Low Profile High Speed USB Card
PEXUSB4DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/30/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com PEXUSB4DP
Summary of Contents for StarTech.com PEXUSB4DP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/30/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................2 Hardware Installation ..........................2 Driver Installation ............................3 Verifying Installation ..........................3 Specifications ..............................4 Technical Support ............................5 Warranty Information ............................5 Instruction Manual... -
Page 4: Introduction
2.0 peripherals (3 external and 1 internal) to your computer at data transfer rates of up to 480 Mbps. Configured with a low profile bracket, it also includes a full standard bracket. Packaging Contents • 1 x PEXUSB4DP adapter card • 1 x Full Profile Bracket • 1 x Driver CD • 1 x Installation Manual... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
Driver Installation Windows 2000/XP/Vista, Mac OS X, Linux No driver installation is required for these operating systems, as this adapter card is natively supported, so the drivers are already installed. Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. -
Page 7: Specifications
Specifications PCI Express rev 1.1, Bus Interface x1 connector EHCI rev. 0.95 USB Specification UHCI rev. 1.1 3 x USB type A (external) Connectors 1 x USB type A (internal) 1 x SP4 power (internal) VIA VT6212L Chipset Pericom PI7C9X110BNBE Maximum Data Transfer Rate 480 Mbps Windows 2000/XP/Vista/7 (32/64-bit),... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
