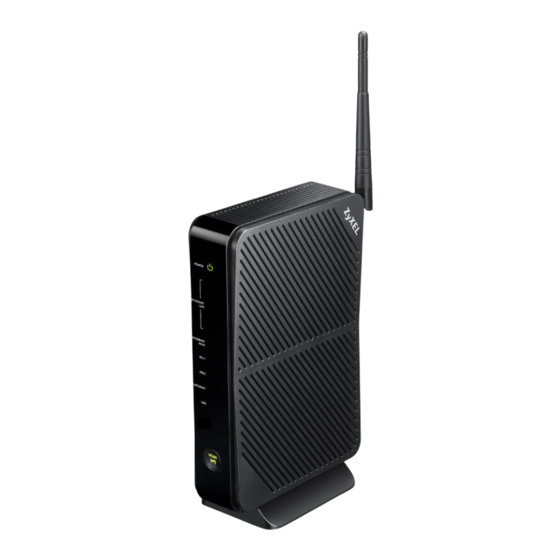

ZyXEL Communications VMG4380-B10A Quick Start Manual

Wireless n vdsl2 4-port bonding combo wan gigabit gateway
Hide thumbs Also See for VMG4380-B10A:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Manual
VMG4380-B10A
VMG4325-B10A
Wireless N VDSL2 4-port Bonding Combo
WAN Gigabit Gateway with HPNA
Wireless N VDSL2 4-port Bonding Combo
WAN Gigabit Gateway with USB
Firmware Version 1.00
Edition 1, 10/2012
DEFAULT LOGIN DETAILS
IP Address:
User Name:
Password:
www.zyxel.com
http://192.168.1.1
admin
1234
Copyright 2012
ZyXEL Communications Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMG4380-B10A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications VMG4380-B10A

Summary of Contents for ZyXEL Communications VMG4380-B10A

  • Page 1 Wireless N VDSL2 4-port Bonding Combo WAN Gigabit Gateway with HPNA Wireless N VDSL2 4-port Bonding Combo WAN Gigabit Gateway with USB Firmware Version 1.00 Edition 1, 10/2012 DEFAULT LOGIN DETAILS IP Address: http://192.168.1.1 User Name: admin Password: 1234 Copyright 2012 ZyXEL Communications Corporation www.zyxel.com...
  • Page 2 Device Panels POWER POWER RESET ETHERNET 1-4 ETHERNET WAN HPNA ETHERNET WAN (VMG4380-B10A only) DSL 1 DSL 2 INTERNET ETHERNET 1-4 HPNA (VMG4380-B10A only) WLAN/WPS DSL 1 DSL 2...

  • Page 3: Hardware Setup

    VMG4380-B10A / VMG4325-B10A Requirements Make sure you have the following things before you start: • INTERNET ACCESS: You need an Internet account with an ISP (Internet Service Provider) and information such as your user name, password, and so on. • WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later...
  • Page 4 To connect your Device: (VMG4380-B10A only)
  • Page 5 3. ETHERNET: Use an Ethernet cable to connect a computer to an Ethernet port for initial configuration and/or Internet access. 4. HPNA: (VMG4380-B10A only) Use a coaxial cable to connect to a coaxial outlet and relay Internet traffic throughout your house through coaxial cabling.

  • Page 6: Set Up A Wireless Network

    • The USB light turns on when your Device detects a connected USB device. • The HPNA light (VMG4380-B10A only) stays on if the HPNA port is properly connected and blinks when there is traffic. • The DSL1,2 lights are green when your Device has an ADSL connection.
  • Page 7 VMG4380-B10A / VMG4325-B10A Follow these steps to add a WPS-enabled device to the wireless network using the WPS/WLAN button. Place the devices you want to connect near one another. Press the WPS button on the Device. The WPS light blinks green and orange.

  • Page 8: The Web Configurator

    The Web Configurator The Web Configurator is a web browser tool that allows you to configure the Device. The computer and the Device need to be in the same IP address range to use this tool. 1. Open your browser and enter http://192.168.1.1 (the Device’s default IP address) as the address.
  • Page 9 VMG4380-B10A / VMG4325-B10A 3. In the next screen, you can change the login password. This is recommended. Enter your new password in the New Password field. Re- type your new password in the second field and then click Apply. If you prefer not to change the password, leave the two fields blank and click Skip.
  • Page 10 5. The Network Map page appears. This shows whether the Device and computers/devices connected to it have Internet access.
  • Page 11 VMG4380-B10A / VMG4325-B10A 6. Click Status to display the following screen, where you can view the Device’s device, interface, and system information. See your User’s Guide for how to use the rest of the Web Configurator screens. You will need to refer to the section on how to setup the Broadband connection if the INTERNET LED (light) remains off.
  • Page 13 VMG4380-B10A / VMG4325-B10A Notice This Class [*] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada.

  • Page 14: Declaration Of Conformity

    The TCF-File is located at: Local contact for regulatory topics only : Company Name : ZyXEL Communications Corporation Company Address : Hsinchu Office : No. 2, Gongye E. 9th Rd., East Dist., Hsinchu City 300,Taiwan : No. 6, Innovation Road II, Science-Park,Hsin-Chu,300,Taiwan TAIPEI Office :11F., NO.223, SEC.
  • Page 15 VMG4380-B10A / VMG4325-B10A www.zyxel.com Declaration of Conformity Product information Wireless N VDSL2 4-port Bonding Combo WAN Gigabit Gateway Product Name with HPNA VMG4380-B10A Model Number Produced by Company Name ZyXEL Communications Corporation Company Add. No. 2, Gongye E. 9th Rd., East Dist., Hsinchu City 300, Taiwan...
