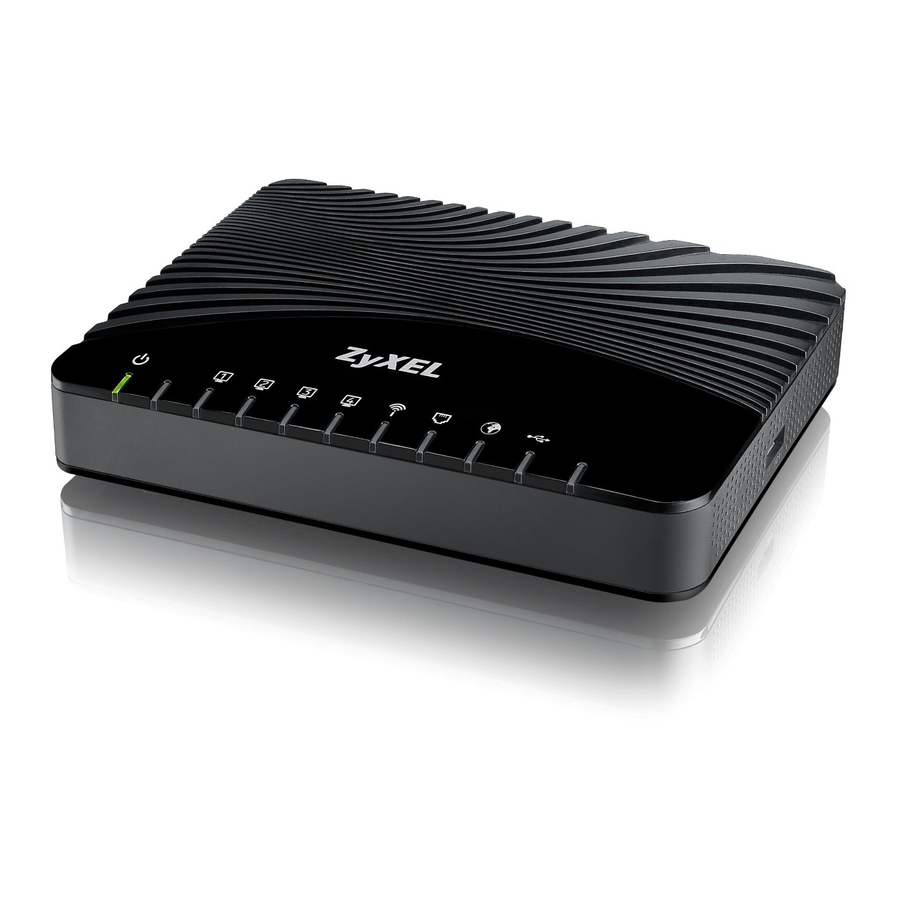

ZyXEL Communications VMG1312-B Series User Manual
  1. Manuals
  2. Brands
  3. ZyXEL Communications Manuals
  4. Gateway
  5. VMG1312-B Series
  6. User manual

ZyXEL Communications VMG1312-B Series User Manual

Wireless n vdsl2 4-port gateway with usb
Hide thumbs Also See for VMG1312-B Series:

Advertisement

Quick Links

Download this manual
VMG1312-B Series
Wireless N VDSL2 4-port Gateway with USB
Default Login Details
LAN IP
http://192.168.1.1
Address
User Name
Password
Version 1.00
Edition 1, 7/2012
www.zyxel.com
www.zyxel.com
admin
1234
IMPORTANT!
IMPORTANT!
READ CAREFULLY
BEFORE USE.
Copyright © 2012
ZyXEL Communications Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the VMG1312-B Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications VMG1312-B Series

Summary of Contents for ZyXEL Communications VMG1312-B Series

  • Page 1 VMG1312-B Series Wireless N VDSL2 4-port Gateway with USB Default Login Details IMPORTANT! LAN IP http://192.168.1.1 Address User Name admin IMPORTANT! Password 1234 READ CAREFULLY BEFORE USE. Version 1.00 Edition 1, 7/2012 www.zyxel.com www.zyxel.com Copyright © 2012 ZyXEL Communications Corporation...
  • Page 2 Internet access. • Support Disc Refer to the included CD for support documents. • ZyXEL Web Site Please refer to www.zyxel.com for additional support documentation and product certifications. VMG1312-B Series User’s Guide...
  • Page 3 Routing Table ............................251 IGMP Status ............................253 xDSL Statistics ............................255 User Account ............................259 Remote Management ..........................261 TR-069 Client ............................263 TR-064 ..............................265 Time Settings ............................267 E-mail Notification ..........................271 Logs Setting ............................273 Firmware Upgrade ..........................277 Configuration ............................279 Diagnostic .............................282 VMG1312-B Series User’s Guide...
  • Page 4 Contents Overview Troubleshooting ............................287 VMG1312-B Series User’s Guide...
  • Page 5 2.2.3 Navigation Panel ........................26 Chapter 3 Quick Start............................31 3.1 Overview ............................31 3.2 Quick Start Setup ..........................31 Chapter 4 Tutorials ...............................33 4.1 Overview ............................33 4.2 Setting Up an ADSL PPPoE Connection ..................33 4.3 Setting Up a Secure Wireless Network .....................36 VMG1312-B Series User’s Guide...
  • Page 6 6.2 The Broadband Screen ........................84 6.2.1 Add/Edit Internet Connection ....................85 6.3 The 3G Backup Screen ........................92 6.4 The Advanced Screen ........................96 6.5 The 8021x Screen ..........................97 6.5.1 Edit 802.1x Settings .........................98 6.6 Technical Reference ..........................98 Chapter 7 Wireless .............................105 VMG1312-B Series User’s Guide...
  • Page 7 8.5 Installing UPnP in Windows Example .....................145 8.6 Using UPnP in Windows XP Example ....................147 8.7 The Additional Subnet Screen ......................153 8.8 The STB Vendor ID Screen ......................154 8.9 The LAN VLAN Screen ........................155 8.10 Technical Reference ........................155 VMG1312-B Series User’s Guide...
  • Page 8 11.3 The Applications Screen .......................187 11.3.1 Add New Application ......................188 11.4 The Port Triggering Screen ......................188 11.4.1 Add/Edit Port Triggering Rule .....................190 11.5 The DMZ Screen ...........................191 11.6 The ALG Screen ..........................192 11.7 The Address Mapping Screen .......................192 VMG1312-B Series User’s Guide...
  • Page 9 Firewall ..............................215 15.1 Overview ............................215 15.1.1 What You Can Do in this Chapter ..................215 15.1.2 What You Need to Know ......................216 15.2 The Firewall Screen ........................217 15.3 The Service Screen ........................217 15.3.1 Add/Edit a Service ......................218 VMG1312-B Series User’s Guide...
  • Page 10 20.1 Overview ............................241 20.1.1 What You Can Do in this Chapter ..................241 20.1.2 What You Need To Know .....................241 20.2 The System Log Screen ........................242 20.3 The Security Log Screen .......................243 Chapter 21 Traffic Status ............................245 VMG1312-B Series User’s Guide...
  • Page 11 26.2 The User Account Screen ......................259 Chapter 27 Remote Management........................261 27.1 Overview ............................261 27.2 The Remote MGMT Screen ......................261 Chapter 28 TR-069 Client.............................263 28.1 Overview ............................263 28.2 The TR-069 Client Screen ......................263 Chapter 29 TR-064..............................265 29.1 Overview ............................265 VMG1312-B Series User’s Guide...
  • Page 12 35.2 What You Need to Know .......................282 35.3 Ping & TraceRoute & NsLookup ....................283 35.4 802.1ag ............................284 35.5 OAM Ping Test ..........................285 Chapter 36 Troubleshooting..........................287 36.1 Power, Hardware Connections, and LEDs ..................287 36.2 Device Access and Login ......................288 VMG1312-B Series User’s Guide...
  • Page 13 Appendix A Setting up Your Computer’s IP Address ...............295 Appendix B IP Addresses and Subnetting..................317 Appendix C Pop-up Windows, JavaScripts and Java Permissions ..........325 Appendix D Wireless LANs......................335 Appendix E IPv6 ..........................349 Appendix F Services........................357 Appendix G Legal Information ......................361 Index ..............................365 VMG1312-B Series User’s Guide...
  • Page 14 Table of Contents VMG1312-B Series User’s Guide...
  • Page 15 User’s Guide...
  • Page 17 Introducing the Device 1.1 Overview The VMG1312-B Series is a wireless VDSL router. It has a DSL port for super-fast Internet access over analog (POTS) telephone lines. The Device supports both Packet Transfer Mode (PTM) and Asynchronous Transfer Mode (ATM). It is backward compatible with ADSL, ADSL2 and ADSL2+ in case VDSL is not available.
  • Page 18 Internet to your network is blocked by default unless it is initiated from your network. This means that probes from the outside to your network are not allowed, but you can safely browse the Internet and download files. VMG1312-B Series User’s Guide...
  • Page 19 You can also use the Device as a media server. This lets anyone on your network play video, music, and photos from a USB device (B) connected to the Device’s USB port (without having to copy them to another computer). Figure 3 USB Media Server Application VMG1312-B Series User’s Guide...
  • Page 20 The wireless network is not activated. Green The ADSL line is up. Blinking The Device is initializing the ADSL line. Orange The VDSL line is up. Blinking The Device is initializing the VDSL line. The DSL line is down. VMG1312-B Series User’s Guide...
