Panduit CT-1701 Operating Instructions

Contour Crimp
CONTROLLED CYCLE
CRIMPING TOOL
Crimps Panduit #10 - #2 AWG
non-insulated P series terminals and
#14 - 10 AWG copper
code conductor lugs.
Includes 5-position, rotating die.
Provides UL Listed and CSA Certified terminations
with applicable Panduit terminals.
Part No. CT-1701

OPERATION INSTRUCTIONS

Website: www.panduit.com
Email: cs@panduit.com
EU Website: www.panduit.com/emea
EU Email: emeatoolservicecenter@panduit.com
CT-1701: PA23829A01_03
CT-1701
© Panduit Corp. 2011

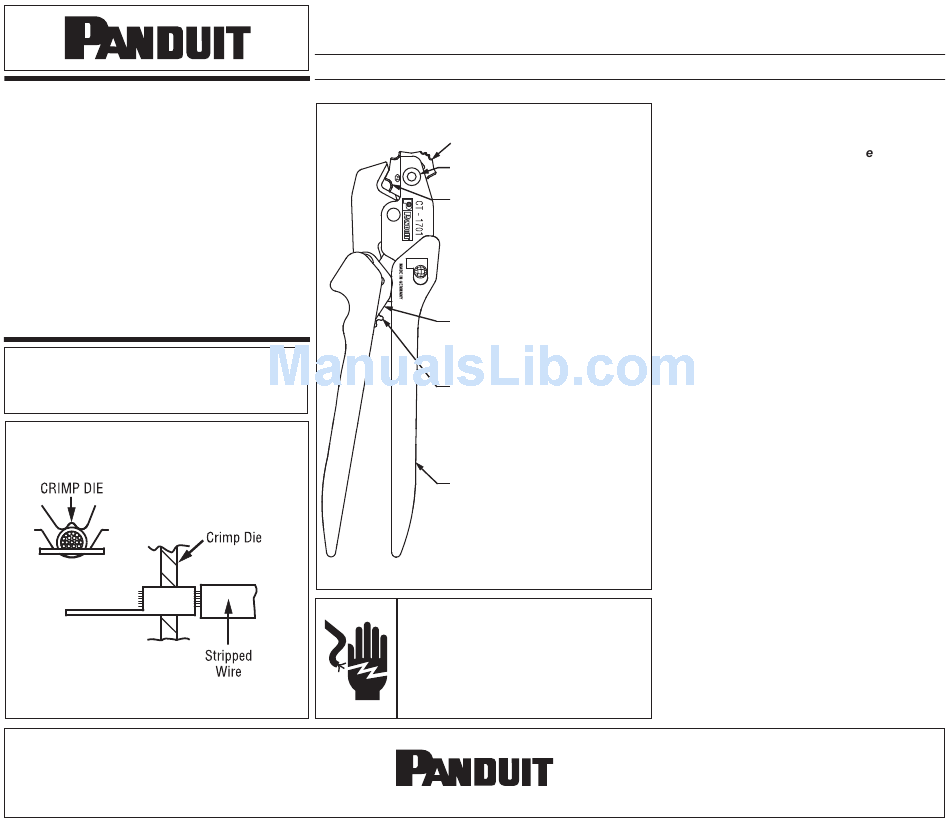

Figure 2
CAUTION: Verify power is "OFF" before
working on wiring with this tool. The
cushioned grips are for the user's comfort,
and are not intended to insulate against
shock
electrical circuits.
OPERATION INSTRUCTIONS
Figure 1
Rotating Crimp Die Wheel
Crimp Die Release Push Button
CRIMP POCKETS FOR
Panduit ® Compression
Connectors.
Refer to product packaging for
wire range and proper crimp
pocket. Crimp pockets are
identified with applicable die
index number.
Controlled cycle mechanism
prevents tool from opening
before crimp cycle is complete.
Manual release lever, push
forward in the event that
controlled cycle mechanism
must be released.
Cushioned Handle Grips
while working on live
Page: 1 of 2
COPPER COMPRESSION CONNECTOR
CRIMPING INSTRUCTIONS
1. With the handles in the op n position,
depress die release and rotate die to desired
pocket. The pocket will lock in place when
an audible "click" is heard (Die index number
appears to the left of corresponding pocket).
CAUTION: Do not cycle tool unless the
die release button has seated and the die
has locked in place.
Refer to product packaging for selection of
the proper crimp pocket. Place the desired
compression connector in the crimp pocket
(See Fig. 2).
2. Close handles until the connector is held
snugly in position—do not deform the
barrel.
3. Insert the stripped wire into the connector
until the wire stops. Refer to product
packaging for wire strip length.
4. Crimp the connector by closing the handles
until the controlled cycle mechanism
releases. Repeat this operation for the
compression connectors that require more
than one compression. Upon release, the
handles will open automatically and the
crimped connector can be removed.
After crimping, inspect that the crimp is
centered on the barrel in order to achieve
optimal pullout performance.
Panduit Corp. • USA Technical Support
Tel: 888-506-5400, ext. 3255 • Fax: 630-759-7532
Panduit Europe • EMEA Service Center
Tel: +31 546 580 452 • Fax: +31 546 580 441
PA23829A01
Rev.: 03 1-2011
