Q U I C K R E F E R E N C E

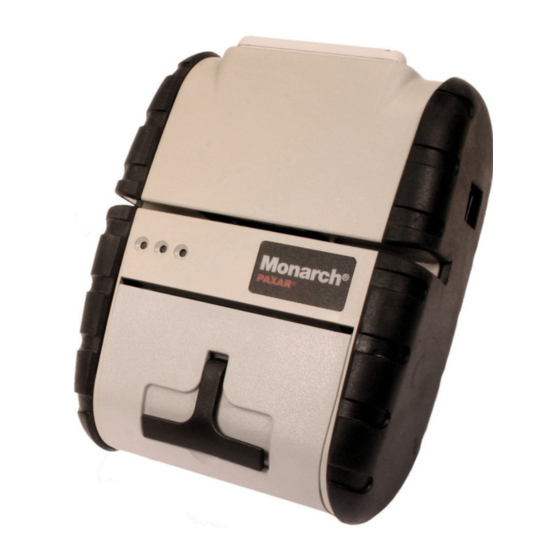

Use this Quick Reference along with your Monarch 9430RX
Printer. More information can be found in the Operator's Handbook
and Programmer's Manual.

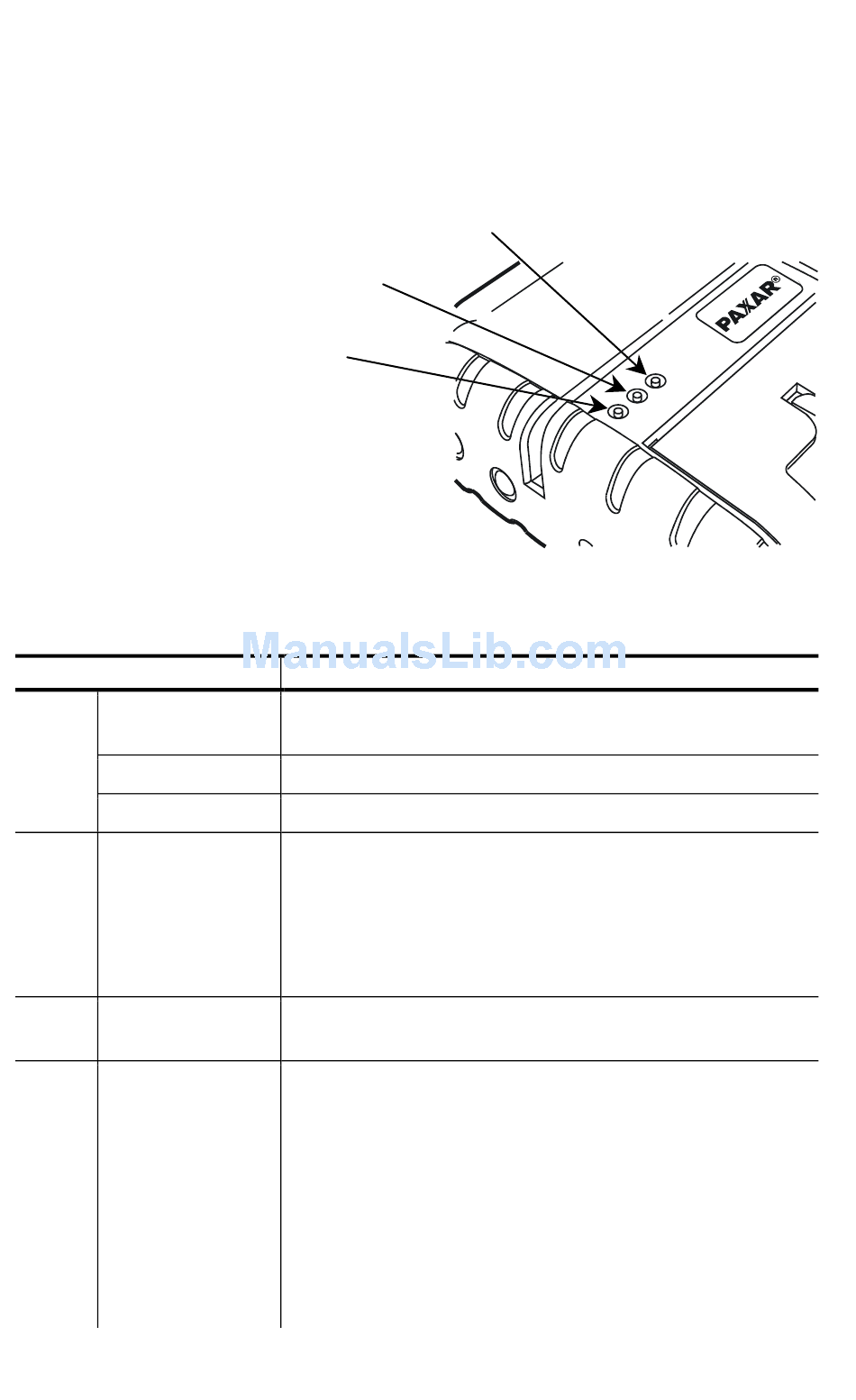

Reading the LED Indicators

This table explains the LED indicators.
LED Indicators
LED 1 Orange/Purple The printer has low power. Purple for
Green
Blue
LED 2 Amber
LED 3 Red/Orange
Green
T C 9 4 3 0 R X Q R R e v . AA 1 0 / 0 5
LED 2
LED 3
Status
Bluetooth® and orange for RS232.
The printer is on RS232 or IrDA mode.
The printer is in Bluetooth mode.
The battery is charging at a fast rate. If the
battery voltage is below 5.0V, the battery is
"trickle" charged until the battery reaches
5.0V. The battery is then "fast" charged.
This LED is Off once the battery is fully
charged.
The printer has an error and is not ready to
accept data or it is out of paper.
The printer is on and ready to accept data.
If there is no activity for longer than
20-30 seconds, the printer goes into sleep
mode to conserve the battery. Refer to the
Programmer's Manual to change this time
interval. The printer "wakes up" when it
receives any information from the host or
you press the power button.
With Bluetooth® printers, the printer has a
mode where it can stay on all the time.
