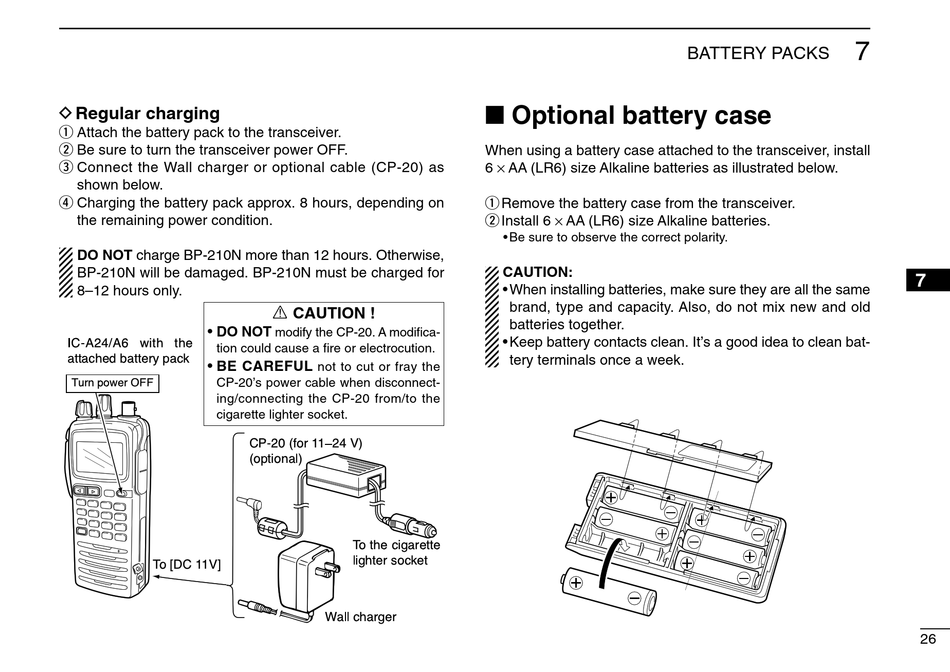

D Regular charging
q Attach the battery pack to the transceiver.
w Be sure to turn the transceiver power OFF.
e Connect the Wall charger or optional cable (CP-20) as
shown below.
r Charging the battery pack approx. 8 hours, depending on
the remaining power condition.
DO NOT charge BP-210N more than 12 hours. Otherwise,
BP-210N will be damaged. BP-210N must be charged for
8–12 hours only.
• DO NOT
IC-A24/A6 with the
tion could cause a fire or electrocution.
attached battery pack
• BE CAREFUL
CP-20's power cable when disconnect-
Turn power OFF
ing/connecting the CP-20 from/to the
cigarette lighter socket.
To [DC 11V]
R CAUTION !
modify the CP-20. A modifica-
not to cut or fray the
CP-20 (for 11 24 V)
(optional)
To the cigarette
lighter socket
Wall charger

I Optional battery case

When using a battery case attached to the transceiver, install
6 × AA (LR6) size Alkaline batteries as illustrated below.
q Remove the battery case from the transceiver.
w Install 6 × AA (LR6) size Alkaline batteries.
• Be sure to observe the correct polarity.
CAUTION:
• When installing batteries, make sure they are all the same
brand, type and capacity. Also, do not mix new and old
batteries together.
• Keep battery contacts clean. It's a good idea to clean bat-
tery terminals once a week.
7
BATTERY PACKS
7
26
