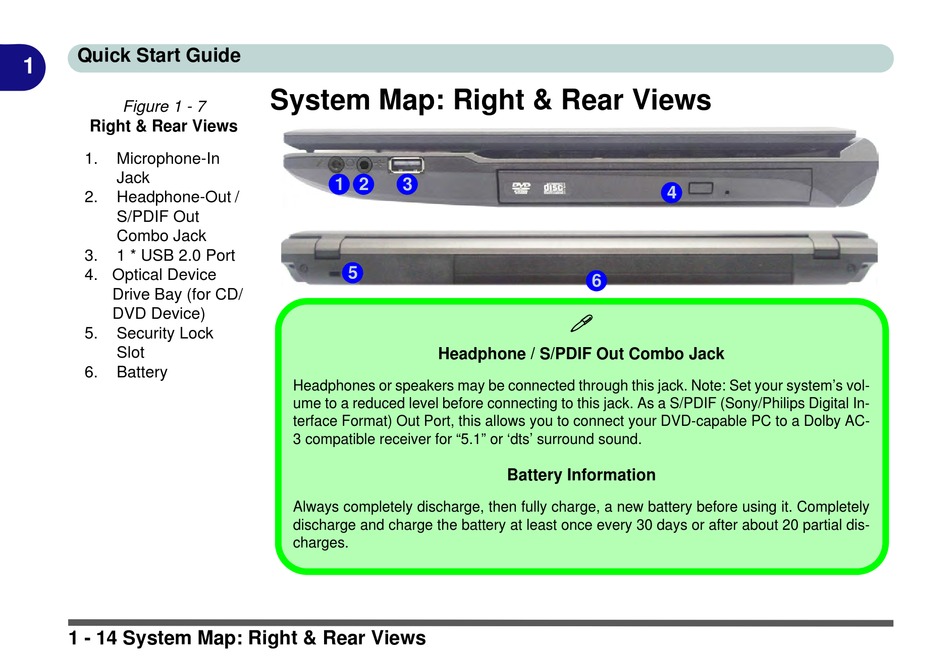

Figure 1 - 7
Right & Rear Views
1. Microphone-In
Jack
2. Headphone-Out /
S/PDIF Out
Combo Jack
3. 1 * USB 2.0 Port
4. Optical Device
Drive Bay (for CD/
DVD Device)
5. Security Lock
Slot
6. Battery
1 - 14 System Map: Right & Rear Views
System Map: Right & Rear Views
1 2 3
5
Headphone / S/PDIF Out Combo Jack
Headphones or speakers may be connected through this jack. Note: Set your system's vol-
ume to a reduced level before connecting to this jack. As a S/PDIF (Sony/Philips Digital In-
terface Format) Out Port, this allows you to connect your DVD-capable PC to a Dolby AC-
3 compatible receiver for "5.1" or 'dts' surround sound.
Always completely discharge, then fully charge, a new battery before using it. Completely
discharge and charge the battery at least once every 30 days or after about 20 partial dis-
charges.
4
6

Battery Information
