8. Make sure that the notebook computer's AC/DC adapter is NOT ATTACHED to the computer's DC-In
jack and that the computer is OFF.
9. Ensure that the lock switch on the docking station is in the unlock position.
10. Align the computer with the notebook placeholder
11. Slide the lock switch on the docking station in to the lock position
12. Press the power button
13. The Power LED on the docking station will be
3
3
on the docking station (or power button on the notebook) to turn it on.
4
green
5
4

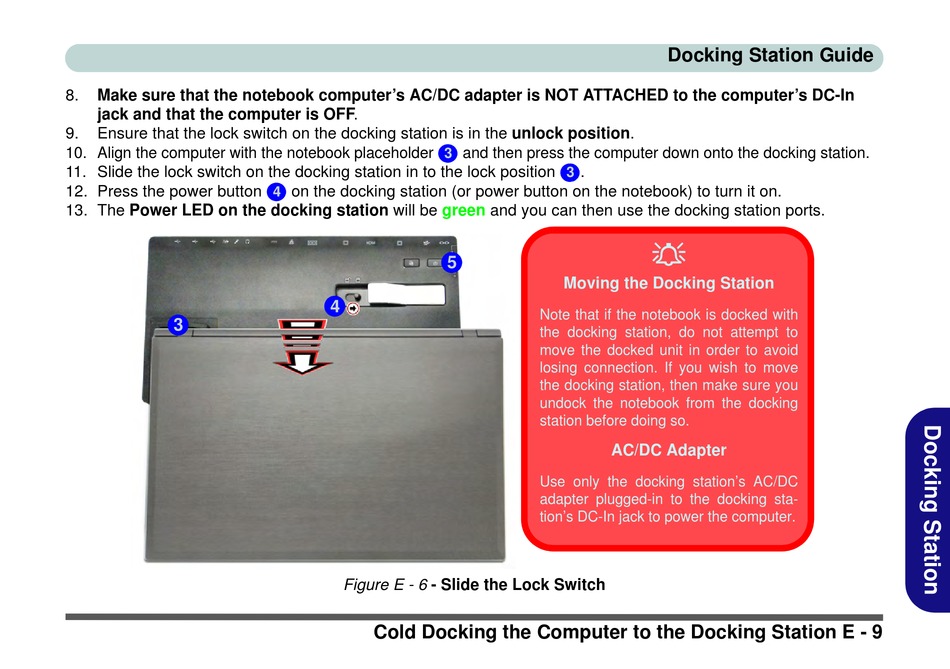

Figure E - 6 - Slide the Lock Switch
Cold Docking the Computer to the Docking Station E - 9
and then press the computer down onto the docking station.
.
3
and you can then use the docking station ports.
Moving the Docking Station
Note that if the notebook is docked with
the docking station, do not attempt to
move the docked unit in order to avoid
losing connection. If you wish to move
the docking station, then make sure you
undock the notebook from the docking
station before doing so.
AC/DC Adapter
Use only the docking station's AC/DC
adapter plugged-in to the docking sta-
tion's DC-In jack to power the computer.
Docking Station Guide

